tcpdump and Linux Network Troubleshooting: Capture Packets and Fix Connection Problems Step by Step

By Ravindra Bagale, trainer LinkedIn Last updated: 25 October 2026

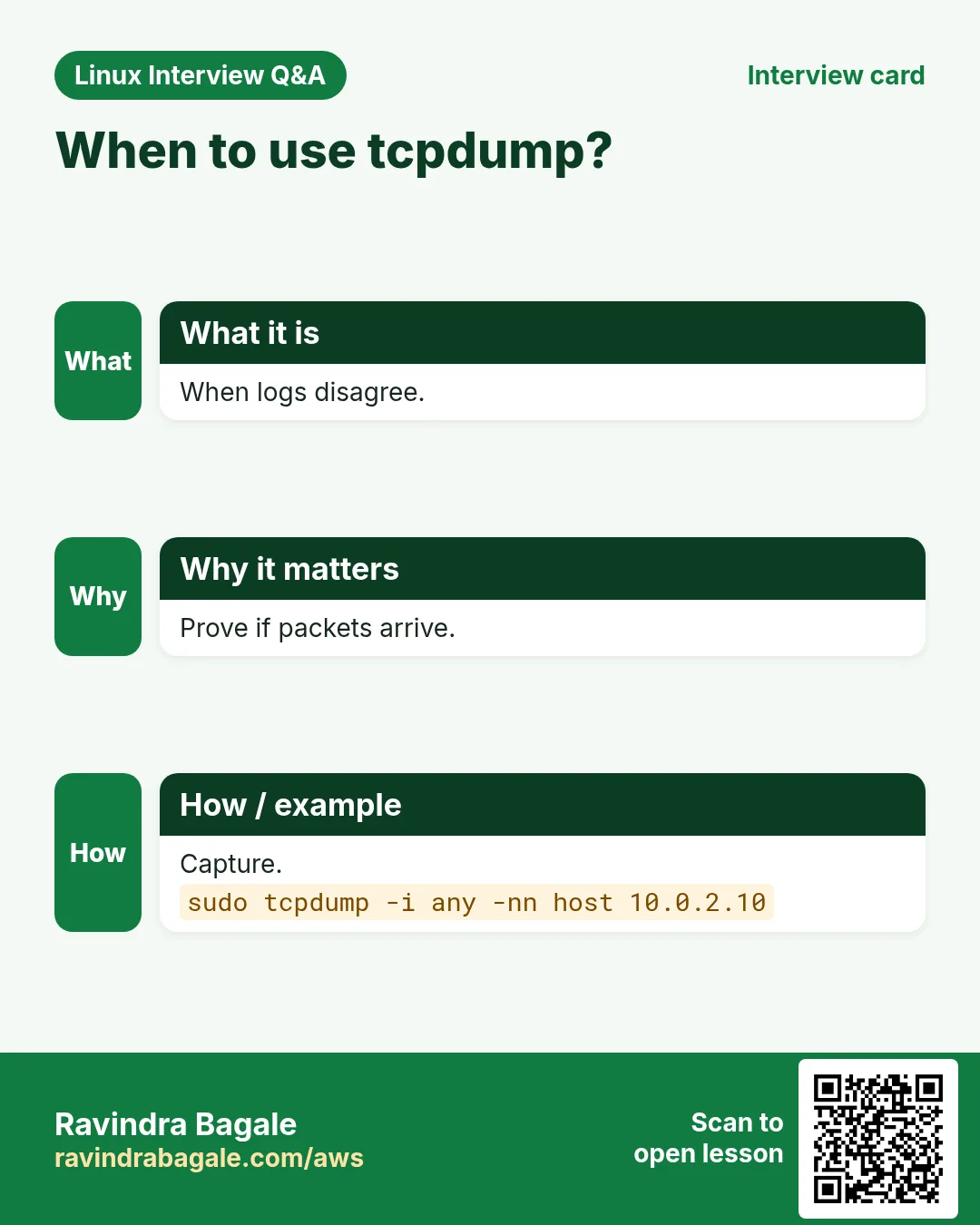

Sometimes every tool says 'fine' but users still see errors. Then you need to see the real packets. tcpdump captures traffic on an interface so you can prove whether a request arrived, whether a reply left, and what went wrong. This chapter covers tcpdump step by step (interfaces, filters, saving to files, reading TCP flags) and then a complete network troubleshooting method that joins it with ip, ss, dig, curl, nc and firewall checks.

What you'll learn in this chapter

Capture packets with tcpdump safely
Write filters by host, port and protocol
Save and read pcap files
Read TCP flags: SYN, ACK, RST, FIN
Check firewalls: firewalld, iptables, nftables
Follow a full troubleshooting method

1. An everyday example: the CCTV at the shop door

Why do we need this?

A customer says 'I came to your shop and nobody served me'. The staff says 'nobody came'. You check the CCTV at the door: did the customer enter? Did staff go to them? Did they leave angry? The video settles it.

What is it?

The door = network interface. CCTV = tcpdump. Customer entering = SYN. Staff greeting = SYN-ACK. Shutter pulled down = RST. The recording you show the owner = a .pcap file.

How to do it (step by step)

SYN with no reply = dropped. SYN then RST = no listener.

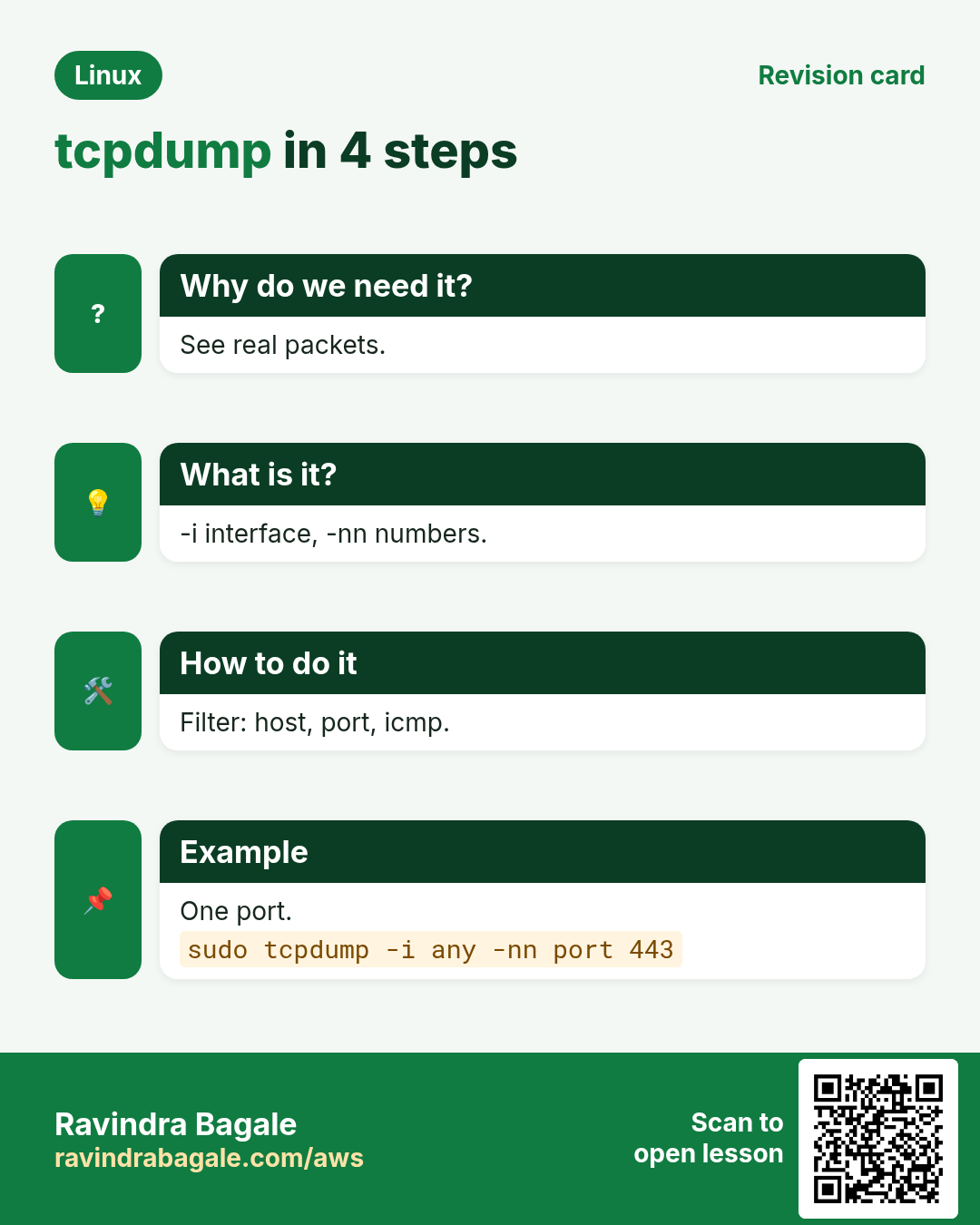

2. tcpdump basics: -i, -n, -c

Why do we need this?

Capturing on the wrong interface, or with name lookups on, gives no output or slow output.

What is it?

Needs root. -D lists interfaces, -i IFACE picks one (any = all), -n no DNS (use -nn for no port names too), -c N stops after N packets, -v/-vv more detail. Always add a filter on busy servers.

How to do it (step by step)

Interfaces.

sudo tcpdump -D

Output:

1.eth0 [Up, Running]
2.any (Pseudo-device that captures on all interfaces)
3.lo [Up, Running, Loopback]

What it means: Pick eth0 or any.

Ten packets.

sudo tcpdump -i eth0 -nn -c 10

Output:

10:01:02.1 IP 10.0.1.25.22 > 203.0.113.9.51514: Flags [P.], length 108
10 packets captured

What it means: Mostly your own SSH.

Not found.

tcpdump -i eth0

Output:

tcpdump: eth0: You don't have permission to capture on that device

What it means: Use sudo.

3. Filters: host, net, port, protocol

Why do we need this?

A busy server sends thousands of packets per second. Filters show only what matters.

What is it?

BPF filters go at the end: host IP, src host / dst host, net 10.0.3.0/24, port 443, portrange 8000-8100, tcp/udp/icmp. Join with and, or, not, and brackets in quotes. Put SSH out with 'not port 22' so you do not capture yourself.

Filter	Meaning
host 10.0.3.40	To or from this IP
src host X	Only from X
port 5432	This port either side
tcp / udp / icmp	Protocol
not port 22	Hide SSH
net 10.0.3.0/24	A subnet

How to do it (step by step)

Database traffic.

sudo tcpdump -i eth0 -nn host 10.0.3.40 and port 5432

Output:

IP 10.0.1.25.40110 > 10.0.3.40.5432: Flags [S]
IP 10.0.3.40.5432 > 10.0.1.25.40110: Flags [S.]

What it means: Handshake ok.

Only pings.

sudo tcpdump -i any -nn icmp

Output:

IP 10.0.1.25 > 8.8.8.8: ICMP echo request
IP 8.8.8.8 > 10.0.1.25: ICMP echo reply

What it means: Request and reply seen.

DNS queries.

sudo tcpdump -i any -nn udp port 53

Output:

IP 10.0.1.25.38211 > 10.0.0.2.53: 4411+ A? shop.example.com.
IP 10.0.0.2.53 > 10.0.1.25.38211: 4411 1/0/0 A 93.184.216.34

What it means: See the question and answer.

Combine.

sudo tcpdump -i eth0 -nn 'tcp and (port 80 or port 443) and not host 10.0.1.5'

Output:

(packets)

What it means: Quotes around brackets.

4. Reading TCP flags in tcpdump output

Why do we need this?

The flags tell you exactly why a connection fails: dropped, refused or reset.

What is it?

[S] SYN, [S.] SYN-ACK, [.] ACK, [P.] data, [F.] FIN, [R] or [R.] reset. Repeated [S] with nothing back = firewall drop or no route. [S] then [R.] = port closed. Data then [R] = app aborted. Filter SYNs only with 'tcp[tcpflags] & tcp-syn != 0'.

Flag	Name	Meaning
[S]	SYN	Start
[S.]	SYN-ACK	Server agrees
[P.]	PUSH-ACK	Data
[F.]	FIN	Polite close
[R.]	RST	Refused/abort

How to do it (step by step)

Dropped by firewall.

sudo tcpdump -i eth0 -nn port 6379

Output:

IP 10.0.1.25.5001 > 10.0.3.41.6379: Flags [S]
IP 10.0.1.25.5001 > 10.0.3.41.6379: Flags [S]
IP 10.0.1.25.5001 > 10.0.3.41.6379: Flags [S]

What it means: Retries, no answer: timeout.

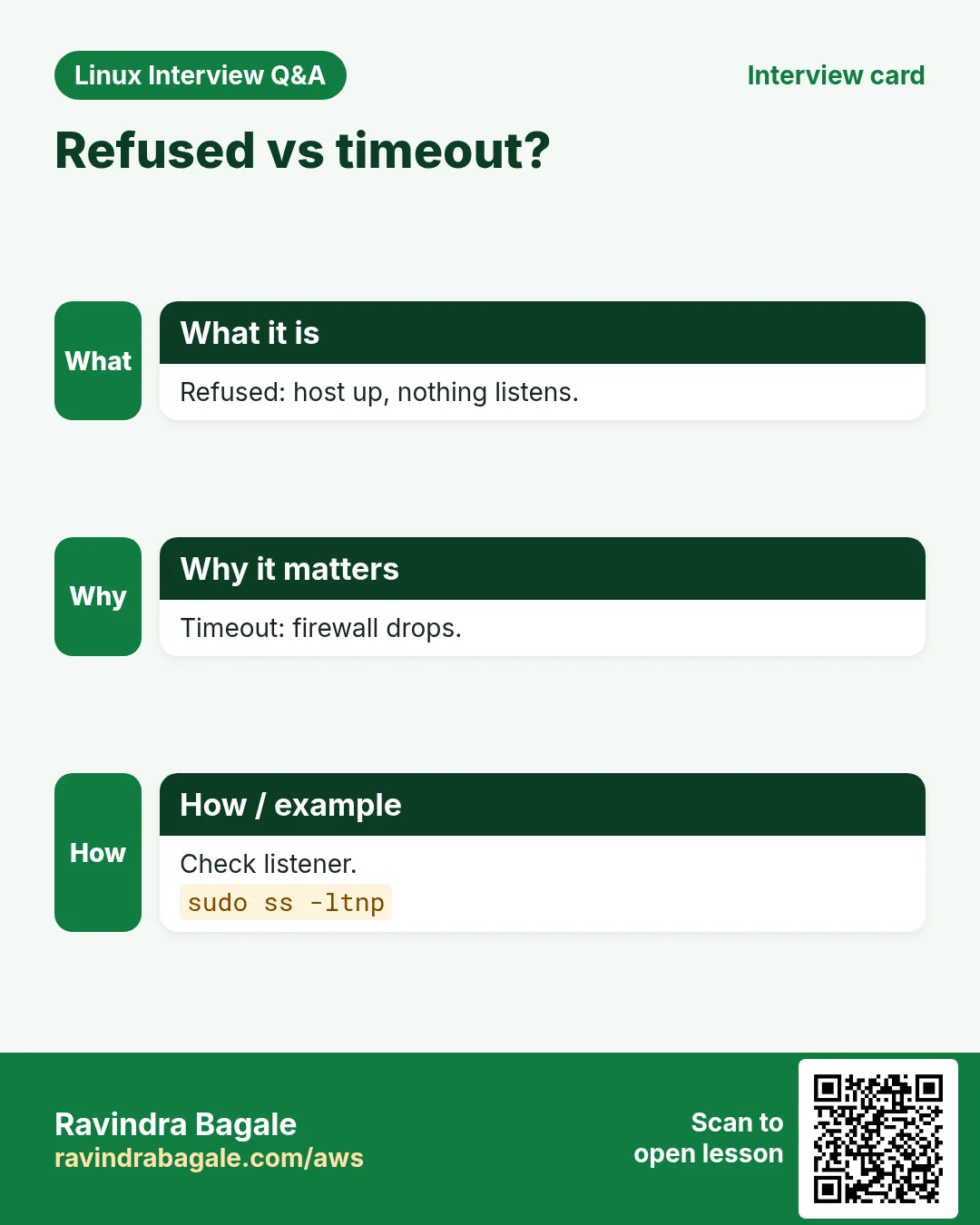

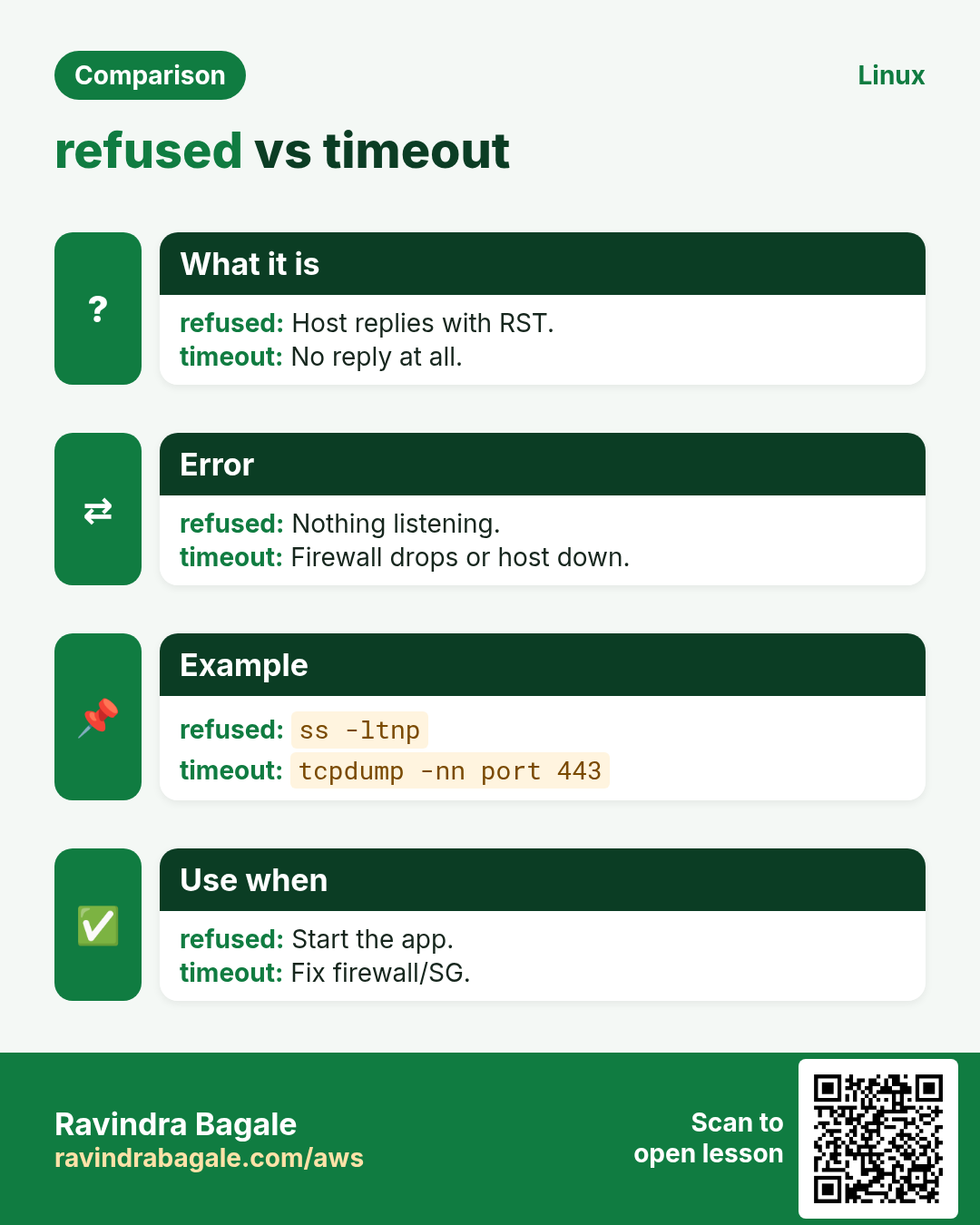

Refused.

sudo tcpdump -i eth0 -nn port 6380

Output:

IP 10.0.1.25.5002 > 10.0.3.41.6380: Flags [S]
IP 10.0.3.41.6380 > 10.0.1.25.5002: Flags [R.]

What it means: Host up, no listener.

Only new connections.

sudo tcpdump -i eth0 -nn 'tcp[tcpflags] & tcp-syn != 0 and tcp[tcpflags] & tcp-ack == 0'

Output:

Flags [S] lines only

What it means: Count connection attempts.

5. -w and -r: save and read pcap files

Why do we need this?

You often need to capture during an incident and analyse later, or send the capture to the network team or Wireshark.

What is it?

-w file.pcap writes raw packets (no screen output). -r file.pcap reads it, and you can add filters while reading. -C 100 -W 5 rotates five 100 MB files. -s 0 full packets (default today). -A prints ASCII payload, -X hex+ASCII.

How to do it (step by step)

Capture to a file.

sudo tcpdump -i eth0 -nn -c 2000 -w /tmp/api.pcap port 443

Output:

tcpdump: listening on eth0
2000 packets captured

What it means: Saved.

Read and filter.

tcpdump -nn -r /tmp/api.pcap 'tcp[tcpflags] & tcp-rst != 0' | head -3

Output:

IP 10.0.1.25.443 > 198.51.100.7.60211: Flags [R.]

What it means: Find resets.

Ring buffer.

sudo tcpdump -i eth0 -nn -C 100 -W 5 -w /var/tmp/ring.pcap port 5432

Output:

(runs until stopped)

What it means: Never fills the disk.

See HTTP text.

sudo tcpdump -i lo -nn -A -c 20 port 8000

Output:

GET /health HTTP/1.1
Host: 127.0.0.1:8000

What it means: Plain HTTP only; HTTPS is encrypted.

6. Firewalls: firewalld

Why do we need this?

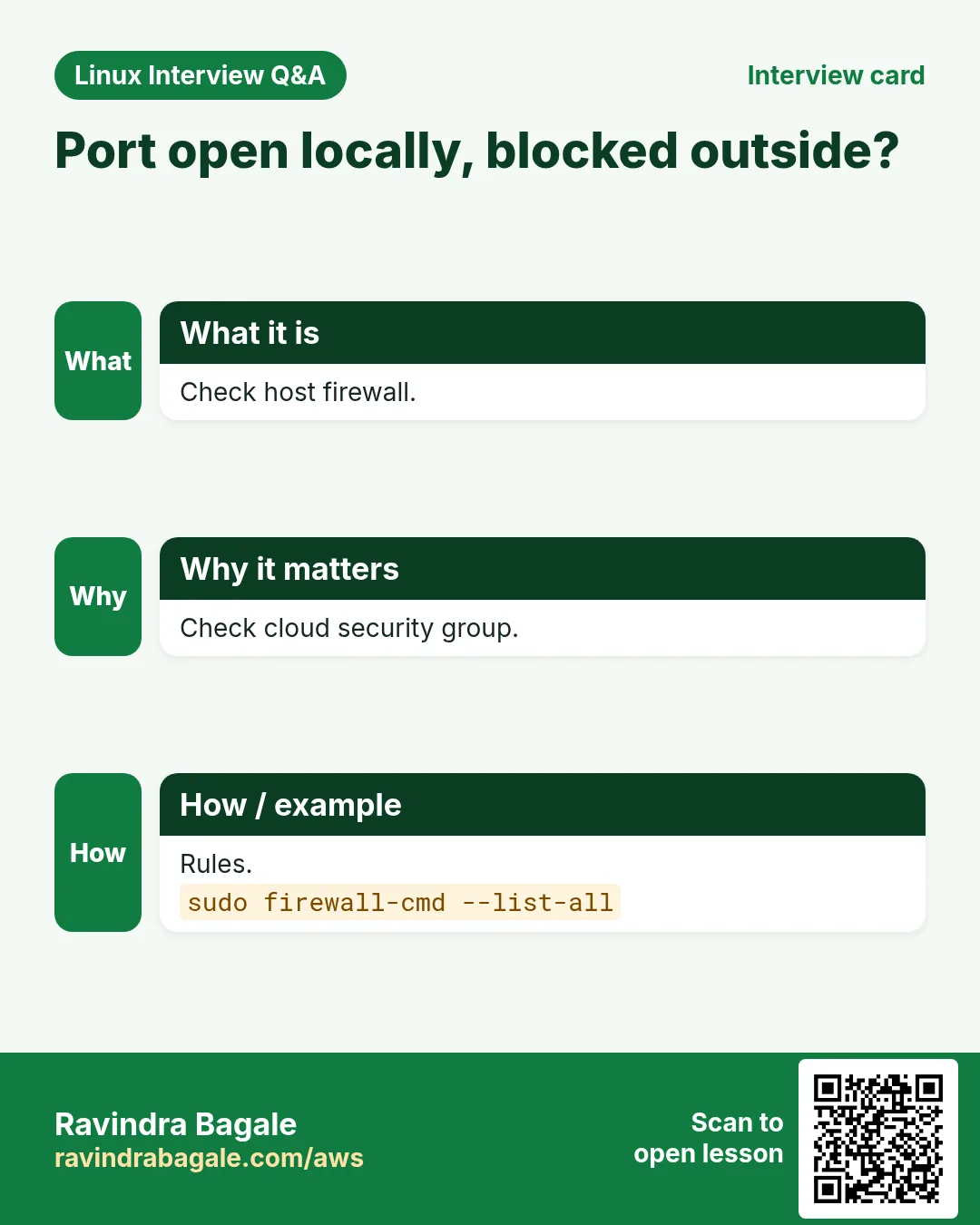

A port can be listening and reachable inside the host, yet blocked by the host firewall.

What is it?

firewall-cmd --state, --list-all shows zone, services and ports. --add-port=8080/tcp --permanent then --reload makes it stick. --add-service=http uses names. Ubuntu often uses ufw (ufw status, ufw allow 8080/tcp).

How to do it (step by step)

What is open?

sudo firewall-cmd --list-all

Output:

public (active)
  services: dhcpv6-client ssh
  ports:

What it means: Only SSH.

Open 8080.

sudo firewall-cmd --add-port=8080/tcp --permanent && sudo firewall-cmd --reload

Output:

success
success

What it means: Now allowed.

ufw.

sudo ufw allow 8080/tcp && sudo ufw status

Output:

8080/tcp ALLOW Anywhere

What it means: Ubuntu way.

7. Firewalls: iptables and nftables

Why do we need this?

Docker, Kubernetes and older servers add raw iptables/nft rules. You must be able to read them.

What is it?

iptables -L -n -v --line-numbers lists rules with counters; watch the counter of a DROP rule rise while you test. nft list ruleset prints everything on newer systems. Counters that go up prove the rule matched.

How to do it (step by step)

List with counters.

sudo iptables -L INPUT -n -v --line-numbers

Output:

num pkts bytes target prot source destination
1   9123 1.1M ACCEPT tcp  0.0.0.0/0 0.0.0.0/0 tcp dpt:22
2   41   2.4K DROP   tcp  0.0.0.0/0 0.0.0.0/0 tcp dpt:6379

What it means: 41 packets dropped on 6379.

nftables.

sudo nft list ruleset | head -8

Output:

table inet filter {
  chain input {
    tcp dport 22 accept

What it means: Newer format.

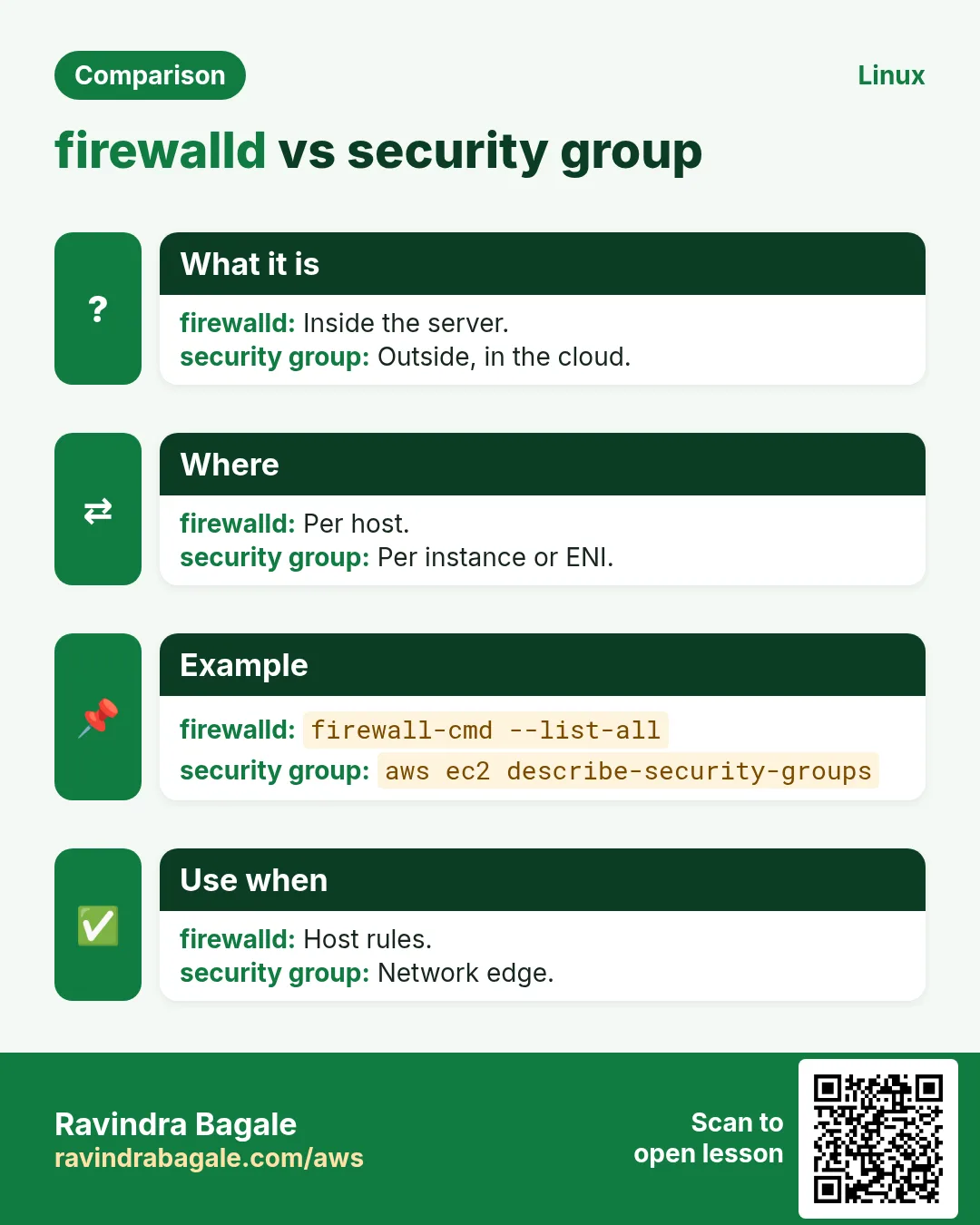

8. Cloud layers: security groups and NACLs

Why do we need this?

In the cloud, packets can be blocked before they reach your server. tcpdump on the server then shows nothing.

What is it?

Rule: if tcpdump on the target sees no SYN, the block is before the host (security group, NACL, route table, on-prem firewall). If it sees SYN and sends SYN-ACK, but the client never gets it, check the return path. VPC flow logs show ACCEPT/REJECT.

How to do it (step by step)

Nothing arrives.

sudo tcpdump -i eth0 -nn port 5432 and host 10.0.1.25

Output:

(no packets while client retries)

What it means: Fix the security group.

Check with the AWS CLI.

aws ec2 describe-security-groups --group-ids sg-0abc --query 'SecurityGroups[0].IpPermissions[].FromPort'

Output:

[22, 443]

What it means: 5432 not allowed.

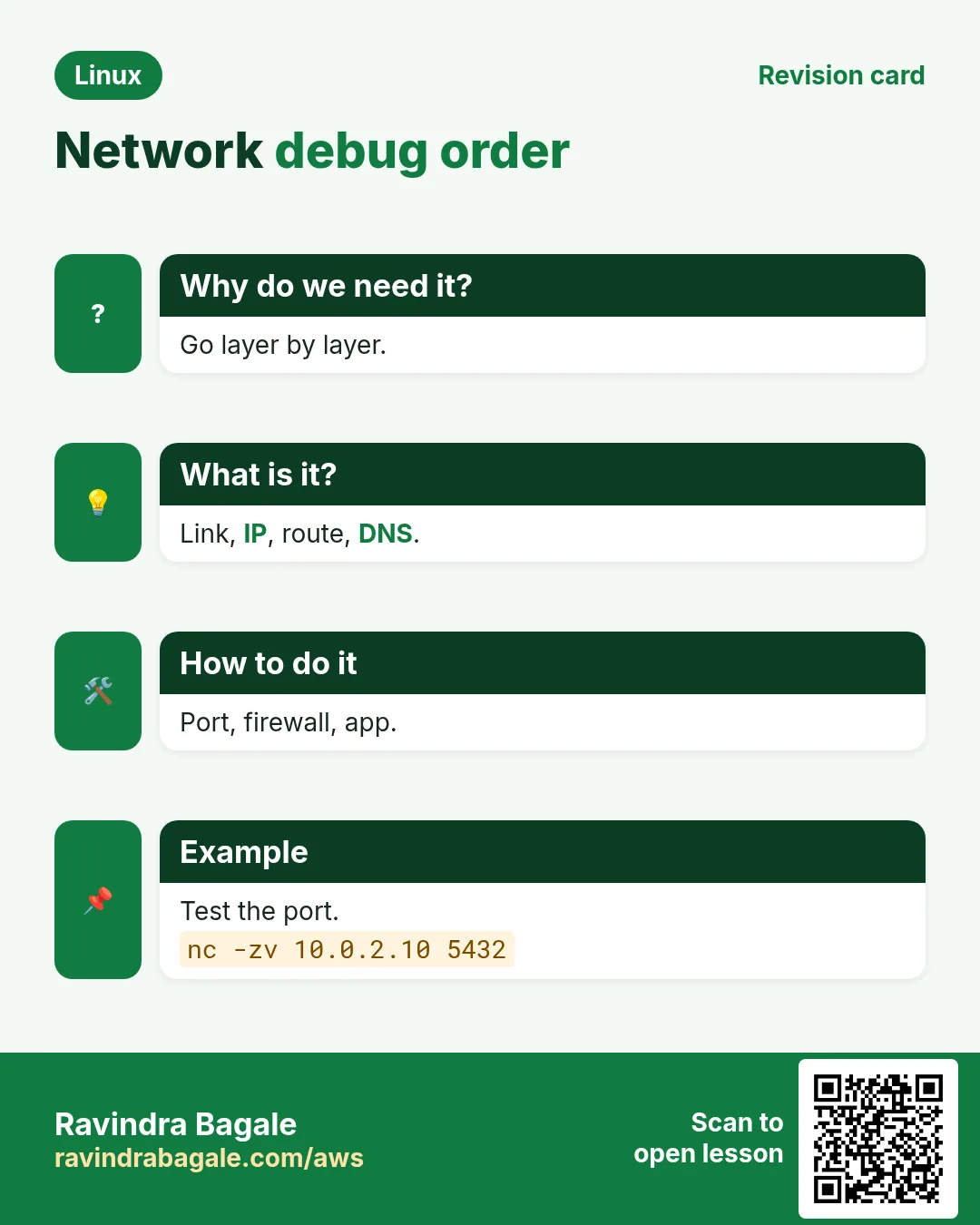

9. The full troubleshooting method

Why do we need this?

A written method keeps you calm and gives clear evidence to other teams.

What is it?

1 Define: who cannot reach what, since when. 2 Client: IP, route, DNS (getent, dig). 3 Path: mtr. 4 Port: nc -zv. 5 Server: ss -tulpn, app logs. 6 Firewall: host and cloud. 7 Packets: tcpdump on both ends at the same time. 8 Fix, then retest and write it down.

How to do it (step by step)

Client side summary.

getent hosts db.internal; nc -zv -w 3 db.internal 5432

Output:

10.0.3.40 db.internal
Ncat: TIMEOUT.

What it means: Name fine, port times out.

Server side.

sudo ss -ltnp | grep 5432; sudo tcpdump -i eth0 -nn -c 5 port 5432

Output:

LISTEN 0.0.0.0:5432
(no packets)

What it means: Listening, but nothing arrives: cloud firewall.

After the fix.

nc -zv -w 3 db.internal 5432

Output:

Ncat: Connected to 10.0.3.40:5432.

What it means: Proved.

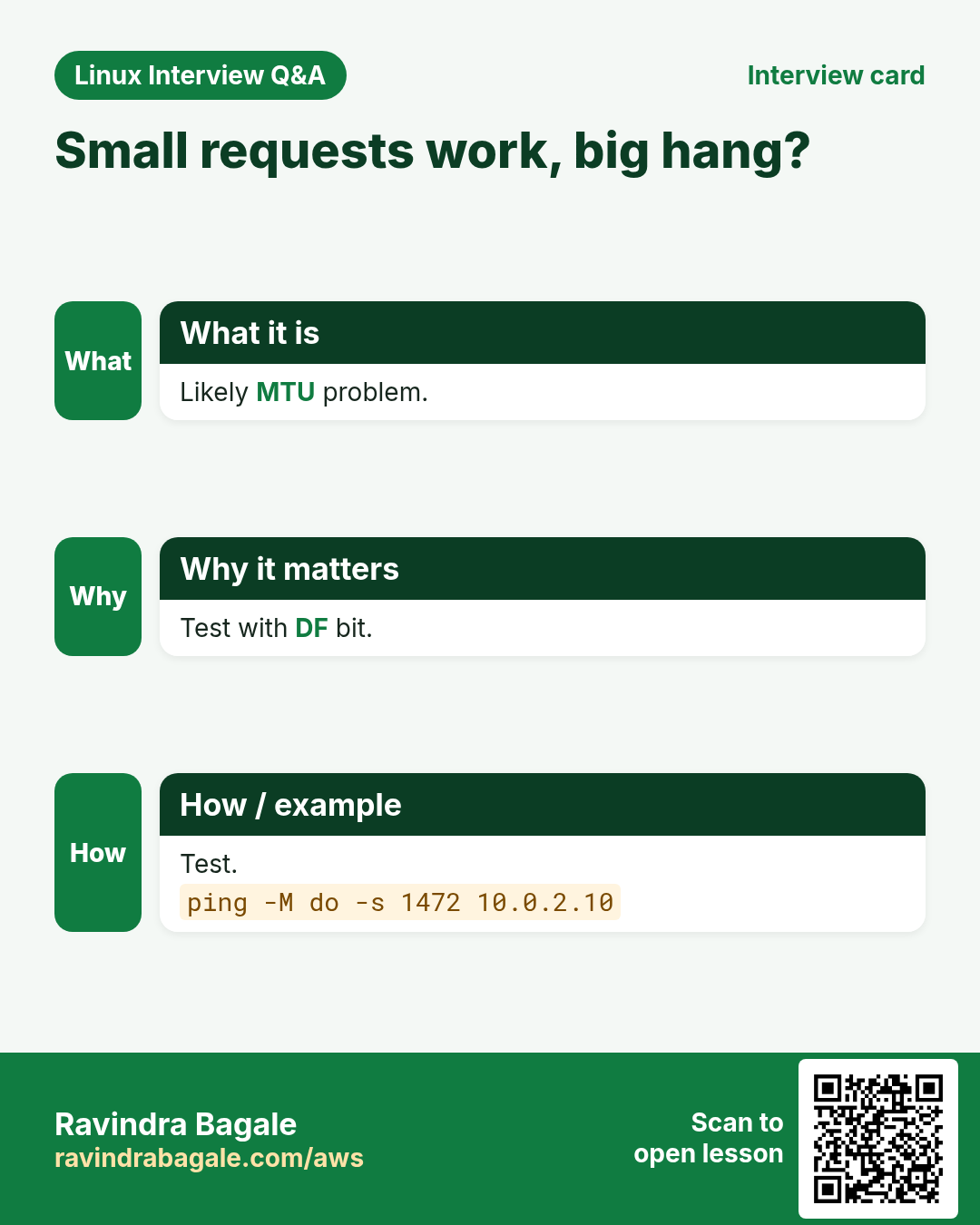

10. MTU and slow-but-working problems

Why do we need this?

Small requests work, large uploads hang. This is often an MTU problem over VPNs or tunnels.

What is it?

ping -M do -s 1472 HOST sends a 1500-byte packet that must not be fragmented. If it fails but -s 1372 works, the path MTU is lower. Fix by lowering interface MTU (ip link set eth0 mtu 1400) or MSS clamping on the router.

How to do it (step by step)

Full size fails.

ping -c2 -M do -s 1472 10.8.0.20

Output:

ping: local error: message too long, mtu=1400

What it means: Path MTU 1400.

Smaller works.

ping -c2 -M do -s 1372 10.8.0.20

Output:

2 received

What it means: Confirmed.

Lower MTU.

sudo ip link set eth0 mtu 1400

Output:

(no output)

What it means: Temporary; set it permanently in the network config.

11. Reading logs during network issues

Why do we need this?

The kernel and services log drops, resets and timeouts that point to the cause.

What is it?

journalctl -k shows kernel messages (link down, conntrack table full). journalctl -u nginx --since '10 min ago' for app side. dmesg -T | grep -i eth for driver issues. nstat or ss -s for retransmits.

How to do it (step by step)

conntrack full.

journalctl -k --since '1 hour ago' | grep -i conntrack

Output:

nf_conntrack: table full, dropping packet

What it means: Raise nf_conntrack_max.

Link flapping.

dmesg -T | grep -i 'link is'

Output:

eth0: Link is Down
eth0: Link is Up

What it means: Cable or NIC issue.

Retransmits.

nstat -az TcpRetransSegs

Output:

TcpRetransSegs 18822

What it means: Rising fast = packet loss.

12. Real examples from many industries

Why do we need this?

The same Linux skill shows up in every kind of company. Seeing it in many places helps you remember it.

What is it?

Each row is a made-up team. It shows who uses this and how.

How to do it (step by step)

Team and city	How they use it	Command
Shruti, payments, Pune	Captures both ends during incidents	`sudo tcpdump -i eth0 -nn -w /tmp/pay.pcap port 443`
Tom, SaaS, Dublin	Ring buffers on API servers	`tcpdump -C 100 -W 5 -w ring.pcap`
Mei, e-sports, Shanghai	Finds MTU issues on VPN links	`ping -M do -s 1472 HOST`
Joseph, NGO, Kampala	Reads iptables counters	`iptables -L -n -v`
Ana, airline, Madrid	Checks conntrack messages	`journalctl -k \| grep conntrack`
Rahul, college lab, Aurangabad	Teaches TCP flags with tcpdump	`tcpdump -nn port 8000`

13. Common errors and how to fix them

Why do we need this?

Everyone hits these errors. Knowing the cause saves hours.

What is it?

Read the exact message first. Then match it to a row below.

How to do it (step by step)

Error you see	Why it happens	How to fix
`tcpdump: permission denied`	Not root	Use sudo. `sudo tcpdump -D`
`tcpdump: eth0: No such device exists`	Wrong interface name	List interfaces. `sudo tcpdump -D`
`0 packets captured`	Wrong interface or filter, or traffic blocked earlier	Try -i any and a wider filter. `sudo tcpdump -i any -nn host IP`
`syntax error in filter expression`	Brackets not quoted or typo	Quote the whole filter. `sudo tcpdump -nn 'port 80 or port 443'`
`Flags [S] repeated, no reply`	Dropped by firewall or no route	Check firewall layers. `sudo firewall-cmd --list-all`
`Flags [R.] after SYN`	Port closed	Start service or fix port. `sudo ss -ltnp`
`nf_conntrack: table full, dropping packet`	Too many tracked connections	Raise limit and find the cause. `sudo sysctl net.netfilter.nf_conntrack_max`
`ping: local error: message too long`	Packet bigger than MTU with DF set	Find path MTU. `tracepath HOST`
`No space left on device (pcap)`	Capture filled the disk	Use -c or -C/-W ring buffer. `sudo tcpdump -C 100 -W 5 -w ring.pcap`
`FirewallD is not running`	firewalld stopped (maybe iptables/nft used)	Check which firewall is active. `sudo nft list ruleset \| head`

14. Troubleshooting step by step

Why do we need this?

Prove it with packets on both ends.

What is it?

Go top to bottom. Stop at the first step that shows the problem.

How to do it (step by step)

Client port test.

nc -zv -w 3 HOST PORT

Server listening?

sudo ss -ltnp

SYN arriving?

sudo tcpdump -i eth0 -nn -c 5 port PORT

Host firewall.

sudo firewall-cmd --list-all

Kernel drops.

journalctl -k -n 50

MTU.

ping -M do -s 1472 HOST

15. Lab 1: See a handshake and a refusal

Why do we need this?

Capture on lo while connecting to an open and a closed port.

What is it?

A full hands-on lab. Run every step on a test Linux machine (an EC2 instance, a VM, or WSL).

How to do it (step by step)

Start a server.

python3 -m http.server 8000 --bind 127.0.0.1 &

Output:

Serving HTTP

Start capture.

sudo tcpdump -i lo -nn 'port 8000 or port 8009'

Output:

listening on lo

Open port.

curl -s -o /dev/null http://127.0.0.1:8000/

Output:

Flags [S], [S.], [.], [P.] ...

Closed port.

curl http://127.0.0.1:8009/

Output:

Flags [S] then [R.]

Stop.

Ctrl+C

Output:

N packets captured

16. Lab 2: Save, read and filter a capture

Why do we need this?

Save DNS traffic and read only the answers.

What is it?

A full hands-on lab. Run every step on a test Linux machine (an EC2 instance, a VM, or WSL).

How to do it (step by step)

Capture in background.

sudo tcpdump -i any -nn -c 20 -w /tmp/dns.pcap udp port 53 &

Output:

listening

Make queries.

for n in example.com github.com; do dig +short $n; done

Output:

93.184.216.34 ...

Read.

tcpdump -nn -r /tmp/dns.pcap

Output:

A? example.com. ... A 93.184.216.34

Only replies.

tcpdump -nn -r /tmp/dns.pcap 'src port 53'

Output:

... 1/0/0 A ...

Clean up.

sudo rm /tmp/dns.pcap

Output:

(no output)

Ravindra Bagale's Tip

Run tcpdump on both the client and the server at the same time. If the client sends SYN and the server never sees it, the problem is in between (firewall, security group, route). If the server sees it and answers, look at the return path. This one test ends most blame games.

17. Frequently asked questions

Q. Is tcpdump safe on production?

Yes with filters, -c or ring buffers; avoid capturing everything.

Q. Can I see HTTPS content?

No, it is encrypted; you see IPs, ports, sizes and TLS handshake.

Q. tcpdump vs Wireshark?

tcpdump captures on servers; open the pcap in Wireshark for a GUI.

Q. What is -nn?

No host and no port name lookups.

Q. Why -i any?

When you are not sure which interface carries the traffic.

Q. Captures contain secrets?

They may (tokens in plain HTTP). Protect and delete pcaps.

Q. Which firewall am I using?

Check firewalld state, ufw status, or nft list ruleset.

Q. RST vs timeout?

RST is an active 'no'; timeout is silence (drop).

18. Interview questions and answers

Beginner level

Q. Capture 10 packets on eth0?

sudo tcpdump -i eth0 -c 10.

Q. Filter port 443?

tcpdump port 443.

Q. Save to a file?

tcpdump -w file.pcap.

Q. List open firewall ports?

firewall-cmd --list-all.

Mid level level

Q. SYN with no reply means?

Packets dropped: firewall or route.

Q. Read only resets from a pcap?

tcpdump -r f.pcap 'tcp[tcpflags] & tcp-rst != 0'.

Q. Open 8080 permanently in firewalld?

--add-port=8080/tcp --permanent then --reload.

Q. Avoid filling disk with captures?

-C and -W ring buffer.

Senior level

Q. Intermittent timeouts to an API: plan?

mtr reports, tcpdump ring buffer both ends, retransmit counters, conntrack, correlate times.

Q. Large uploads hang over VPN?

MTU/MSS issue; test with ping -M do and fix MTU or clamp MSS.

Q. Server sees SYN and sends SYN-ACK, client times out?

Return path: asymmetric routing, NACL egress, or reverse firewall.

Q. How to share a capture safely?

Filter to needed traffic, trim, check for secrets, use secure transfer.

Try at home

Capture your own ping and curl traffic, save it, and explain every flag you see.
Write your own 8-step troubleshooting checklist with one command per step.

Practice Tasks

About this scenario

Amravati Agro Market is a agriculture business in Amravati. Anjali Thakre looks after its IT and cloud work. They count money in INR and run their AWS resources in the ap-south-1 Region. In the tasks below you do real jobs for them using what this lesson teaches. All names, account IDs, IP addresses and numbers are made up for practice.

0 / 17
