AWS SDK KMS Examples: Encrypt, Decrypt, Data Keys and Envelope Encryption (Python, PHP, Node.js)

By , trainer LinkedIn Last updated:

KMS holds encryption keys that never leave AWS. From Python, PHP and Node.js we create a key and alias, encrypt and decrypt a small value, bind it with an encryption context, use data keys for envelope encryption of big files, and sign and verify a document. The example: a health-records startup with Hannah in Berlin and Kabir in Ahmedabad.

What you'll learn in this chapter

  • Create a key and alias
  • Encrypt and decrypt
  • Use encryption context
  • Envelope encryption with data keys
  • Sign and verify

1. The big picture: the bank locker

Why do we need this?

The bank never gives you its master key. You hand your box to the clerk, who locks it with the master key in the vault and gives it back. To open it, you ask again, and the bank logs every request. KMS is that vault.

What is it?

Encrypt works on up to 4 KB. For bigger data, GenerateDataKey returns a plaintext key (use it locally, then forget it) and the same key encrypted (store it next to the data). That is envelope encryption.

How to do it (step by step)

Envelope encryptionGenerateDataKey (AES-256)Encrypt file locally with plaintext keyStore file + encrypted keyLater: Decrypt the encrypted keyDecrypt file locally
Every KMS call is logged in CloudTrail, so you know who decrypted what.

2. Create a key and alias

Why do we need this?

Hannah needs one key for patient notes in Frankfurt; code should use a friendly name, not a UUID.

What is it?

CreateKey makes a symmetric key by default; CreateAlias names it alias/....

How to do it (step by step)

  1. Python.
import boto3
kms = boto3.client("kms", region_name="eu-central-1")
k = kms.create_key(Description="patient notes", Tags=[{"TagKey": "app", "TagValue": "health"}])["KeyMetadata"]
kms.create_alias(AliasName="alias/patient-notes", TargetKeyId=k["KeyId"])
kms.enable_key_rotation(KeyId=k["KeyId"])
print(k["KeyId"], k["KeySpec"])

Expected output:

1234abcd-12ab-34cd-56ef-1234567890ab SYMMETRIC_DEFAULT
  1. Node.js: describe by alias.
import { KMSClient, DescribeKeyCommand } from "@aws-sdk/client-kms";
const kms = new KMSClient({ region: "eu-central-1" });
const { KeyMetadata: m } = await kms.send(new DescribeKeyCommand({ KeyId: "alias/patient-notes" }));
console.log(m.KeyState, m.KeyUsage);

Expected output:

Enabled ENCRYPT_DECRYPT
  1. PHP: list aliases.
<?php
require "vendor/autoload.php";
$kms = new Aws\Kms\KmsClient(["region" => "eu-central-1"]);
foreach ($kms->listAliases()["Aliases"] as $a)
    if (!str_starts_with($a["AliasName"], "alias/aws/")) echo $a["AliasName"], PHP_EOL;

Expected output:

alias/patient-notes
  1. Verify: rotation is on.
aws kms get-key-rotation-status --key-id alias/patient-notes --region eu-central-1 --query KeyRotationEnabled

Expected output:

true

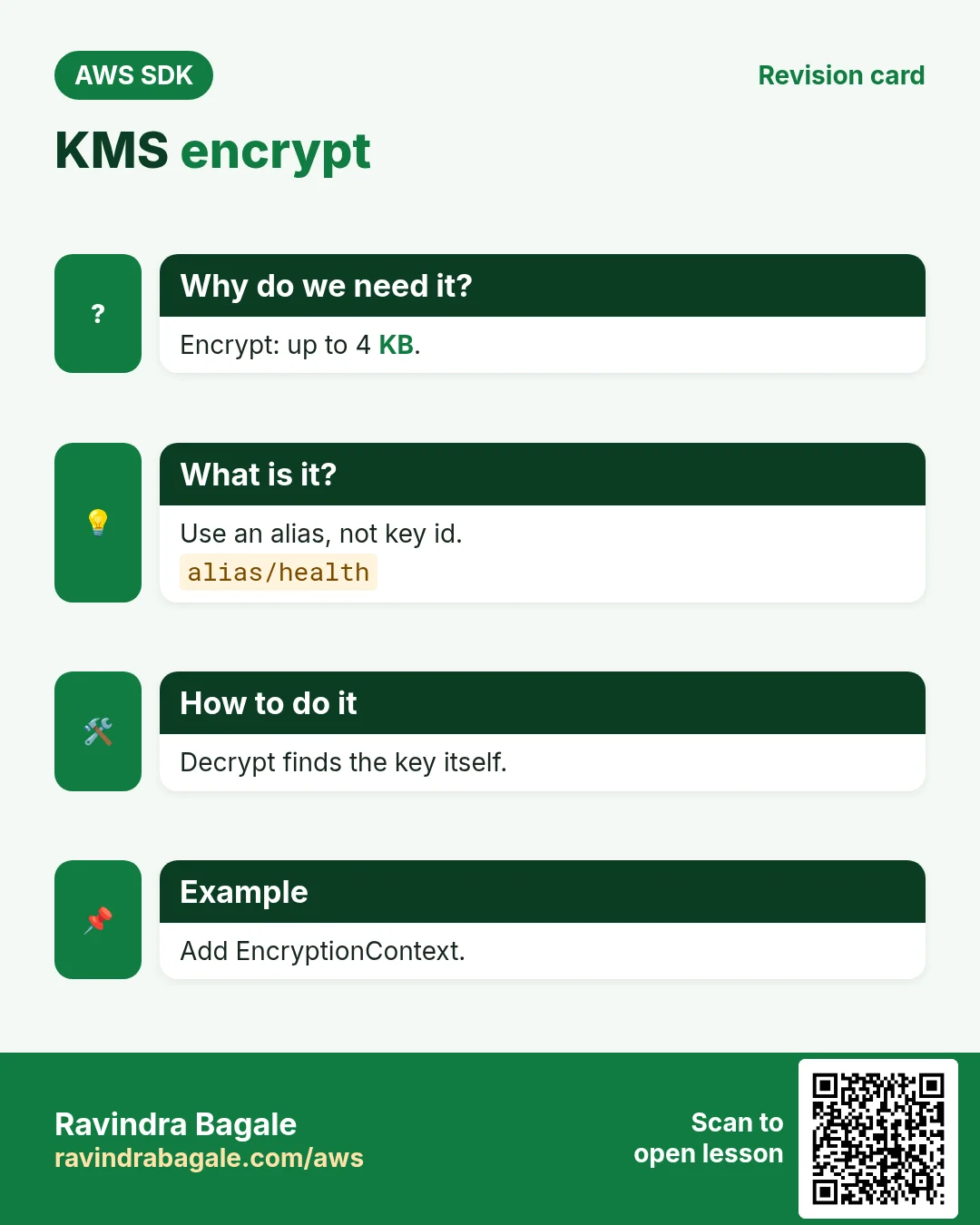

3. Encrypt and decrypt with context

Why do we need this?

Kabir stores an Aadhaar-like ID and a €/₹ insurance number per patient; each must only decrypt for its own patient.

What is it?

EncryptionContext is a key-value map bound to the ciphertext. Decrypt fails unless the same map is passed. It is not secret, and it shows in CloudTrail.

How to do it (step by step)

  1. Python: encrypt.
import base64
ct = kms.encrypt(KeyId="alias/patient-notes", Plaintext=b"INS-DE-889012",
    EncryptionContext={"patient": "P-1001"})["CiphertextBlob"]
print(base64.b64encode(ct)[:24].decode(), len(ct), "bytes")

Expected output:

AQICAHh7k2Jd5n9mVqL1pZ3a 184 bytes
  1. Node.js: decrypt with the same context.
import { DecryptCommand } from "@aws-sdk/client-kms";
const r = await kms.send(new DecryptCommand({ CiphertextBlob: Buffer.from(b64, "base64"),
  EncryptionContext: { patient: "P-1001" } }));
console.log(new TextDecoder().decode(r.Plaintext));

Expected output:

INS-DE-889012

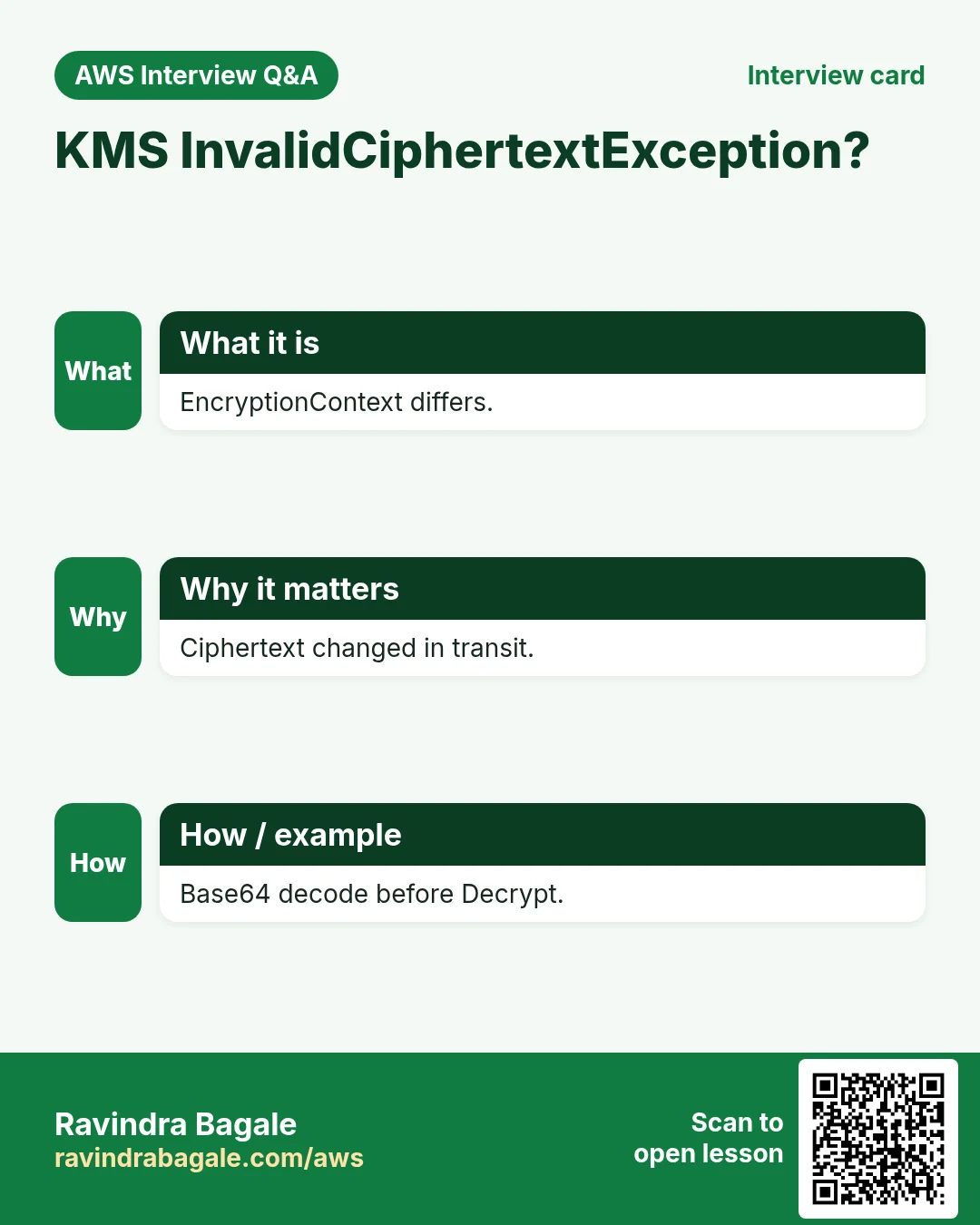

  1. PHP: wrong context fails.
<?php
try { $kms->decrypt(["CiphertextBlob" => base64_decode($b64), "EncryptionContext" => ["patient" => "P-2002"]]); }
catch (Aws\Kms\Exception\KmsException $e) { echo $e->getAwsErrorCode(), PHP_EOL; }

Expected output:

InvalidCiphertextException
  1. Verify: CloudTrail shows the decrypt.
aws cloudtrail lookup-events --lookup-attributes AttributeKey=EventName,AttributeValue=Decrypt --max-results 1 --region eu-central-1 --query "Events[0].EventName" --output text

Expected output:

Decrypt

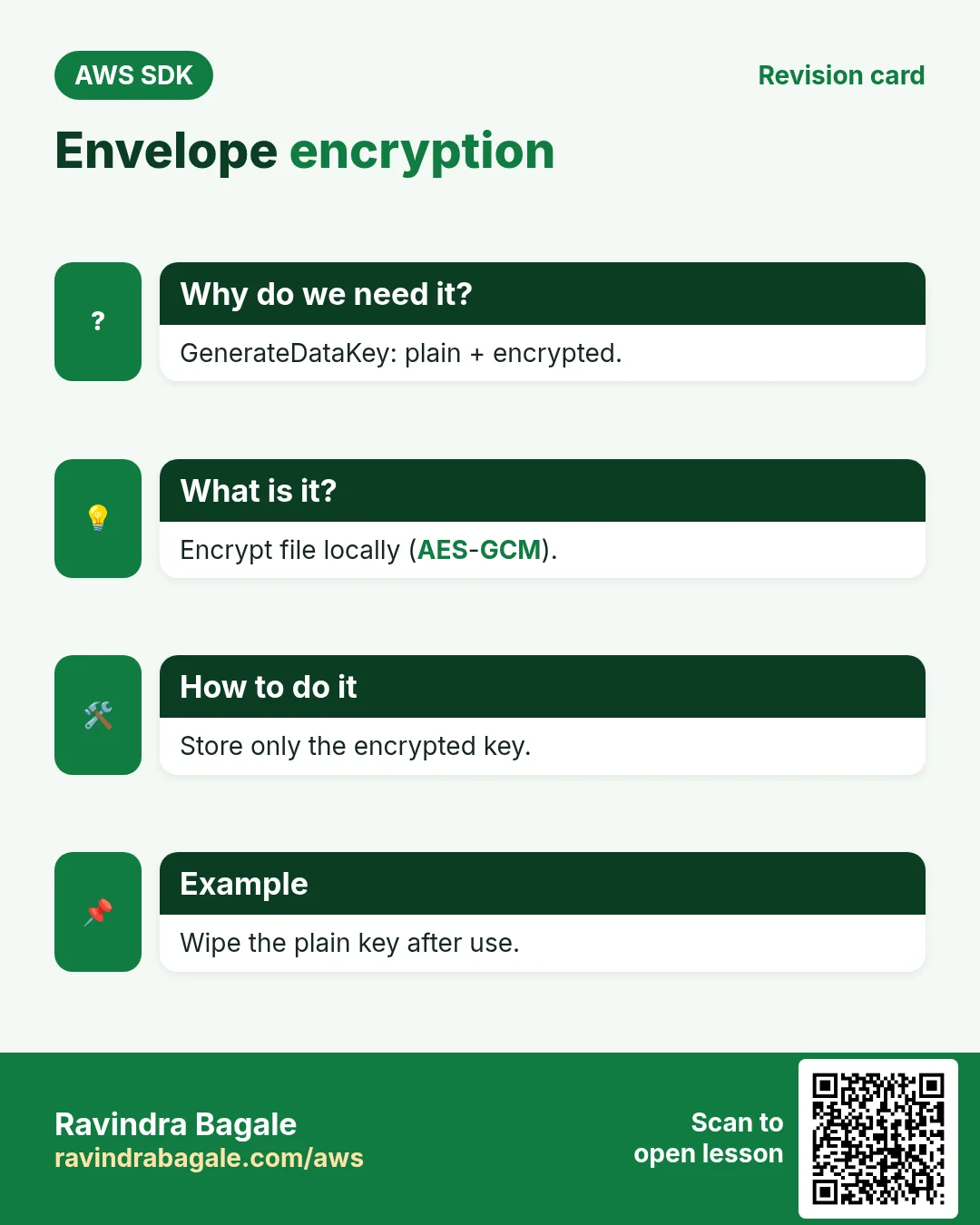

4. Envelope encryption for files

Why do we need this?

A 20 MB MRI report from Lyon is too big for Encrypt (4 KB limit).

What is it?

GenerateDataKey returns Plaintext and CiphertextBlob. Encrypt locally with AES-GCM, store the encrypted key next to the file, throw the plaintext key away. The AWS Encryption SDK does all of this for you.

How to do it (step by step)

  1. Python with cryptography.
import os
from cryptography.hazmat.primitives.ciphers.aead import AESGCM
dk = kms.generate_data_key(KeyId="alias/patient-notes", KeySpec="AES_256")
nonce = os.urandom(12)
enc = AESGCM(dk["Plaintext"]).encrypt(nonce, open("mri.pdf", "rb").read(), None)
open("mri.pdf.enc", "wb").write(nonce + enc); open("mri.pdf.key", "wb").write(dk["CiphertextBlob"])
del dk
print("encrypted", len(enc))

Expected output:

encrypted 20971536
  1. Node.js: decrypt the file.
import { readFileSync, writeFileSync } from "node:fs";
import { createDecipheriv } from "node:crypto";
const { Plaintext } = await kms.send(new DecryptCommand({ CiphertextBlob: readFileSync("mri.pdf.key") }));
const buf = readFileSync("mri.pdf.enc"), iv = buf.subarray(0, 12), tag = buf.subarray(-16), data = buf.subarray(12, -16);
const d = createDecipheriv("aes-256-gcm", Buffer.from(Plaintext), iv); d.setAuthTag(tag);
writeFileSync("mri.out.pdf", Buffer.concat([d.update(data), d.final()]));
console.log("decrypted");

Expected output:

decrypted
  1. PHP with sodium/openssl.
<?php
$dk = $kms->generateDataKey(["KeyId" => "alias/patient-notes", "KeySpec" => "AES_256"]);
$iv = random_bytes(12);
$enc = openssl_encrypt(file_get_contents("scan.pdf"), "aes-256-gcm", $dk["Plaintext"], OPENSSL_RAW_DATA, $iv, $tag);
file_put_contents("scan.pdf.enc", $iv . $enc . $tag);
file_put_contents("scan.pdf.key", $dk["CiphertextBlob"]);
echo "ok ", strlen($enc), PHP_EOL;

Expected output:

ok 1048576
  1. Verify: files match.
sha256sum mri.pdf mri.out.pdf | awk '{print $1}' | uniq | wc -l

Expected output:

1

5. Sign and verify

Why do we need this?

Prescriptions sent from Ahmedabad to a pharmacy in Toronto must prove they were not changed.

What is it?

Create an asymmetric key with KeyUsage SIGN_VERIFY. Sign a SHA-256 digest; anyone with the public key can verify, or call Verify.

How to do it (step by step)

  1. Python: create and sign.
import hashlib
sk = kms.create_key(KeySpec="ECC_NIST_P256", KeyUsage="SIGN_VERIFY")["KeyMetadata"]["KeyId"]
digest = hashlib.sha256(b"Rx-5521: Amoxicillin 500mg x 10").digest()
sig = kms.sign(KeyId=sk, Message=digest, MessageType="DIGEST", SigningAlgorithm="ECDSA_SHA_256")["Signature"]
print(len(sig), "byte signature")

Expected output:

71 byte signature
  1. Node.js: verify.
import { VerifyCommand } from "@aws-sdk/client-kms";
const r = await kms.send(new VerifyCommand({ KeyId: sk, Message: digest, MessageType: "DIGEST",
  Signature: sig, SigningAlgorithm: "ECDSA_SHA_256" }));
console.log(r.SignatureValid);

Expected output:

true
  1. PHP: export the public key for the pharmacy.
<?php
$pub = $kms->getPublicKey(["KeyId" => $sk])["PublicKey"];
$pem = "-----BEGIN PUBLIC KEY-----\n" . chunk_split(base64_encode($pub), 64) . "-----END PUBLIC KEY-----\n";
file_put_contents("rx-pub.pem", $pem);
echo openssl_verify("Rx-5521: Amoxicillin 500mg x 10", $sig, $pem, OPENSSL_ALGO_SHA256), PHP_EOL;

Expected output:

1
  1. Verify offline with openssl.
printf "Rx-5521: Amoxicillin 500mg x 10" | openssl dgst -sha256 -verify rx-pub.pem -signature rx.sig

Expected output:

Verified OK

6. The same call in Java, Go, .NET and the CLI

Why do we need this?

Teams often mix languages. Once you know the call in Python, PHP and Node.js, the other SDKs are the same API with different syntax.

What is it?

All of them call the Encrypt API. Use the CLI line to test it quickly from a terminal.

How to do it (step by step)

StackCode
AWS CLIaws kms encrypt --key-id alias/patient-notes --plaintext fileb://note.txt --encryption-context patient=P-1001 --query CiphertextBlob --output text
Java v2SdkBytes ct = kms.encrypt(b -> b.keyId("alias/patient-notes").plaintext(SdkBytes.fromUtf8String("x"))).ciphertextBlob();
Go v2out, _ := client.Encrypt(ctx, &kms.EncryptInput{KeyId: aws.String("alias/patient-notes"), Plaintext: []byte("x")})
.NETvar r = await kms.EncryptAsync(new EncryptRequest { KeyId = "alias/patient-notes", Plaintext = new MemoryStream(bytes) });

7. Clean up so nothing keeps costing

Why do we need this?

Lab resources left running cost money and can be a security risk.

What is it?

Delete in reverse order: children first, then parents.

How to do it (step by step)

  1. Schedule key deletion (7–30 days waiting period).
aws kms delete-alias --alias-name alias/patient-notes --region eu-central-1
aws kms schedule-key-deletion --key-id $KEY_ID --pending-window-in-days 7 --region eu-central-1

Expected output:

(no output means success)

Ravindra Bagale's Tip

Deleting a KMS key makes all data encrypted with it unreadable forever. Disable it first and wait a week before scheduling deletion.

8. Interview questions and answers

Q. Max plaintext for Encrypt?

4 KB; use data keys for more.

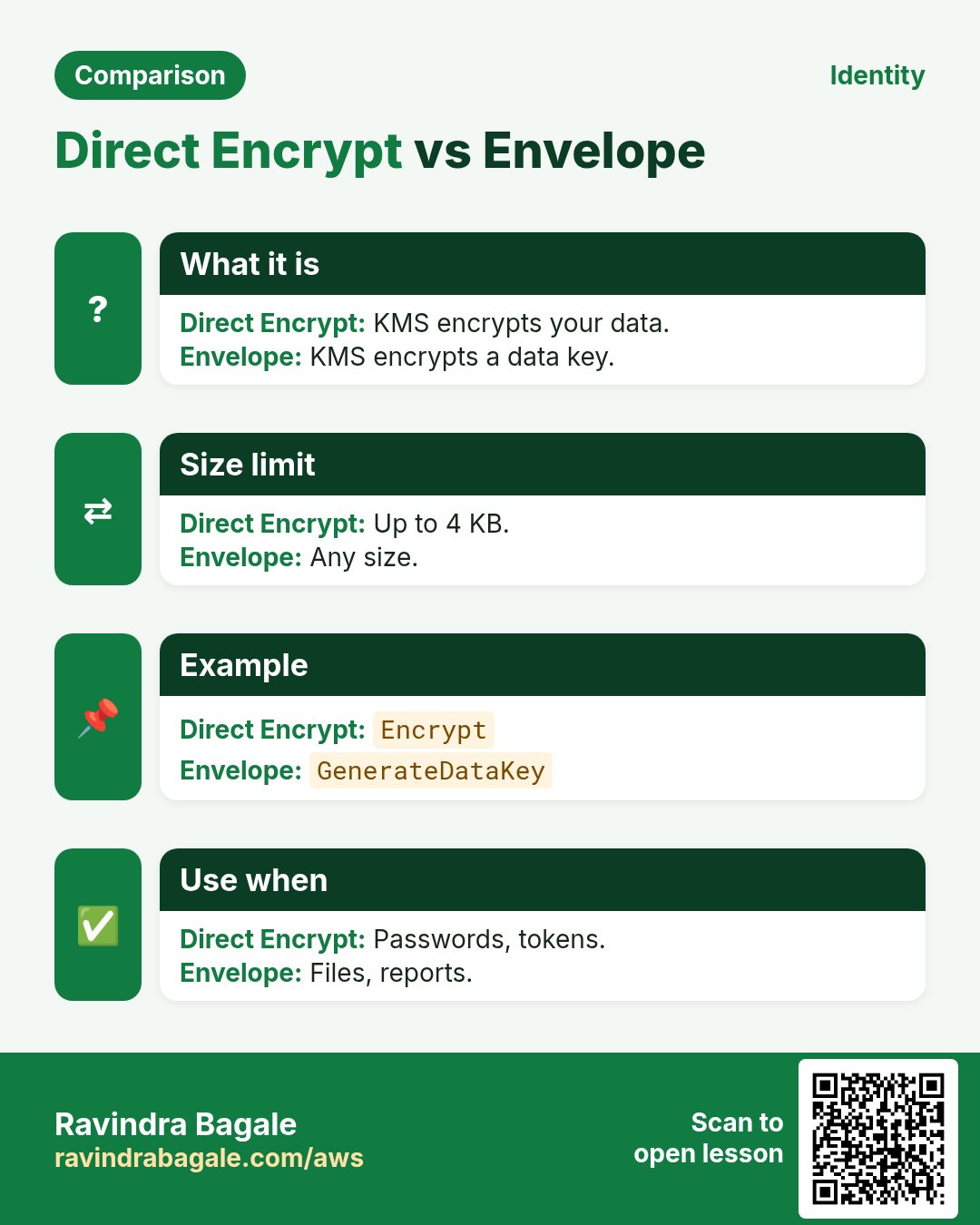

Q. What is envelope encryption?

Encrypt data with a data key locally and encrypt the data key with KMS.

Q. Why encryption context?

It binds ciphertext to metadata and appears in audit logs; decrypt needs the same context.

Q. Does Decrypt need a KeyId for symmetric keys?

No, the ciphertext carries the key ID.

Q. How to share verification with outsiders?

Export the public key with GetPublicKey.

Try at home

  1. Encrypt a JSON patient record in Node.js with GenerateDataKey and store both parts in S3.
  2. Try ReEncrypt to move a ciphertext to a new key from PHP.

In short

  1. CreateKey + alias + rotation.
  2. Encrypt/Decrypt ≤ 4 KB.
  3. Encryption context.
  4. GenerateDataKey for files.
  5. Sign/Verify asymmetric.

Practice Tasks

About this scenario

Seoul Beauty Lab is a cosmetics business in Seoul. Ji-woo Park looks after its IT and cloud work. They count money in KRW and run their AWS resources in the ap-northeast-2 Region. In the tasks below you do real jobs for them using what this lesson teaches. All names, account IDs, IP addresses and numbers are made up for practice.

0 / 10

Easy Create a KMS key

Why: A customer managed key lets you control who can encrypt and decrypt.

What to do: Create a KMS key with description "seoulbeauty data key".

How:
  1. Read the task and decide which AWS service it is about.
  2. Write aws, then the service name, then the operation (the action word).
  3. Add each needed flag (--name) followed by its value from the task.
  4. Flags can be in any order. Click Check answer.

Easy Turn on yearly key rotation

Why: Automatic rotation changes the key material without breaking old data.

What to do: Enable automatic rotation for key 1234abcd-12ab-34cd-56ef-1234567890ab.

How:
  1. Read the task and decide which AWS service it is about.
  2. Write aws, then the service name, then the operation (the action word).
  3. Add each needed flag (--name) followed by its value from the task.
  4. Flags can be in any order. Click Check answer.

Easy How many addresses in a /16?

Why: Picking a VPC size needs this count.

What to do: Seoul Beauty Lab plans the VPC 10.71.0.0/16. How many IP addresses does it hold in total?

How:
  1. Write down the numbers the task gives you.
  2. Work it out step by step on paper.
  3. Type only the final answer in the box.
  4. Click Check answer.

Easy Port for SSH

Why: Security group rules need the right port.

What to do: Which TCP port must the security group open for SSH?

How:
  1. Write down the numbers the task gives you.
  2. Work it out step by step on paper.
  3. Type only the final answer in the box.
  4. Click Check answer.

Medium Give the key a friendly alias

Why: Aliases are easier to read than key IDs and can be moved to a new key.

What to do: Create alias alias/seoulbeauty-data for key 1234abcd-12ab-34cd-56ef-1234567890ab.

How:
  1. Read the task and decide which AWS service it is about.
  2. Write aws, then the service name, then the operation (the action word).
  3. Add each needed flag (--name) followed by its value from the task.
  4. Flags can be in any order. Click Check answer.

Medium Decrypt a blob

Why: The ciphertext remembers which key made it, so decrypt needs only the blob.

What to do: Decrypt the ciphertext stored in secret.enc.

How:
  1. Read the task and decide which AWS service it is about.
  2. Write aws, then the service name, then the operation (the action word).
  3. Add each needed flag (--name) followed by its value from the task.
  4. Flags can be in any order. Click Check answer.

Medium Encrypt a small file

Why: KMS Encrypt works for data up to 4 KB, like a password or token.

What to do: Encrypt secret.txt with key alias/seoulbeauty-data.

How:
  1. Read the task and decide which AWS service it is about.
  2. Write aws, then the service name, then the operation (the action word).
  3. Add each needed flag (--name) followed by its value from the task.
  4. Flags can be in any order. Click Check answer.

Hard Use a key, not manage it

Why: Apps need Encrypt/Decrypt; only admins should change or delete keys.

What to do: Allow kms:Encrypt, kms:Decrypt, kms:GenerateDataKey on arn:aws:kms:ap-northeast-2:119519391020:key/1234abcd-12ab-34cd-56ef-1234567890ab only.

How:
  1. Start with { "Version": "2012-10-17", "Statement": [ ... ] }.
  2. In each statement write Effect, Action and Resource.
  3. Give only what the task needs (least privilege).
  4. Use double quotes and commas correctly. Click Check answer.

Hard Generate a data key

Why: Envelope encryption: KMS gives a data key; you encrypt big files locally with it.

What to do: Generate an AES_256 data key under alias/seoulbeauty-data.

How:
  1. Read the task and decide which AWS service it is about.
  2. Write aws, then the service name, then the operation (the action word).
  3. Add each needed flag (--name) followed by its value from the task.
  4. Flags can be in any order. Click Check answer.

Hard Default encryption with KMS

Why: Default encryption makes sure every new object is encrypted, even if the uploader forgets.

What to do: Apply the encryption settings in enc.json to bucket seoulbeauty-hr-docs.

How:
  1. Read the task and decide which AWS service it is about.
  2. Write aws, then the service name, then the operation (the action word).
  3. Add each needed flag (--name) followed by its value from the task.
  4. Flags can be in any order. Click Check answer.

See all practice tasks in the Task Hub →

Revision, comparison and interview cards

Revise this lesson in a few minutes. Save the cards on your phone or download them as PNG files. The QR code on each card opens this lesson.

KMS encrypt. Encrypt: up to 4 KB. Use an alias, not key id. Decrypt finds the key itself. Add EncryptionContext.
Revision card: KMS encrypt · Download PNG · Open card page
Envelope encryption. GenerateDataKey: plain + encrypted. Encrypt file locally (AES-GCM). Store only the encrypted key. Wipe the plain key after use.
Revision card: Envelope encryption · Download PNG · Open card page
Direct Encrypt vs Envelope. KMS encrypts your data. / KMS encrypts a data key.
Comparison: Direct Encrypt vs Envelope · Download PNG · Open card page
KMS InvalidCiphertextException?. EncryptionContext differs. Ciphertext changed in transit. Base64 decode before Decrypt.
Interview card: KMS InvalidCiphertextException? · Download PNG · Open card page

More cards: Ravi Sir's Cards.
