12. Data Hierarchies and Groups: Cards

मराठी cards · Open the chapter

Revision cards

What is a hierarchy?. Users want to start with a big picture and then go into detail in the same visual. — Revision card 1 of 7: What is a hierarchy? · Download PNG · Open card page

Lesson: 12.1 What Is a Hierarchy?

Create a hierarchy in the Data pane. Dragging 3 columns into every visual is slow and easy to get in the wrong order. — Revision card 2 of 7: Create a hierarchy in the Data pane · Download PNG · Open card page

Lesson: 12.2 Creating a Hierarchy in the Data Pane

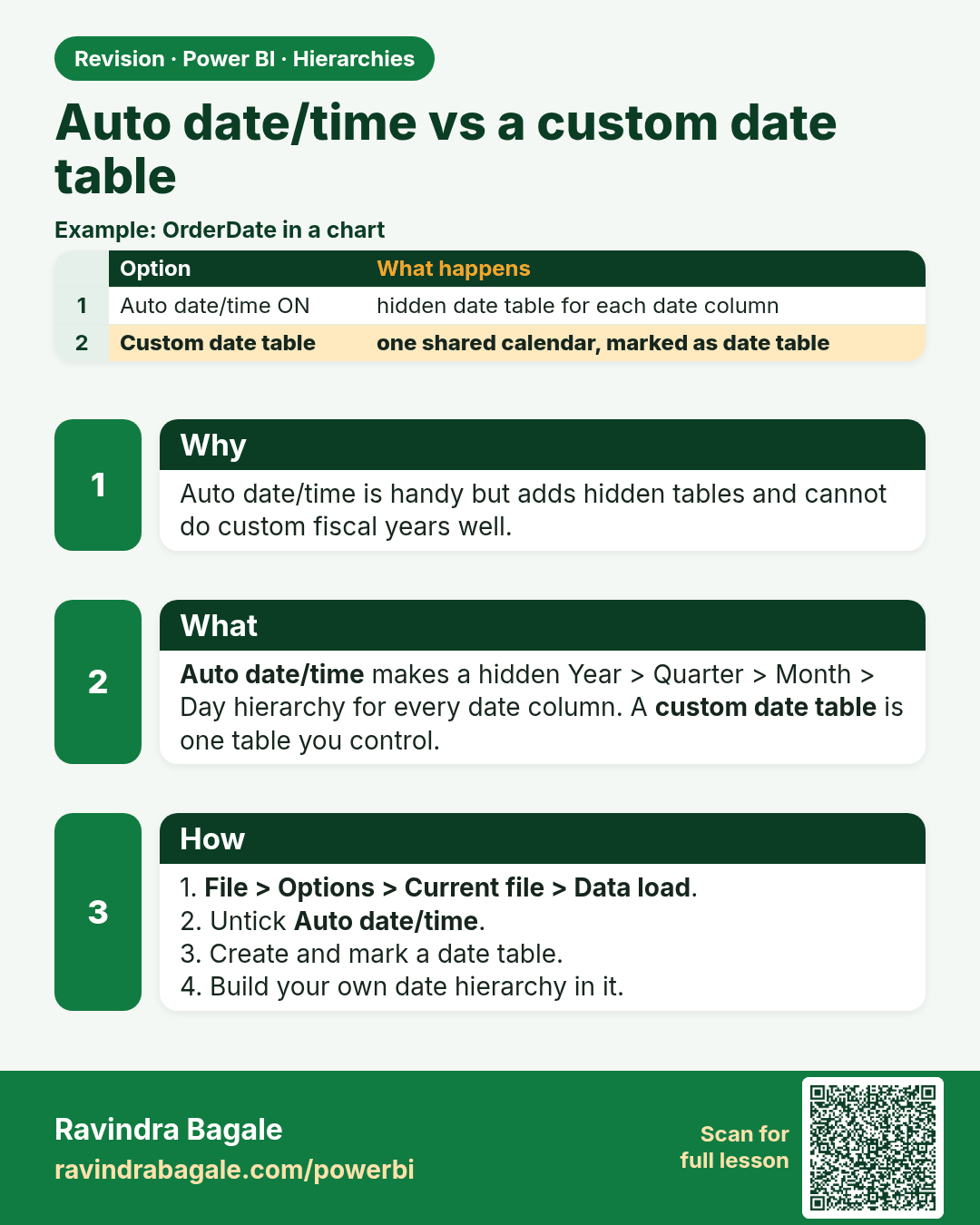

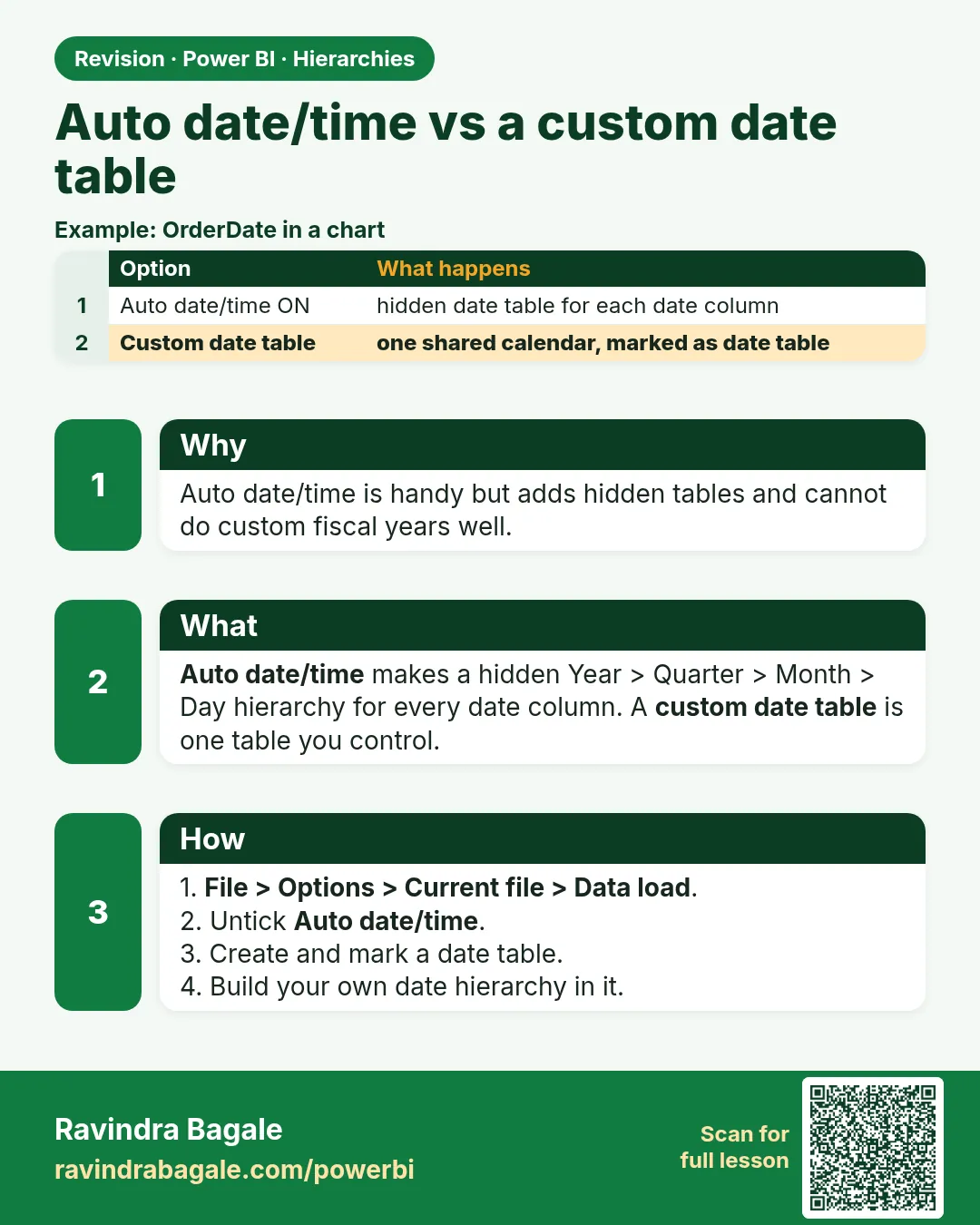

Auto date/time vs a custom date table. Auto date/time is handy but adds hidden tables and cannot do custom fiscal years well. — Revision card 3 of 7: Auto date/time vs a custom date table · Download PNG · Open card page

Lesson: 12.3 Auto Date/Time Hierarchy vs a Custom Date Table

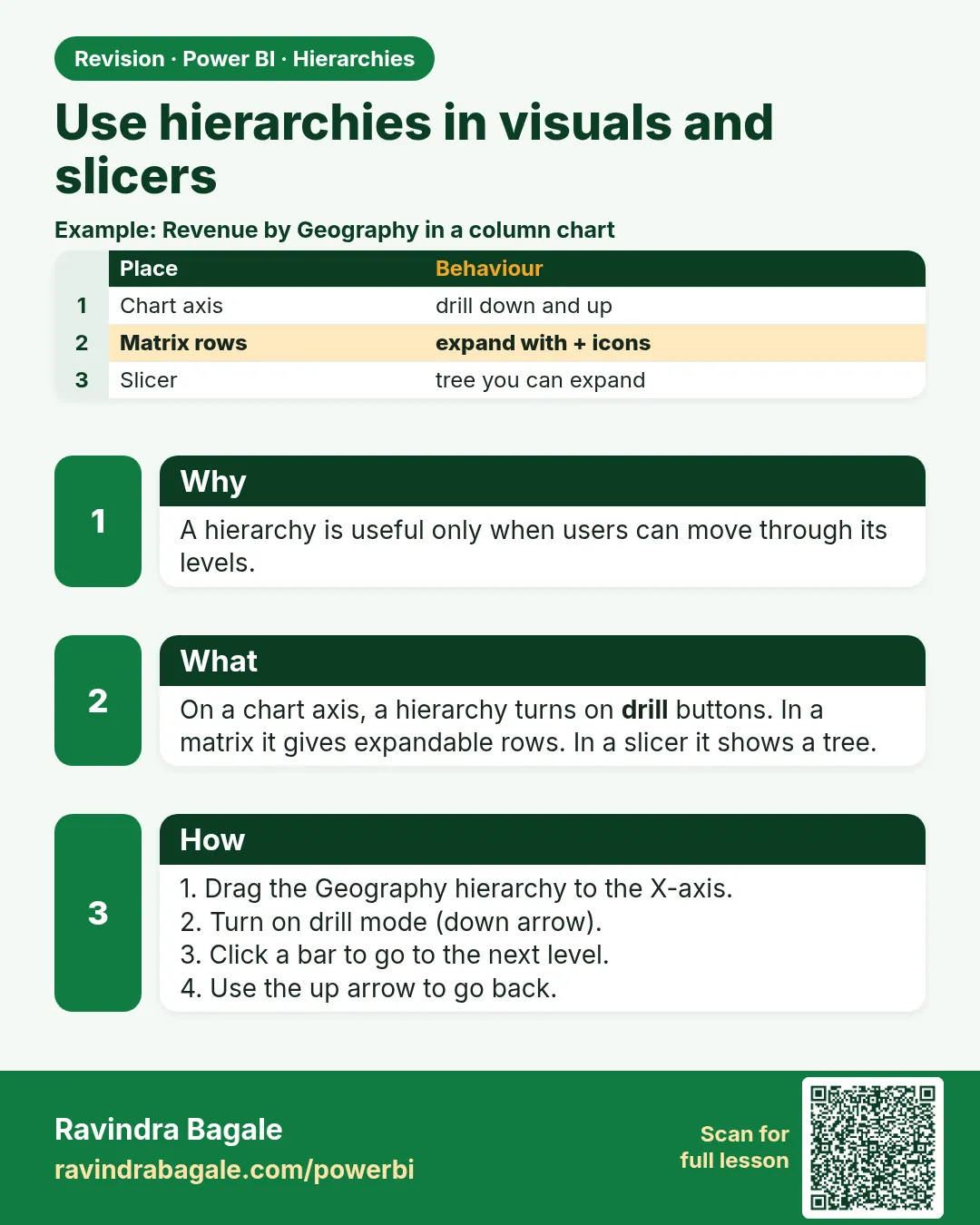

Use hierarchies in visuals and slicers. A hierarchy is useful only when users can move through its levels. — Revision card 4 of 7: Use hierarchies in visuals and slicers · Download PNG · Open card page

Lesson: 12.4 Using Hierarchies in Visuals and Slicers

Data groups: list groups. Business areas like regions are not always in the data. — Revision card 5 of 7: Data groups: list groups · Download PNG · Open card page

Lesson: 12.5 Data Groups (List Groups)

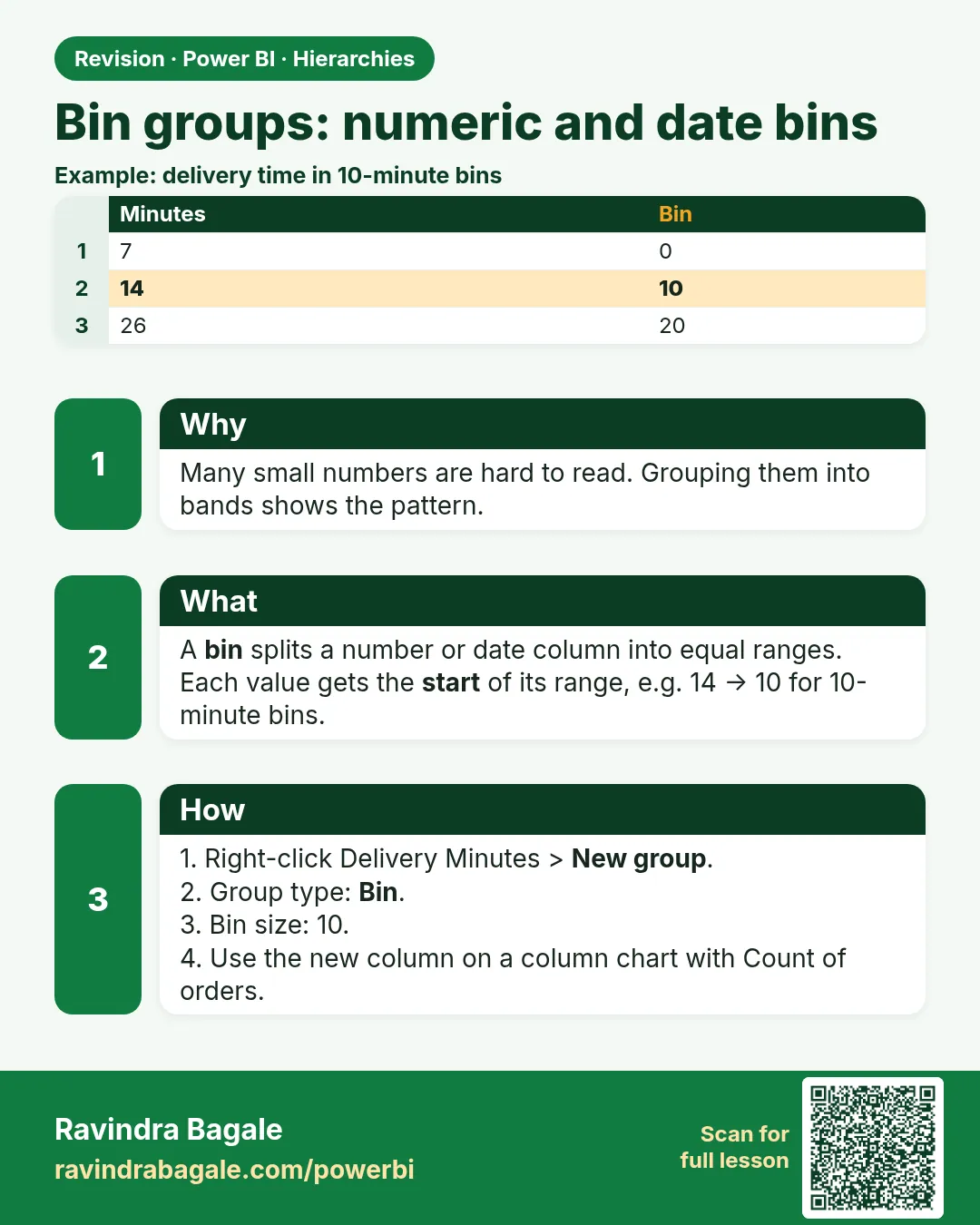

Bin groups: numeric and date bins. Many small numbers are hard to read. Grouping them into bands shows the pattern. — Revision card 6 of 7: Bin groups: numeric and date bins · Download PNG · Open card page

Lesson: 12.6 Bin Groups (Numeric and Date Bins)

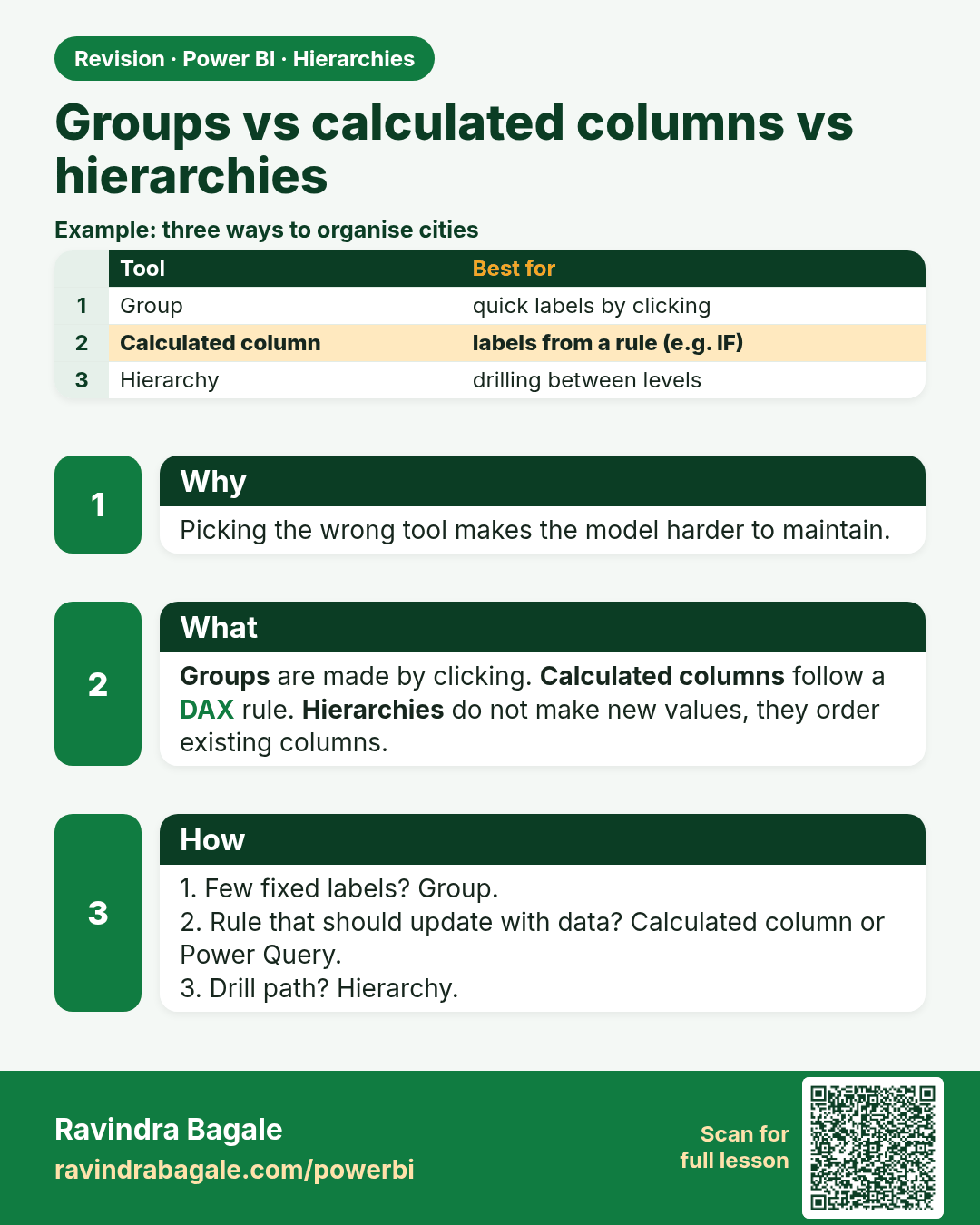

Groups vs calculated columns vs hierarchies. Picking the wrong tool makes the model harder to maintain. — Revision card 7 of 7: Groups vs calculated columns vs hierarchies · Download PNG · Open card page

Lesson: 12.7 Groups vs Calculated Columns vs Hierarchies

Interview cards

Why turn off Auto date/time in Power BI? Auto date/time creates a hidden date table for every date column. This makes the model bigger and gives separate calendars that cannot be shared or customised, like a fiscal year starting in April. — Interview card 1 of 2: Why turn off Auto date/time in Power BI? · Download PNG · Open card page

Lesson: 12.3 Auto Date/Time Hierarchy vs a Custom Date Table

How would you show delivery times grouped into ranges? Create a bin group on Delivery Minutes with size 10. Each value gets its bin start (0, 10, 20…). Put the bin on the axis and Count of orders as the value. — Interview card 2 of 2: How would you show delivery times grouped into ranges? · Download PNG · Open card page

Lesson: 12.6 Bin Groups (Numeric and Date Bins)

Comparison cards

Group vs Hierarchy. Both help organise data in visuals. A group joins values into a new label. A hierarchy orders existing columns for drilling. — Comparison card 1 of 2: Group vs Hierarchy · Download PNG · Open card page

Lesson: 12.7 Groups vs Calculated Columns vs Hierarchies

Auto date/time vs custom date table. Both give Year, Quarter, Month and Day for dates. Auto date/time is automatic and hidden. A custom date table is one you build and mark. — Comparison card 2 of 2: Auto date/time vs custom date table · Download PNG · Open card page

Lesson: 12.3 Auto Date/Time Hierarchy vs a Custom Date Table
