Chapter 20: Jenkins Manual Jobs — Install, Configure and Freestyle: Cards

मराठी cards · Open the chapter

Revision cards

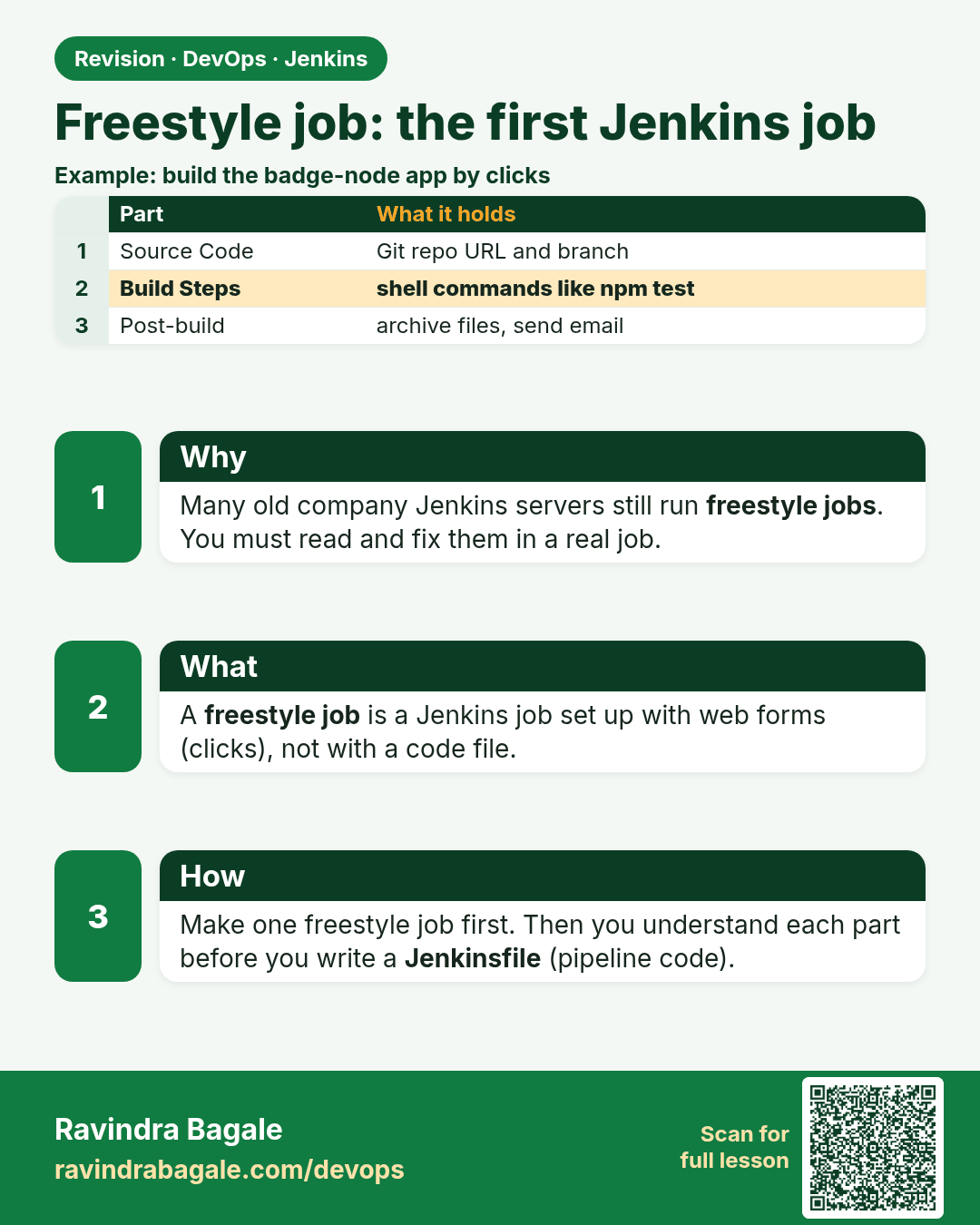

Freestyle job: the first Jenkins job. Many old company Jenkins servers still run freestyle jobs. You must read and fix them in a real job.
Revision card 1 of 17: Freestyle job: the first Jenkins job · Download PNG · Open card page

Lesson: 20.1 Why a Freestyle job still matters

Install Jenkins LTS on Linux. LTS (Long-Term Support) gets fewer, tested updates. Companies use it so Jenkins does not break every week.
Revision card 2 of 17: Install Jenkins LTS on Linux · Download PNG · Open card page

Lesson: 20.2 Install Jenkins LTS on Linux (honest flow)

First login: unlock and suggested plugins. A new Jenkins is open to anyone who reaches the port. The first minutes decide if it is safe.
Revision card 3 of 17: First login: unlock and suggested plugins · Download PNG · Open card page

Lesson: 20.3 First UI: suggested plugins and safety

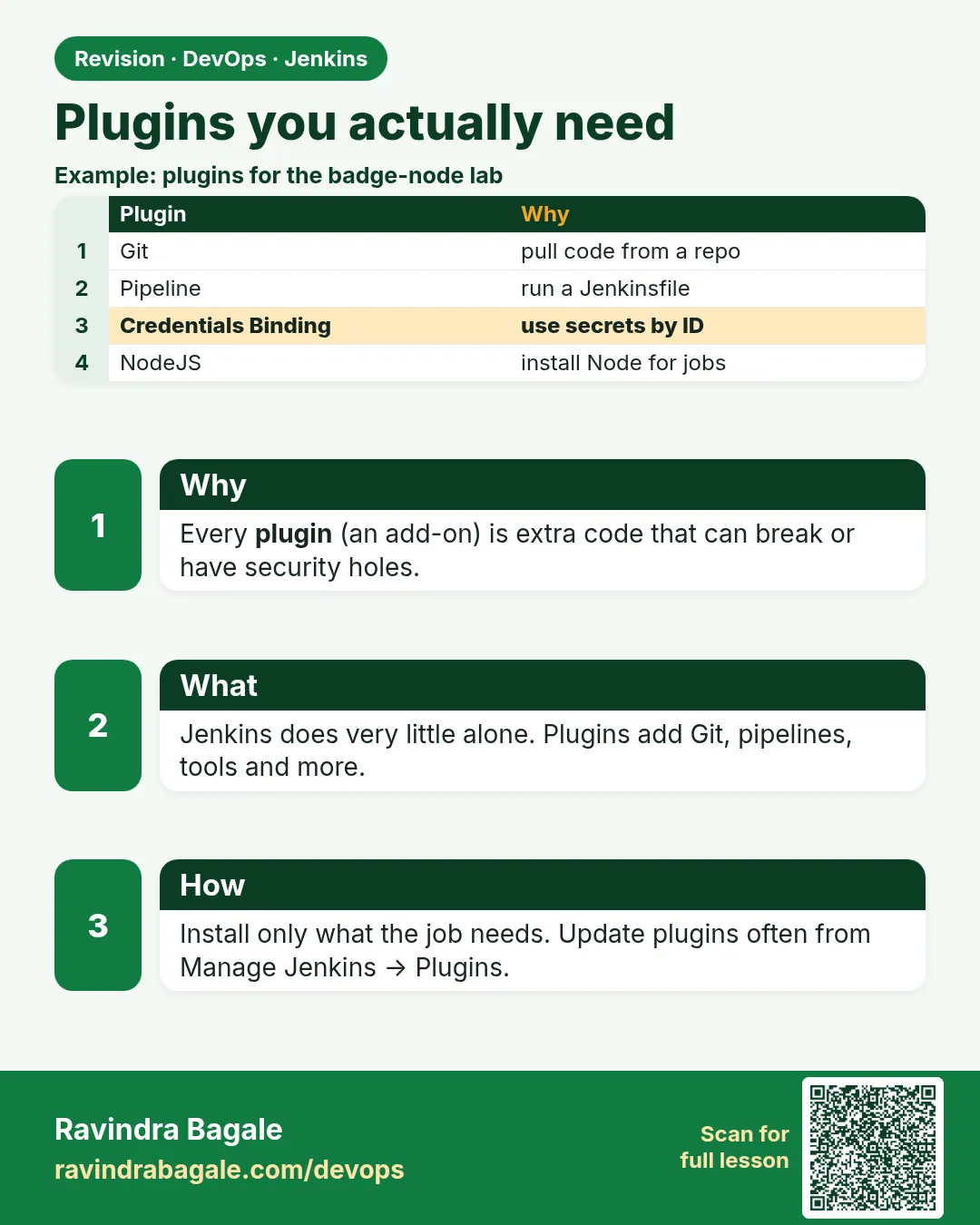

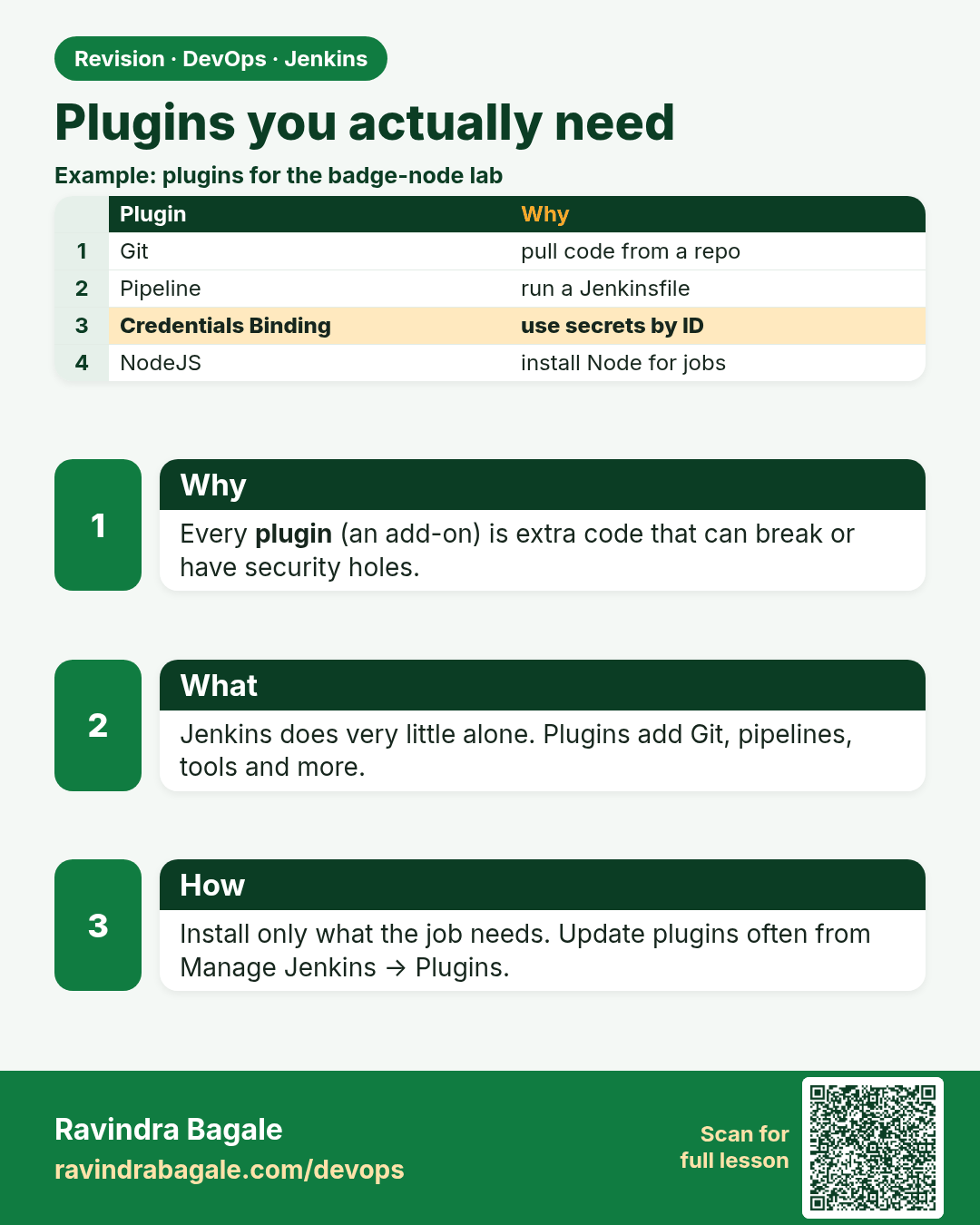

Plugins you actually need. Every plugin (an add-on) is extra code that can break or have security holes.
Revision card 4 of 17: Plugins you actually need · Download PNG · Open card page

Lesson: 20.4 Plugins you actually need for this lab

System settings: URL, executors, quiet period. Wrong settings give broken links in emails and webhooks, or builds that block each other.
Revision card 5 of 17: System settings: URL, executors, quiet period · Download PNG · Open card page

Lesson: 20.5 Configuration: URL, executors, quiet period

Tools: tell Jenkins where Git and Node are. A job fails with “npm: not found” if Jenkins does not know where the tool is.
Revision card 6 of 17: Tools: tell Jenkins where Git and Node are · Download PNG · Open card page

Lesson: 20.6 Tools: Git and Node locations

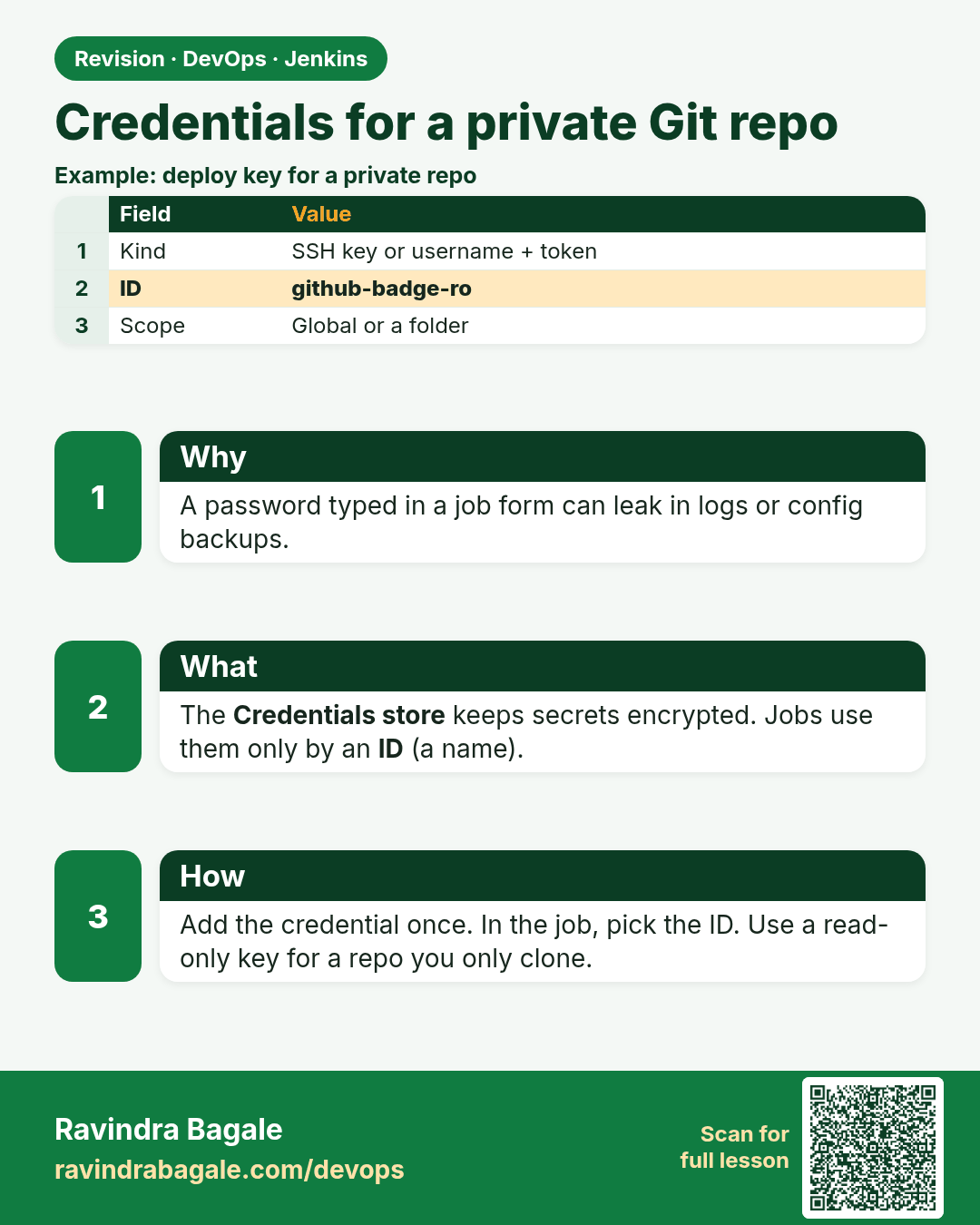

Credentials for a private Git repo. A password typed in a job form can leak in logs or config backups.
Revision card 7 of 17: Credentials for a private Git repo · Download PNG · Open card page

Lesson: 20.7 Credentials for private Git (by ID only)

Git in a freestyle job. Jenkins must get the newest code before it can build and test it.
Revision card 8 of 17: Git in a freestyle job · Download PNG · Open card page

Lesson: 20.8 Git integration in a Freestyle project

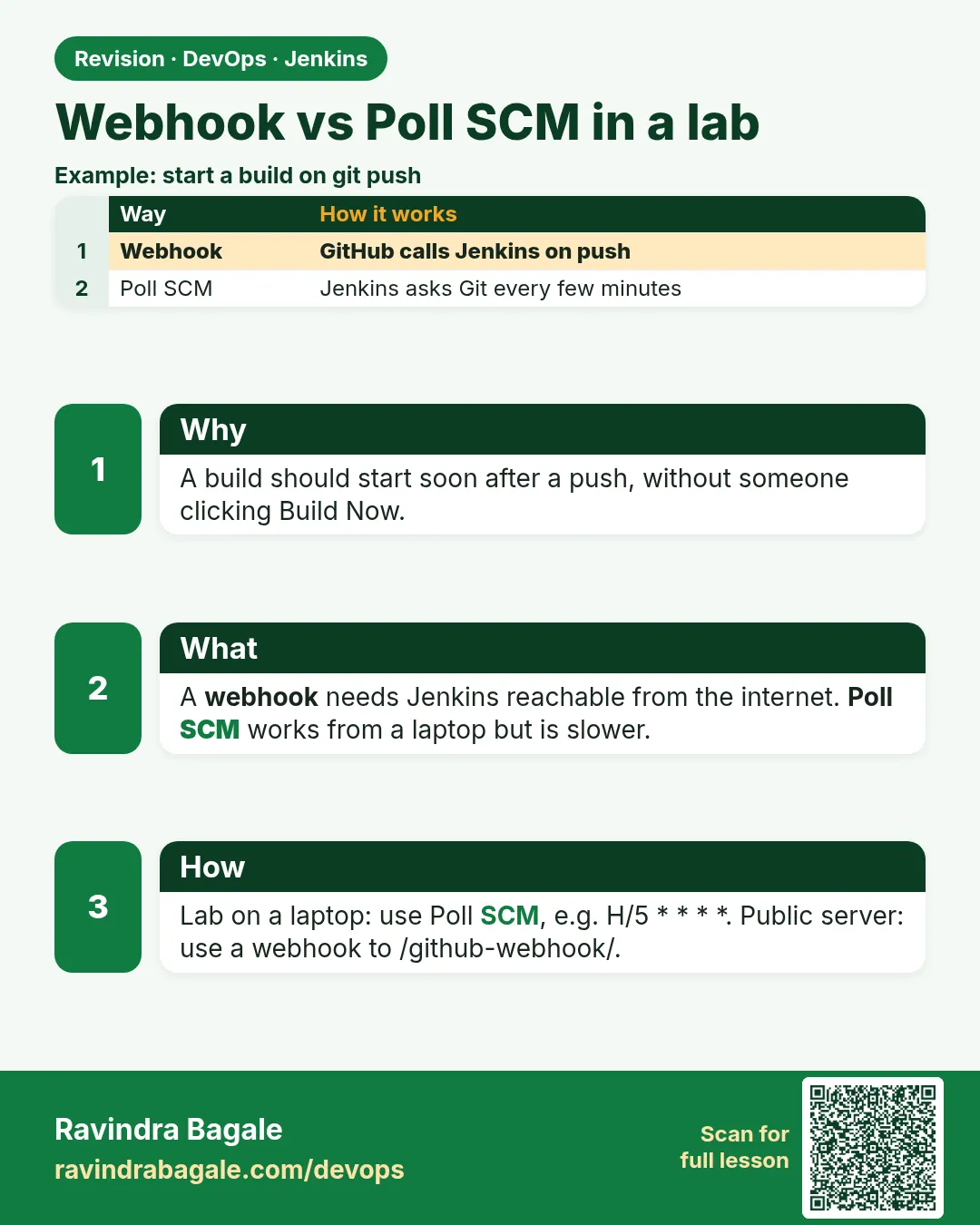

Webhook vs Poll SCM in a lab. A build should start soon after a push, without someone clicking Build Now.
Revision card 9 of 17: Webhook vs Poll SCM in a lab · Download PNG · Open card page

Lesson: 20.9 Webhook vs poll SCM (honest lab)

What Jenkins needs from a Node.js project. Jenkins only runs commands. The project must say how to install, test and build.
Revision card 10 of 17: What Jenkins needs from a Node.js project · Download PNG · Open card page

Lesson: 20.10 Tiny Node.js project shape (what Jenkins needs)

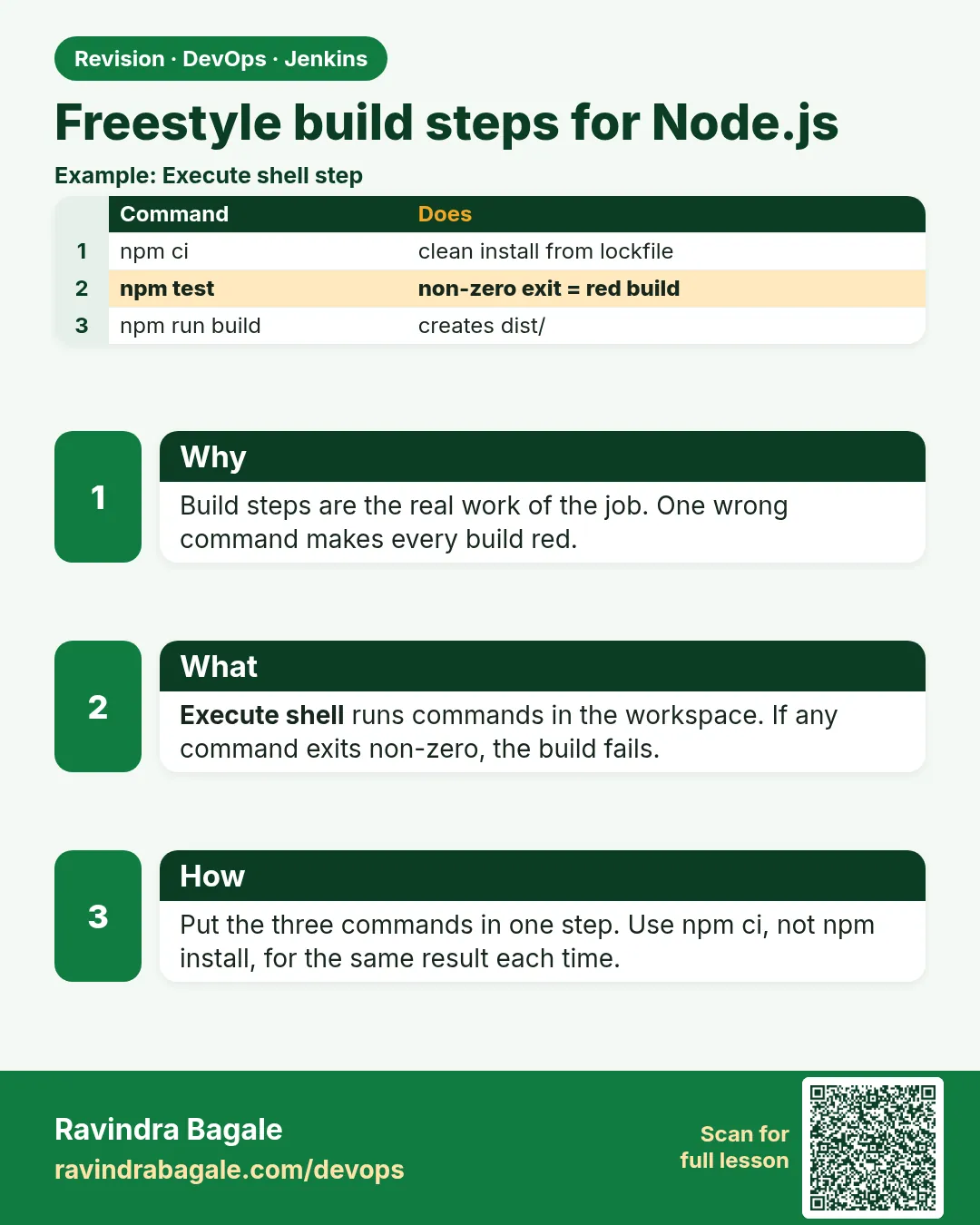

Freestyle build steps for Node.js. Build steps are the real work of the job. One wrong command makes every build red.
Revision card 11 of 17: Freestyle build steps for Node.js · Download PNG · Open card page

Lesson: 20.11 Freestyle build steps — Node.js manual job

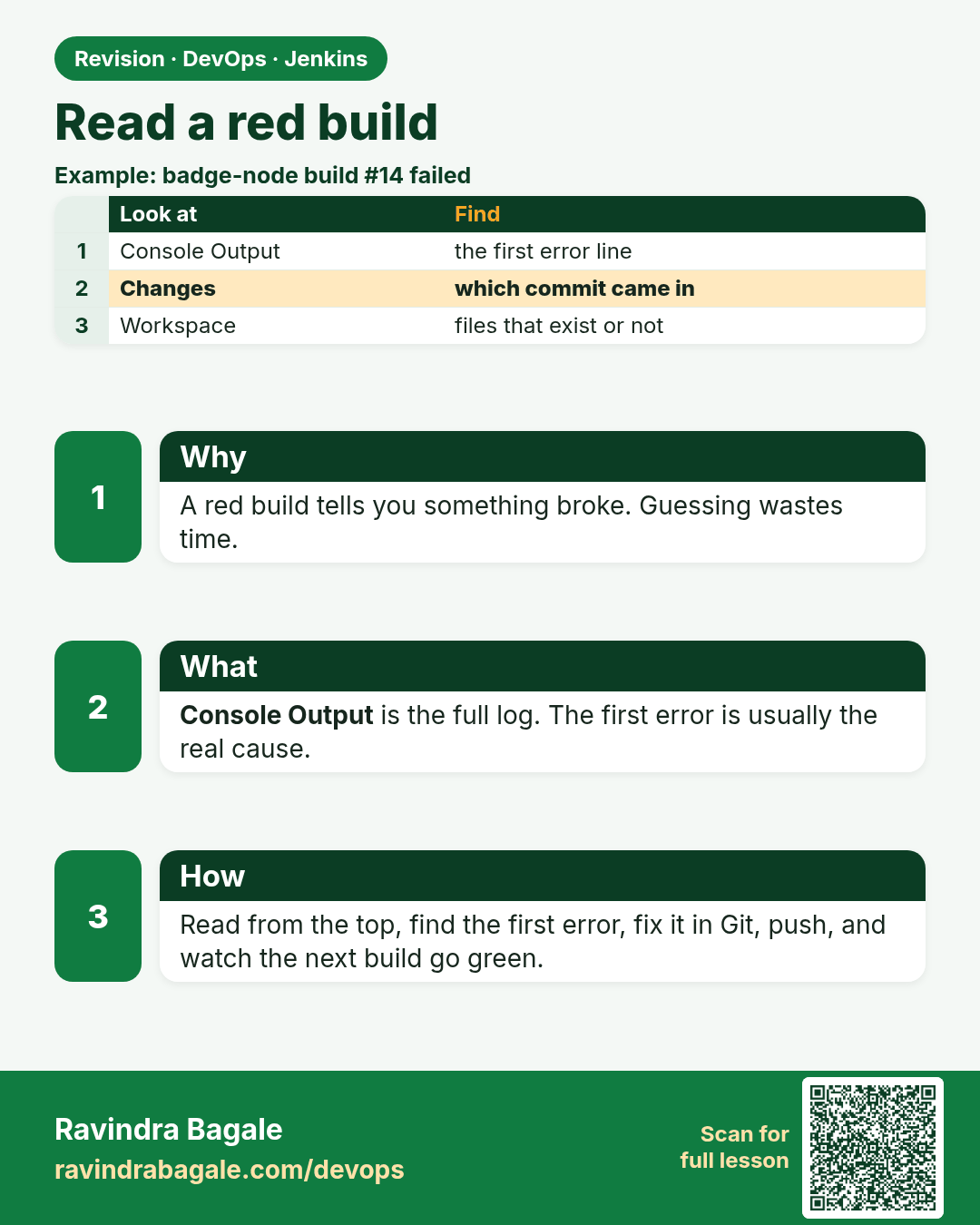

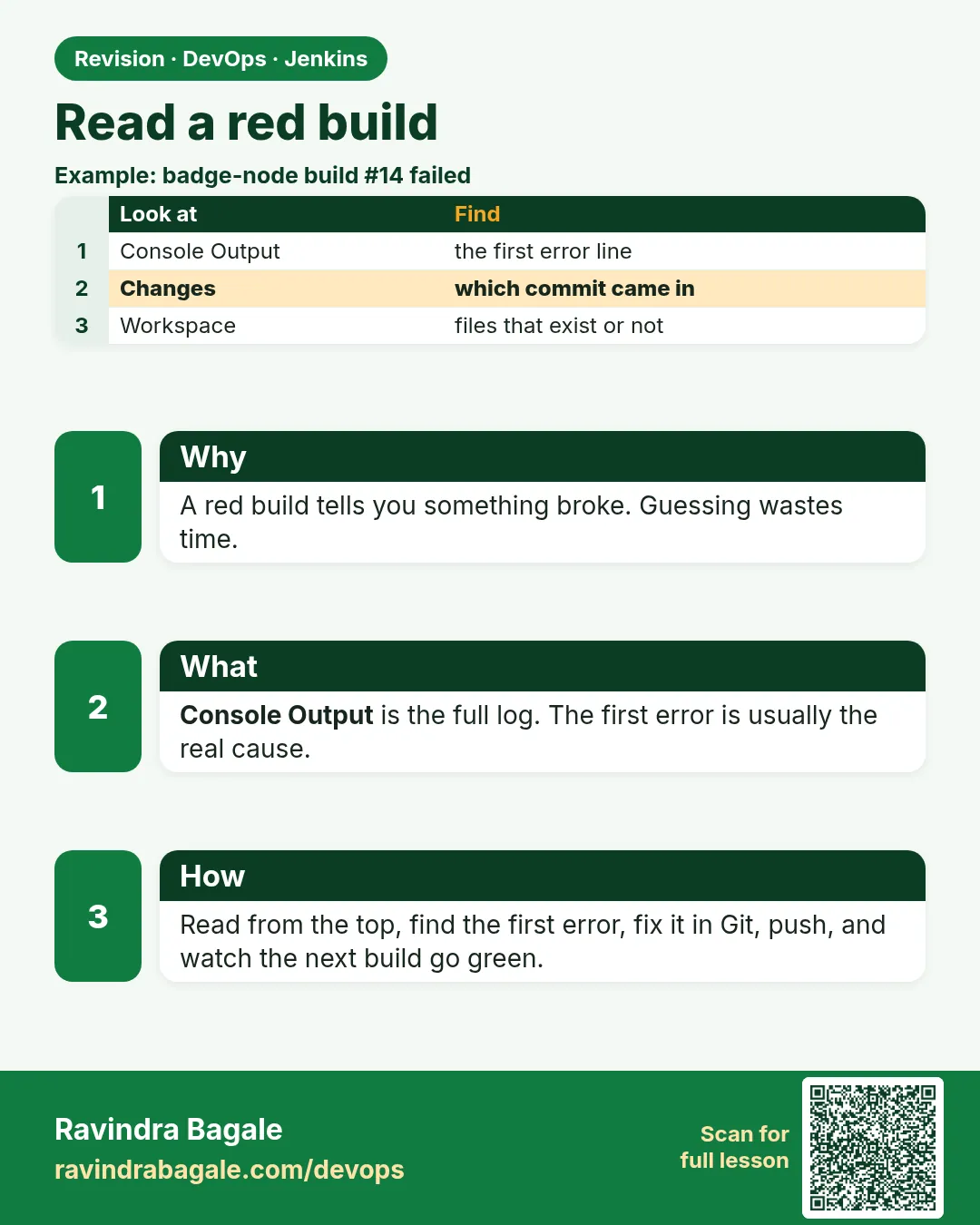

Read a red build. A red build tells you something broke. Guessing wastes time.
Revision card 12 of 17: Read a red build · Download PNG · Open card page

Lesson: 20.12 Post-build and reading a red build

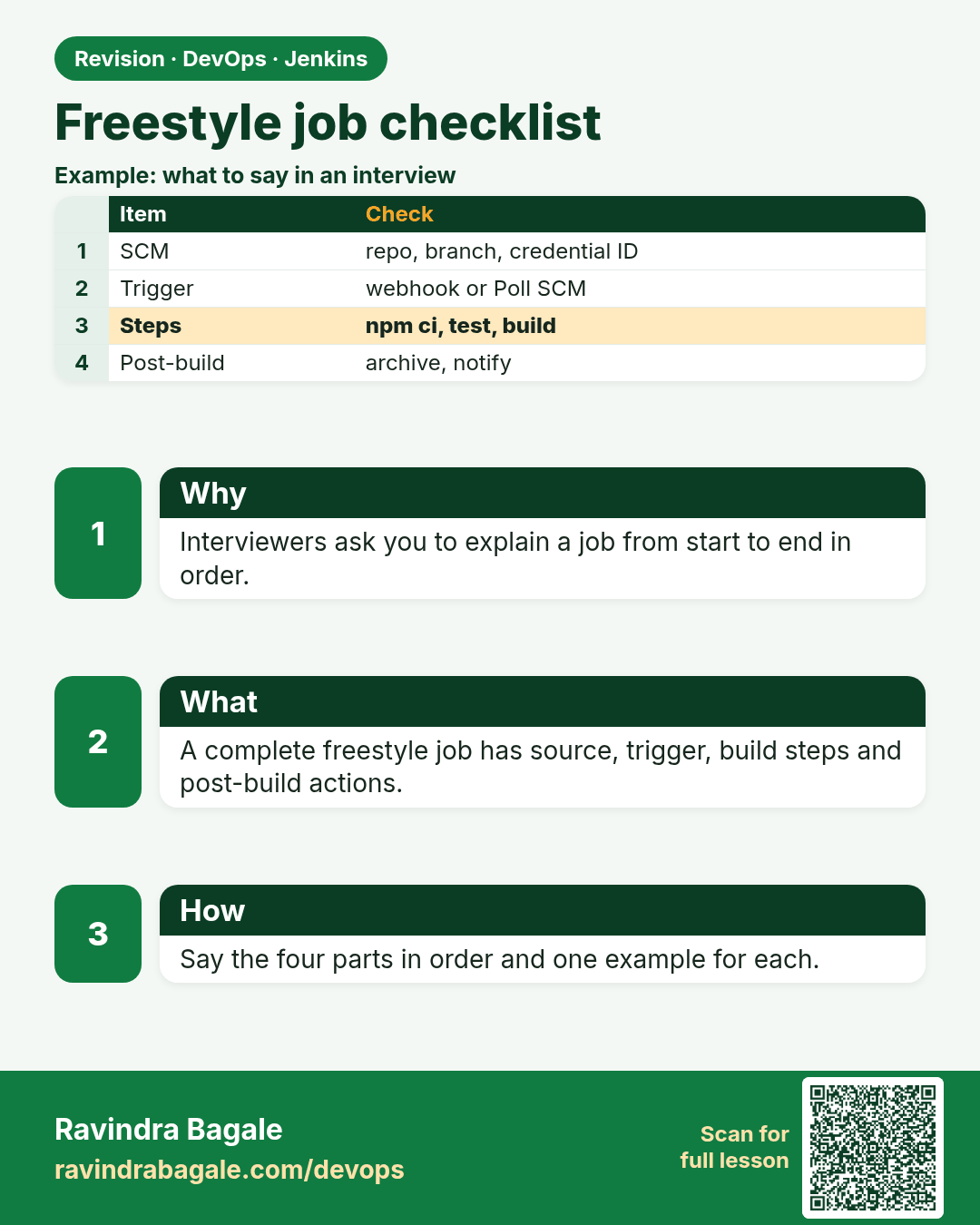

Freestyle job checklist. Interviewers ask you to explain a job from start to end in order.
Revision card 13 of 17: Freestyle job checklist · Download PNG · Open card page

Lesson: 20.13 Freestyle checklist for interviews

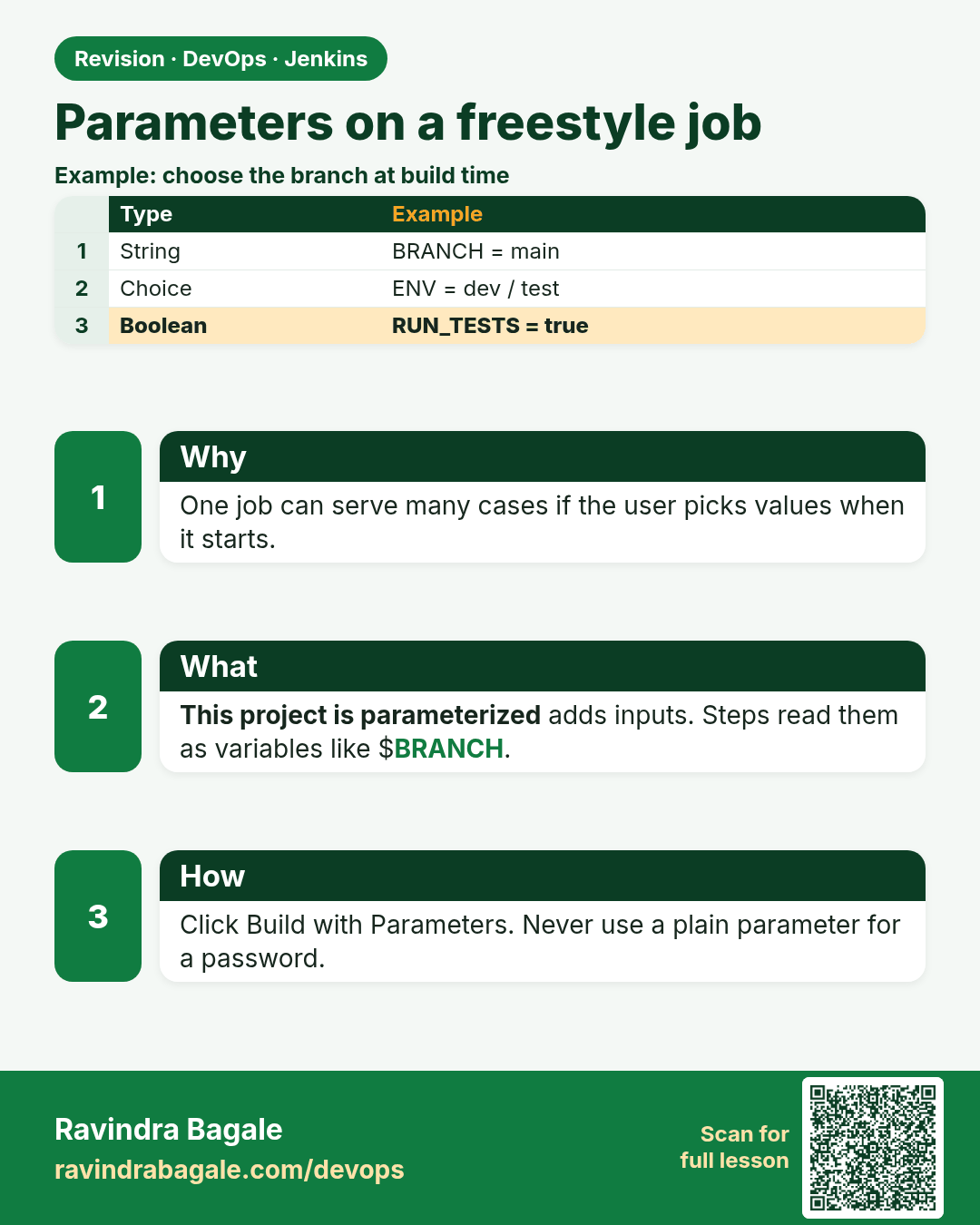

Parameters on a freestyle job. One job can serve many cases if the user picks values when it starts.
Revision card 14 of 17: Parameters on a freestyle job · Download PNG · Open card page

Lesson: 20.14 Parameters on the Freestyle job

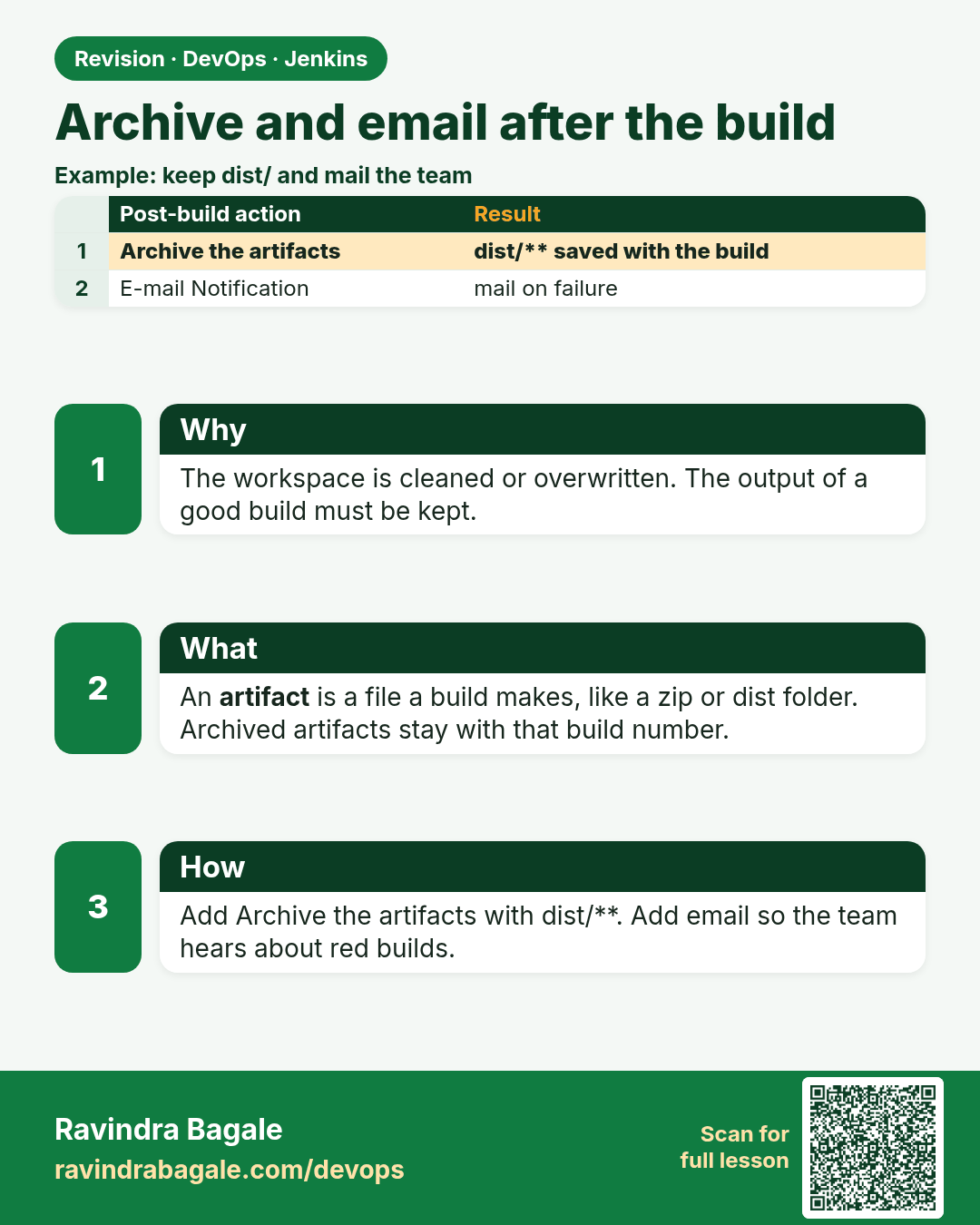

Archive and email after the build. The workspace is cleaned or overwritten. The output of a good build must be kept.
Revision card 15 of 17: Archive and email after the build · Download PNG · Open card page

Lesson: 20.15 Archive and email after the build

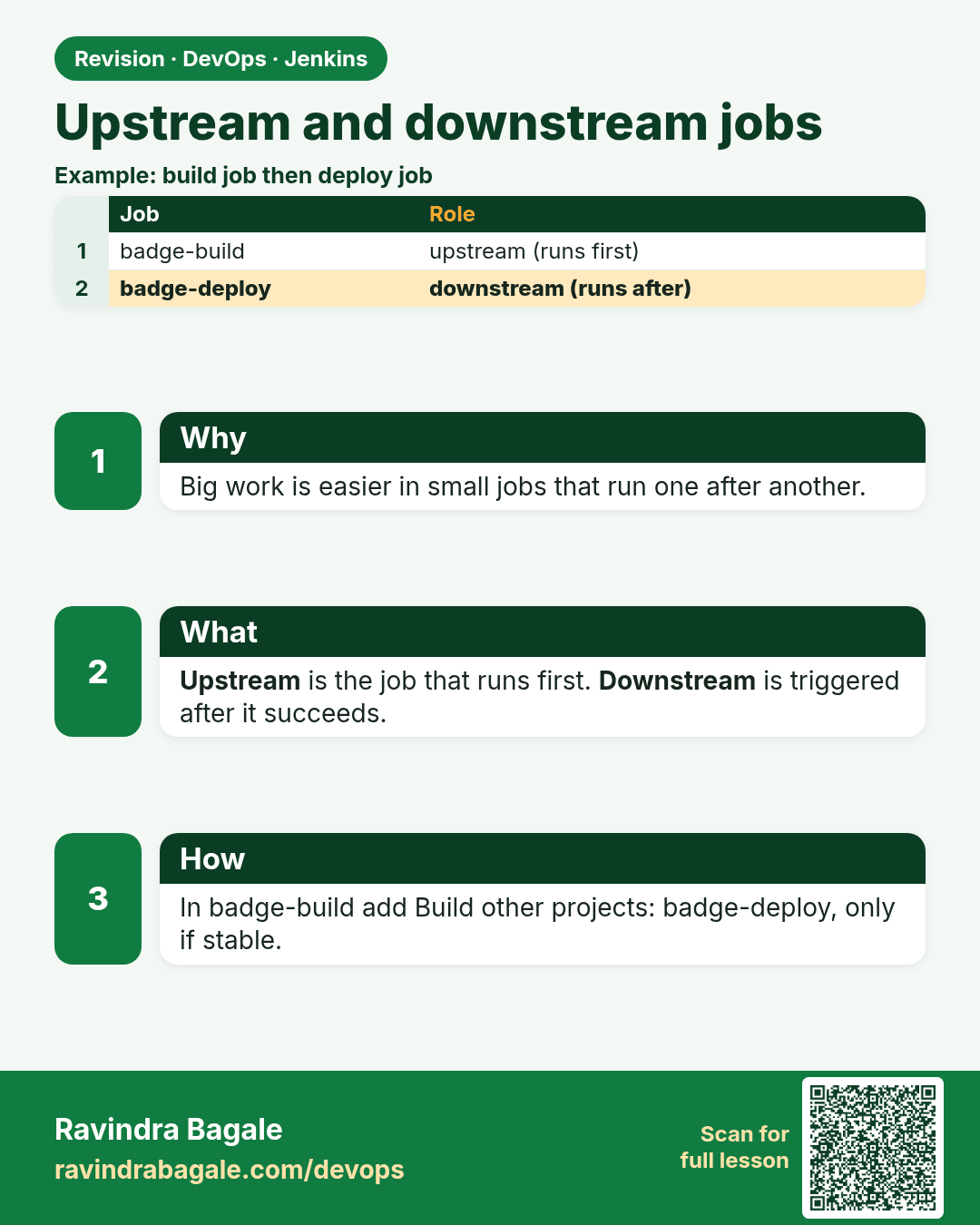

Upstream and downstream jobs. Big work is easier in small jobs that run one after another.
Revision card 16 of 17: Upstream and downstream jobs · Download PNG · Open card page

Lesson: 20.16 Upstream and downstream

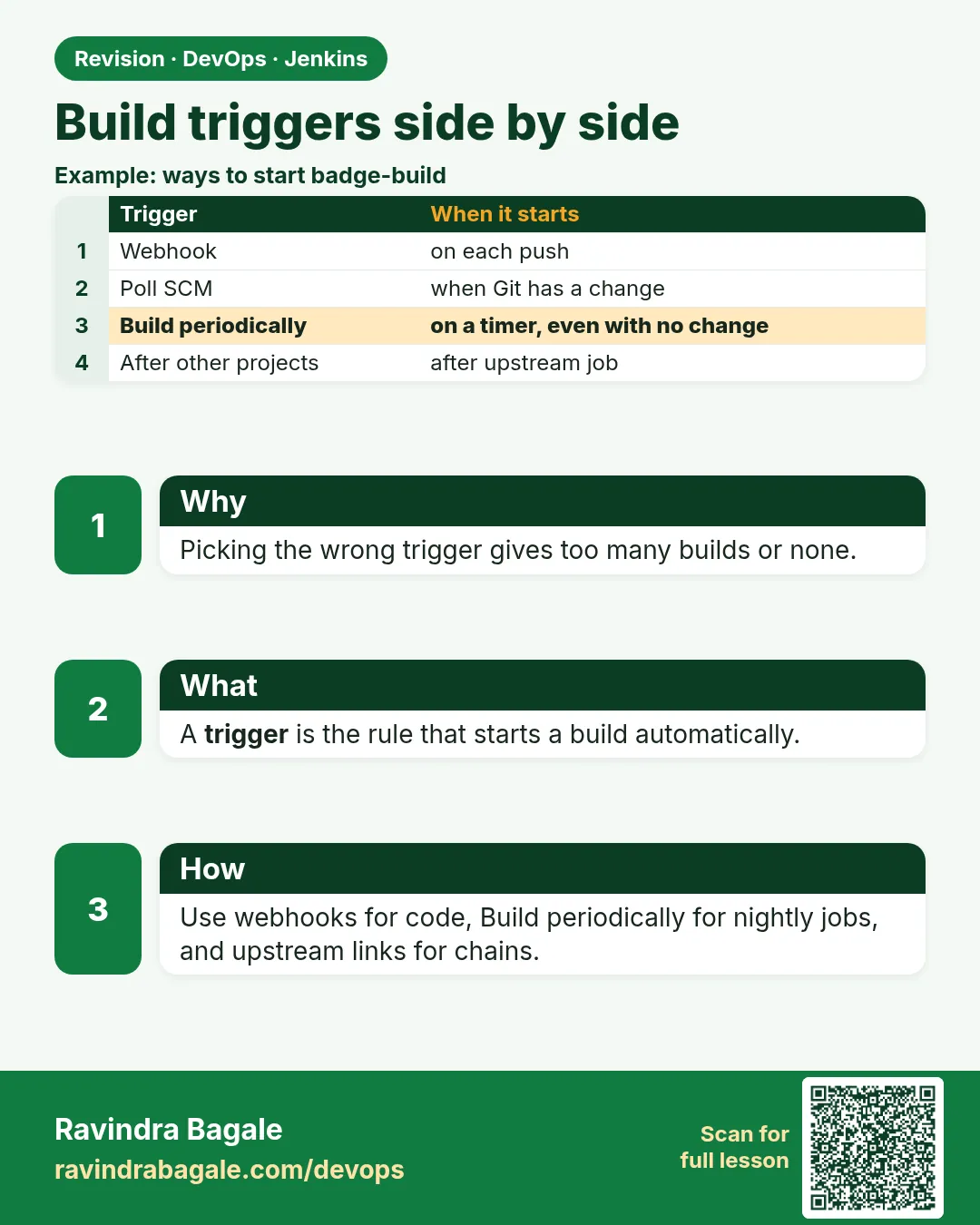

Build triggers side by side. Picking the wrong trigger gives too many builds or none.
Revision card 17 of 17: Build triggers side by side · Download PNG · Open card page

Lesson: 20.17 Triggers side by side

Interview cards

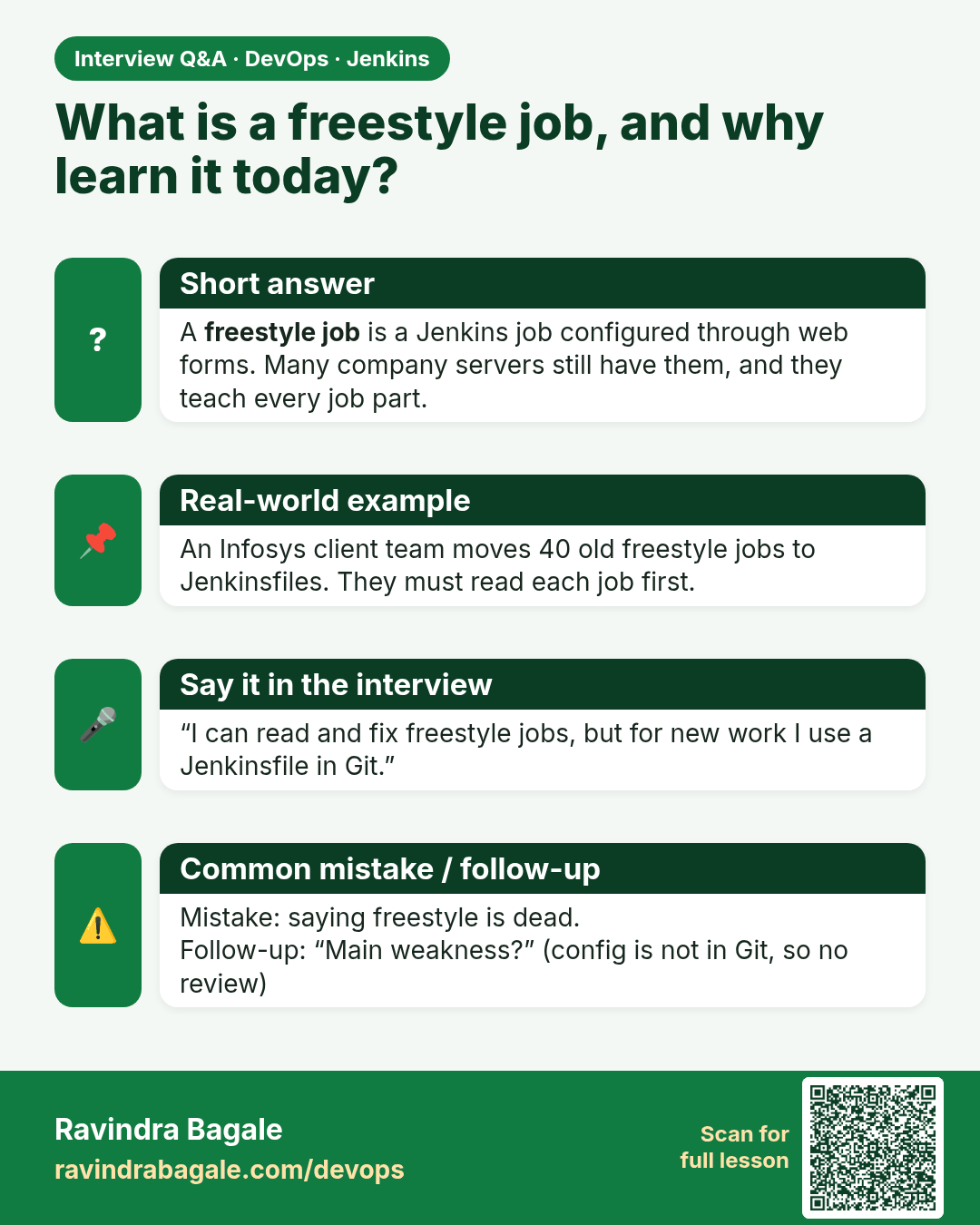

What is a freestyle job, and why learn it today? A freestyle job is a Jenkins job configured through web forms. Many company servers still have them, and they teach every job part.
Interview card 1 of 17: What is a freestyle job, and why learn it today? · Download PNG · Open card page

Lesson: 20.1 Why a Freestyle job still matters

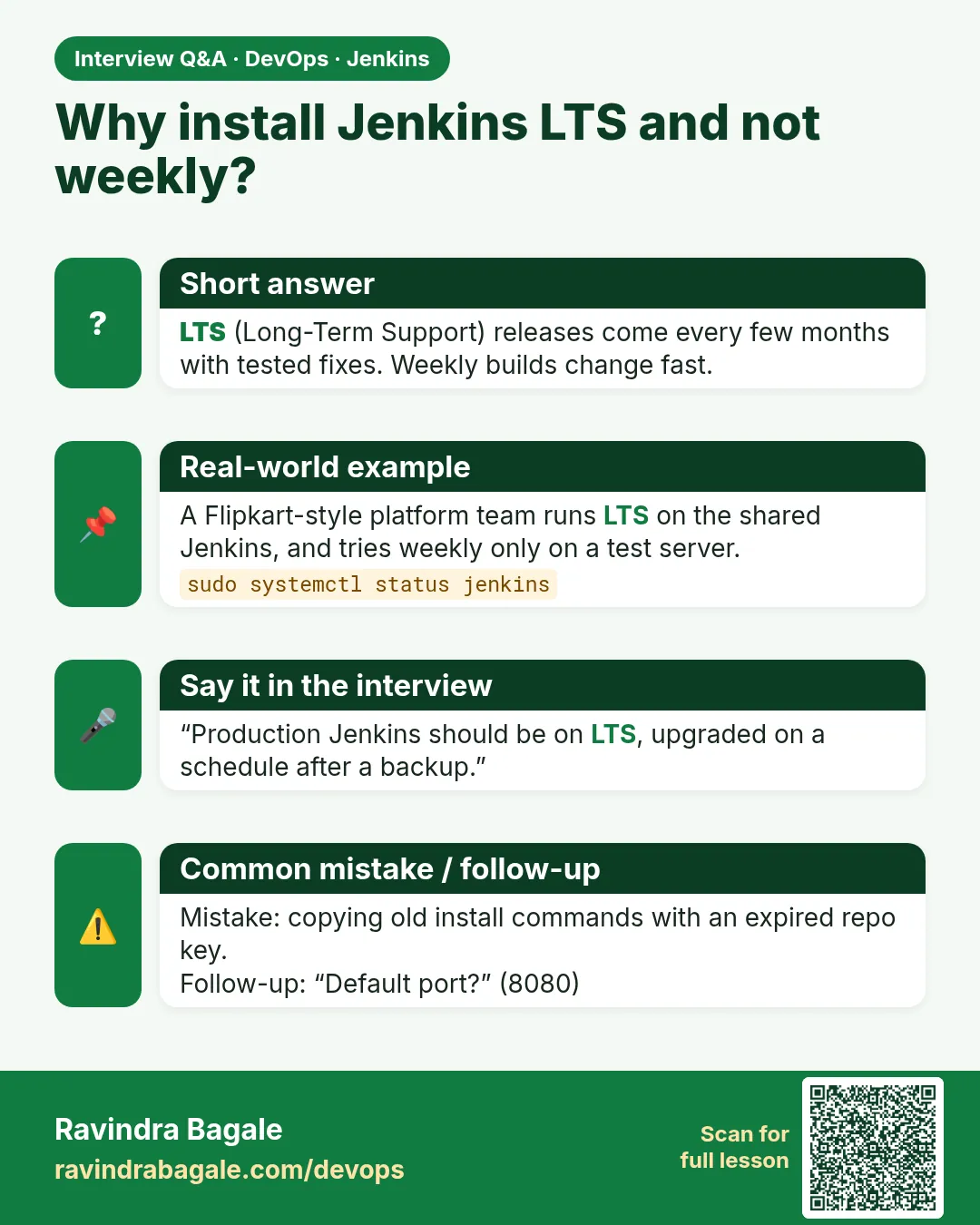

Why install Jenkins LTS and not weekly? LTS (Long-Term Support) releases come every few months with tested fixes. Weekly builds change fast.
Interview card 2 of 17: Why install Jenkins LTS and not weekly? · Download PNG · Open card page

Lesson: 20.2 Install Jenkins LTS on Linux (honest flow)

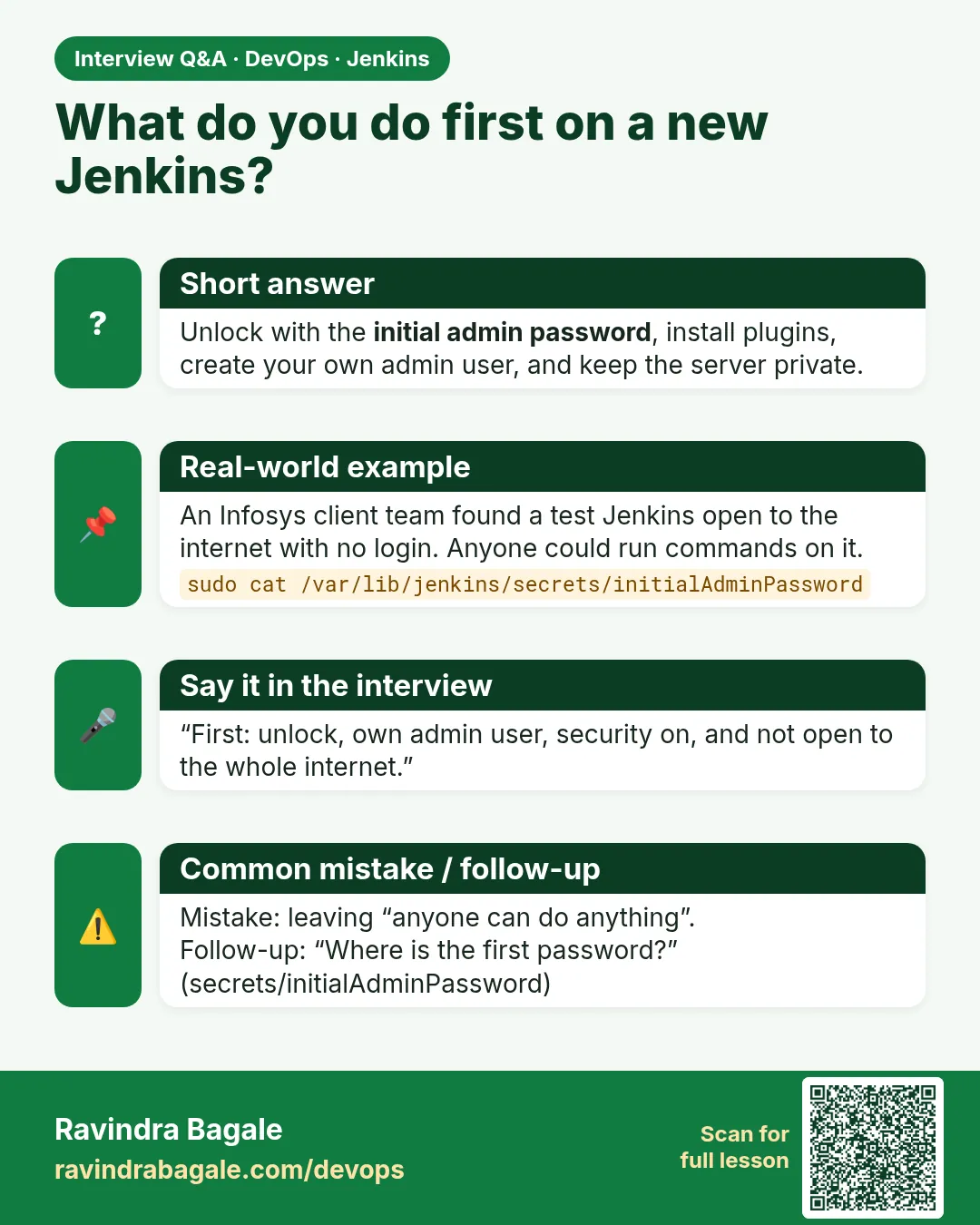

What do you do first on a new Jenkins? Unlock with the initial admin password, install plugins, create your own admin user, and keep the server private.
Interview card 3 of 17: What do you do first on a new Jenkins? · Download PNG · Open card page

Lesson: 20.3 First UI: suggested plugins and safety

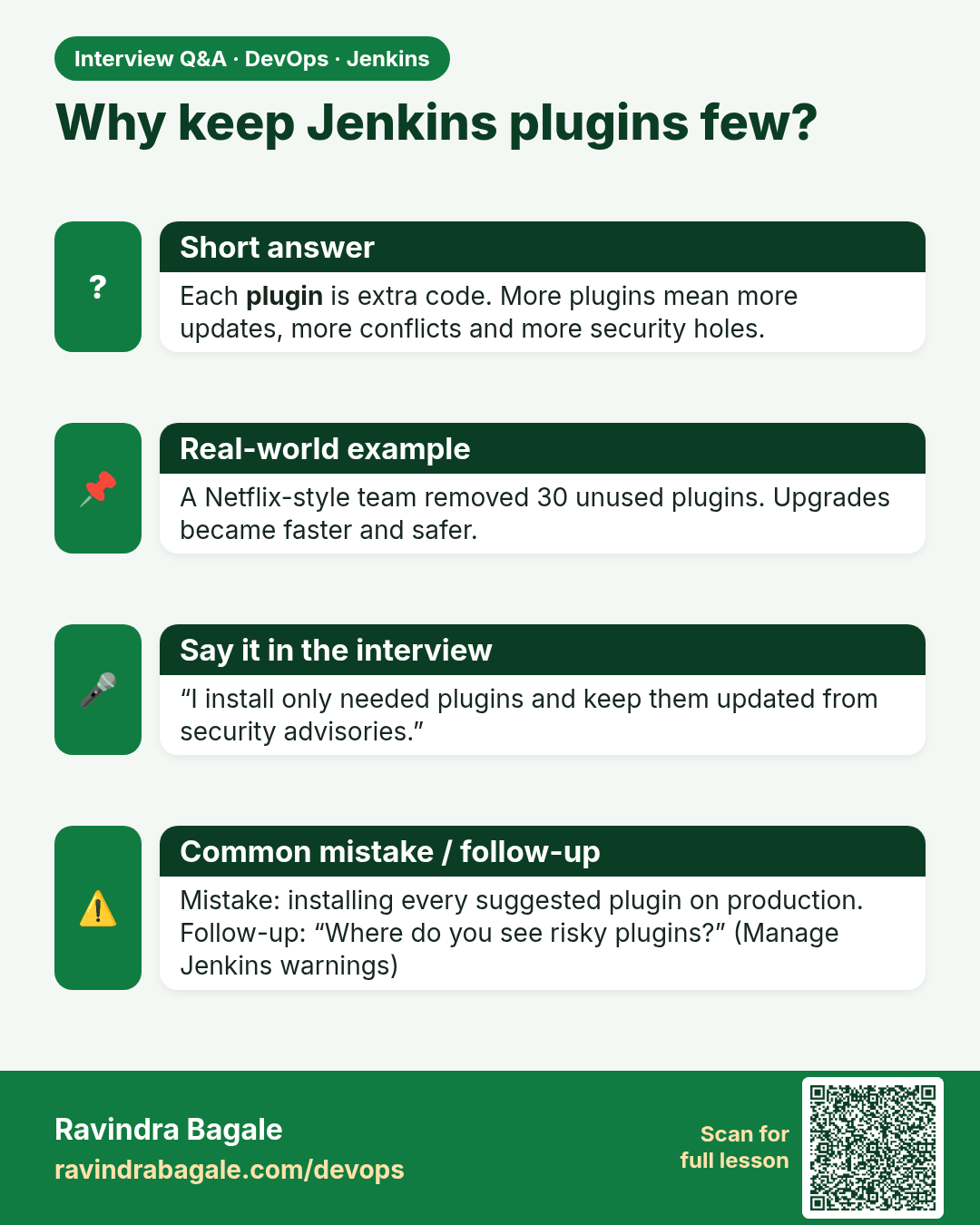

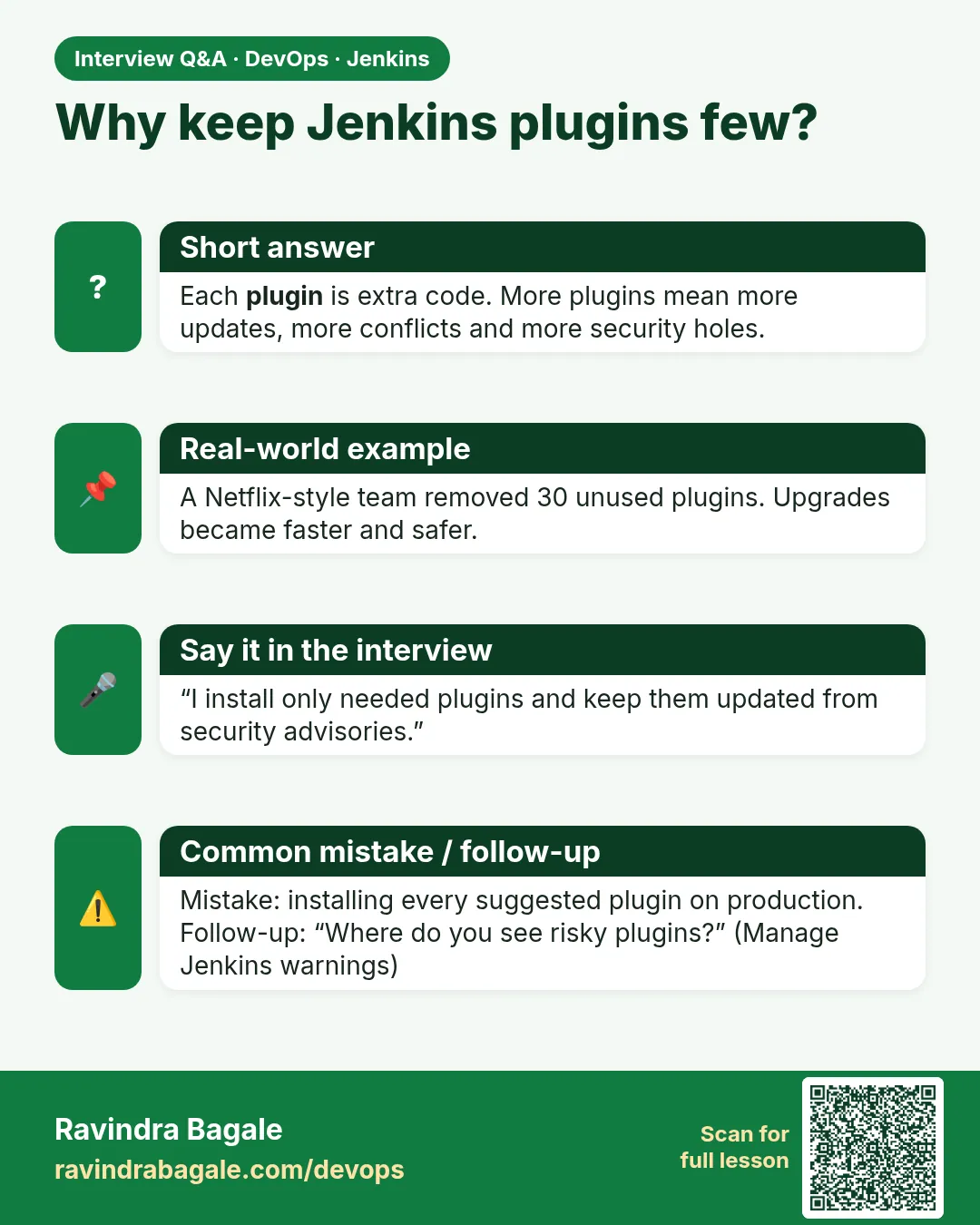

Why keep Jenkins plugins few? Each plugin is extra code. More plugins mean more updates, more conflicts and more security holes.
Interview card 4 of 17: Why keep Jenkins plugins few? · Download PNG · Open card page

Lesson: 20.4 Plugins you actually need for this lab

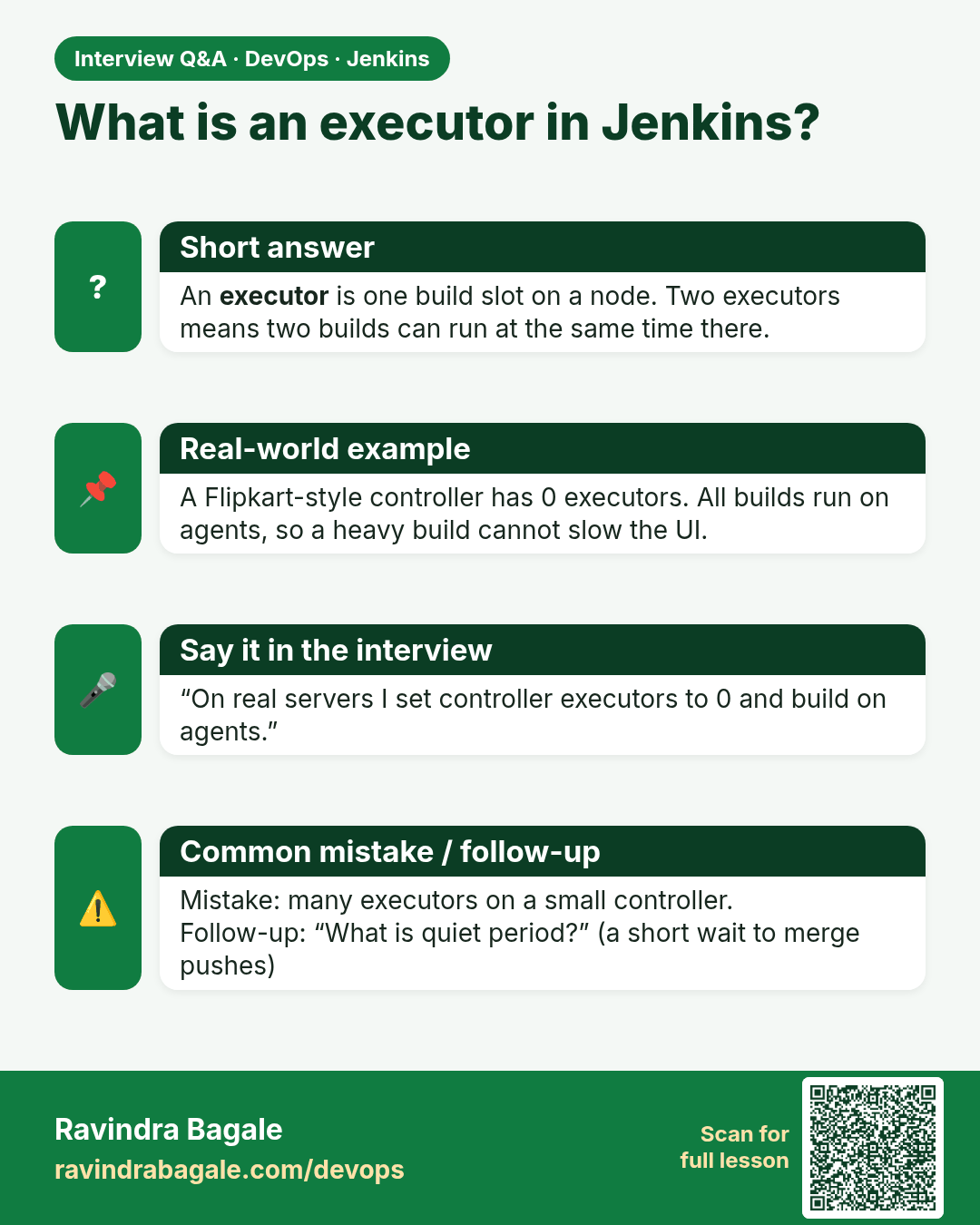

What is an executor in Jenkins? An executor is one build slot on a node. Two executors means two builds can run at the same time there.
Interview card 5 of 17: What is an executor in Jenkins? · Download PNG · Open card page

Lesson: 20.5 Configuration: URL, executors, quiet period

A job says “npm: not found”. What do you check? Check that Node is set in Manage Jenkins → Tools and that the job uses that tool name, or that the agent has Node installed.
Interview card 6 of 17: A job says “npm: not found”. What do you check? · Download PNG · Open card page

Lesson: 20.6 Tools: Git and Node locations

How should a Jenkins job use a Git password or key? Store it in the Credentials store and pick it by ID. Never type it in a job field or script.
Interview card 7 of 17: How should a Jenkins job use a Git password or key? · Download PNG · Open card page

Lesson: 20.7 Credentials for private Git (by ID only)

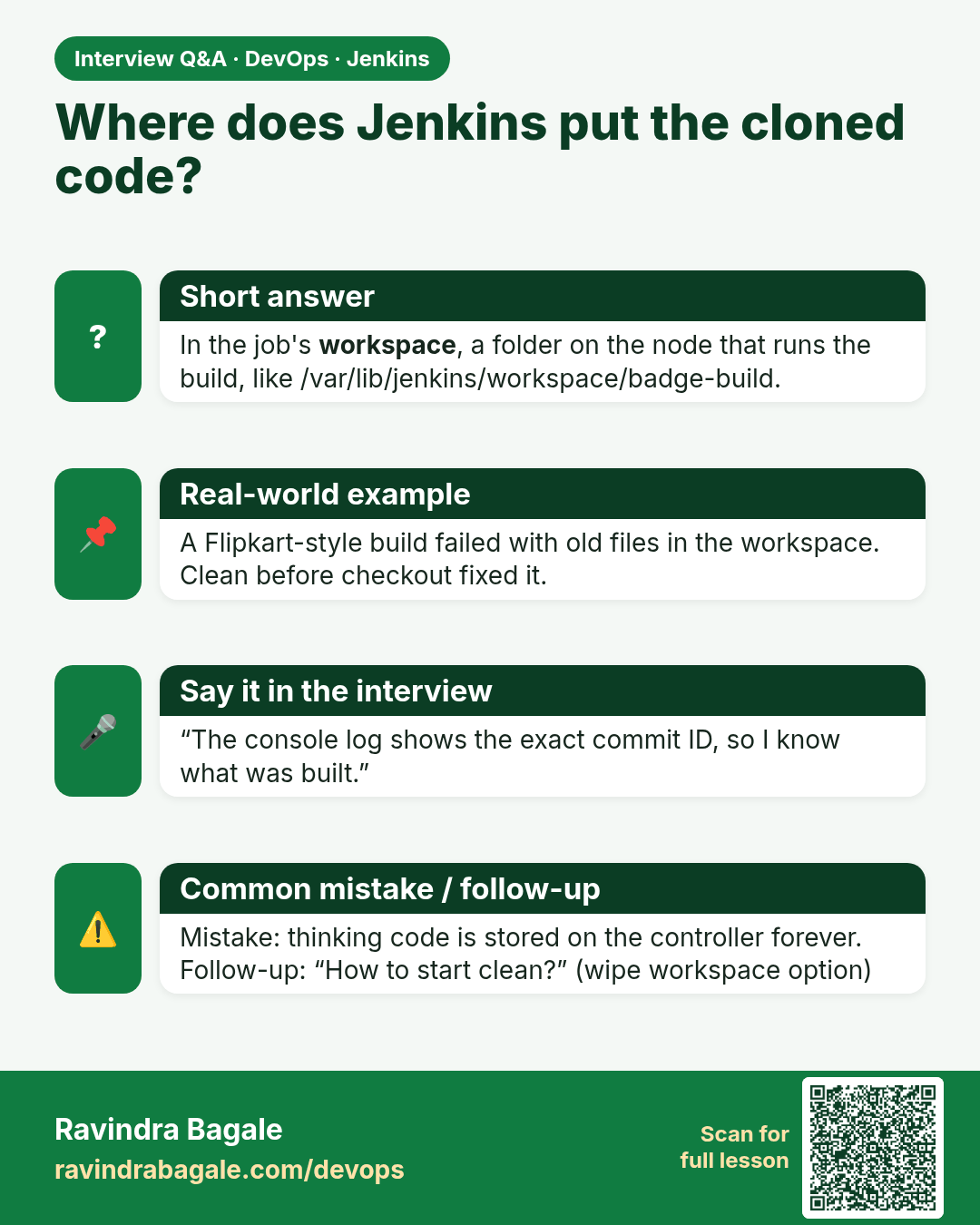

Where does Jenkins put the cloned code? In the job's workspace, a folder on the node that runs the build, like /var/lib/jenkins/workspace/badge-build.
Interview card 8 of 17: Where does Jenkins put the cloned code? · Download PNG · Open card page

Lesson: 20.8 Git integration in a Freestyle project

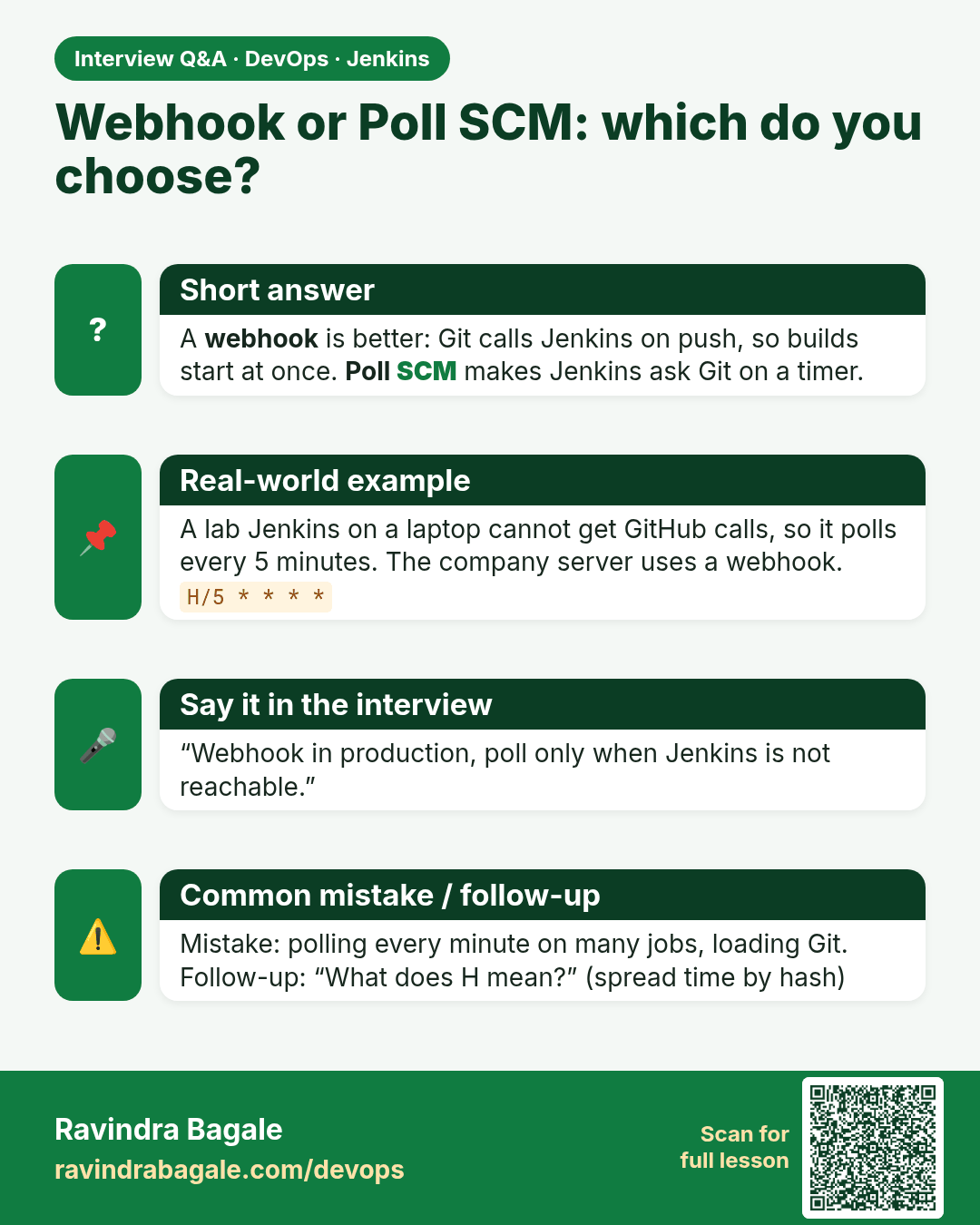

Webhook or Poll SCM: which do you choose? A webhook is better: Git calls Jenkins on push, so builds start at once. Poll SCM makes Jenkins ask Git on a timer.
Interview card 9 of 17: Webhook or Poll SCM: which do you choose? · Download PNG · Open card page

Lesson: 20.9 Webhook vs poll SCM (honest lab)

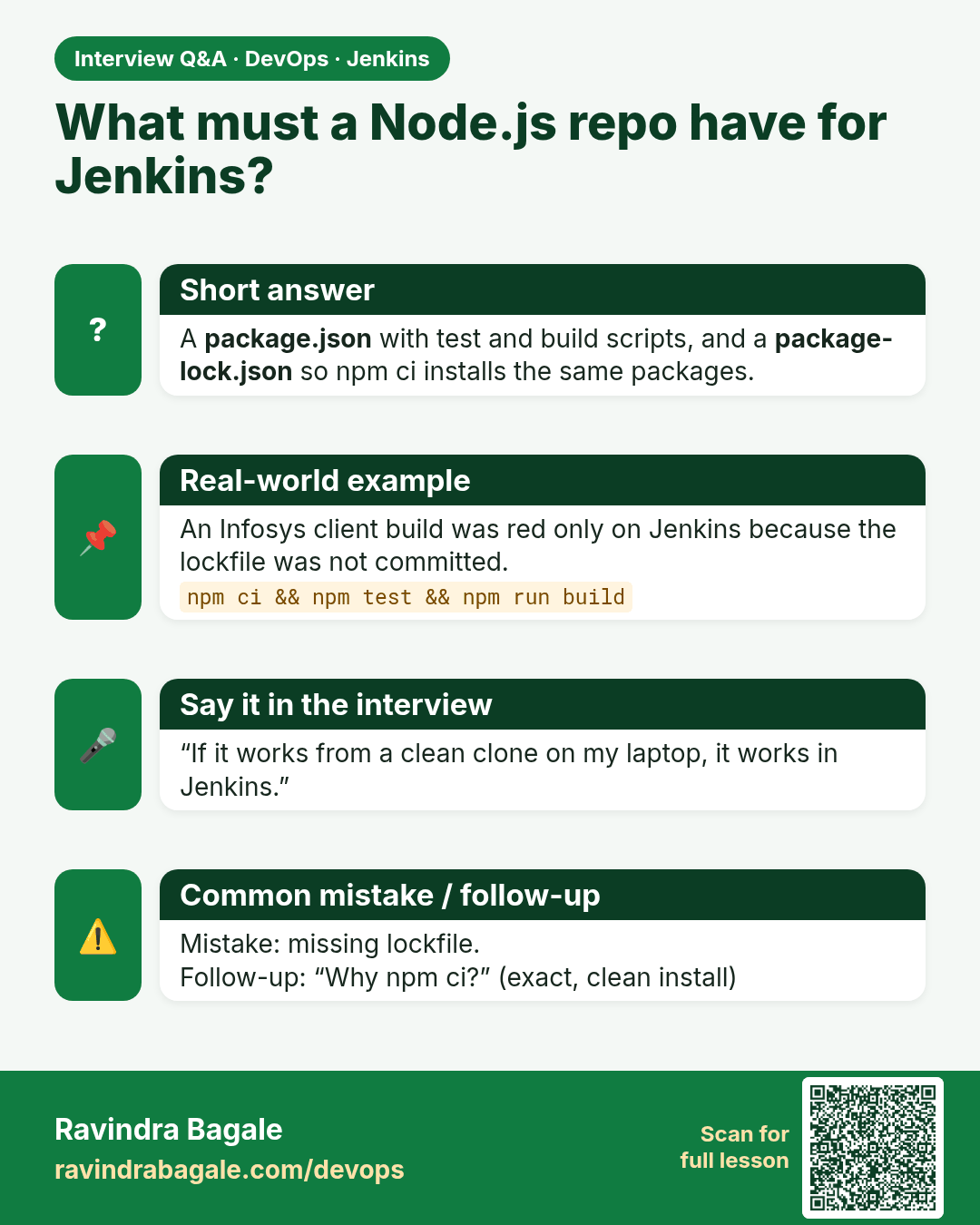

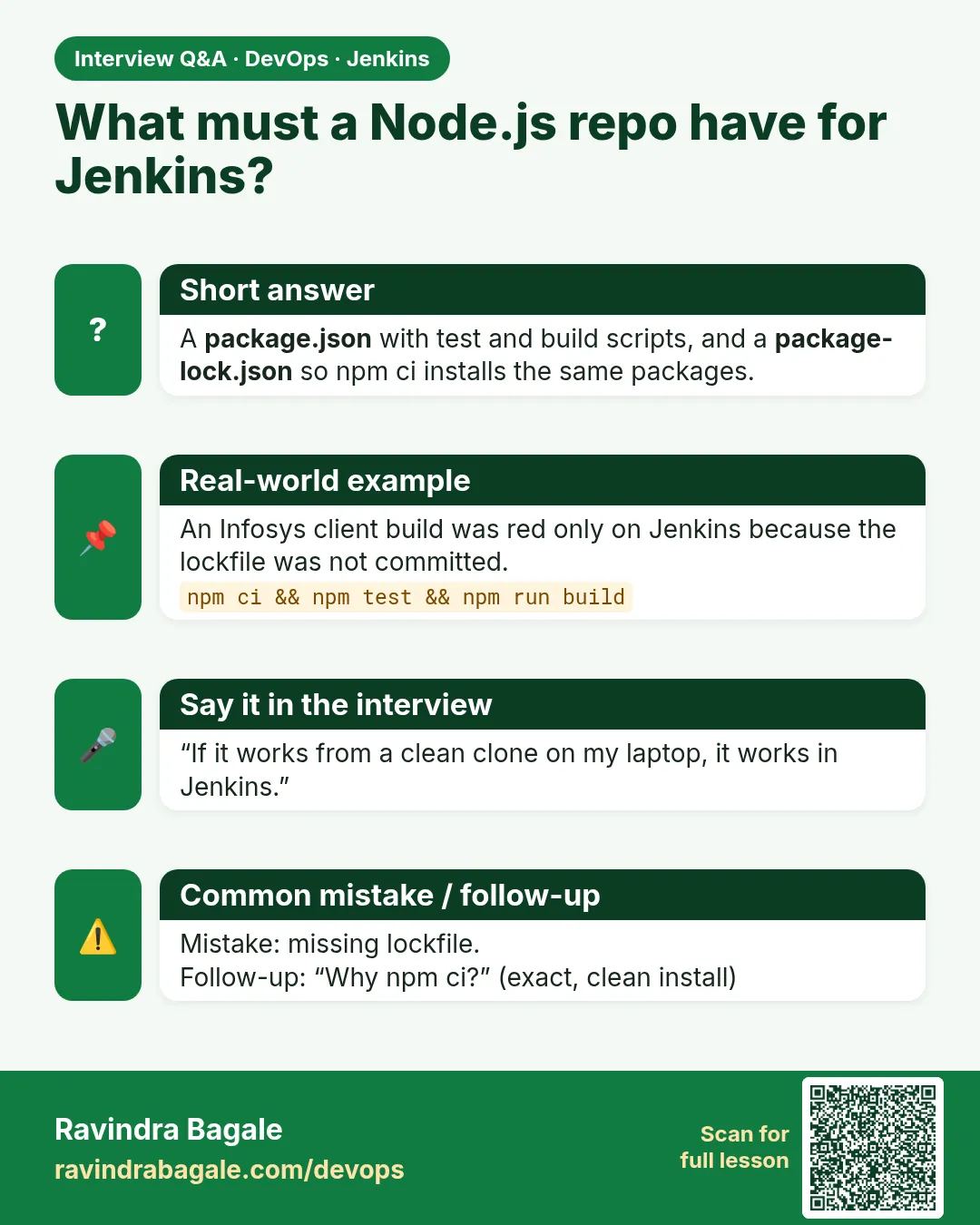

What must a Node.js repo have for Jenkins? A package.json with test and build scripts, and a package-lock.json so npm ci installs the same packages.
Interview card 10 of 17: What must a Node.js repo have for Jenkins? · Download PNG · Open card page

Lesson: 20.10 Tiny Node.js project shape (what Jenkins needs)

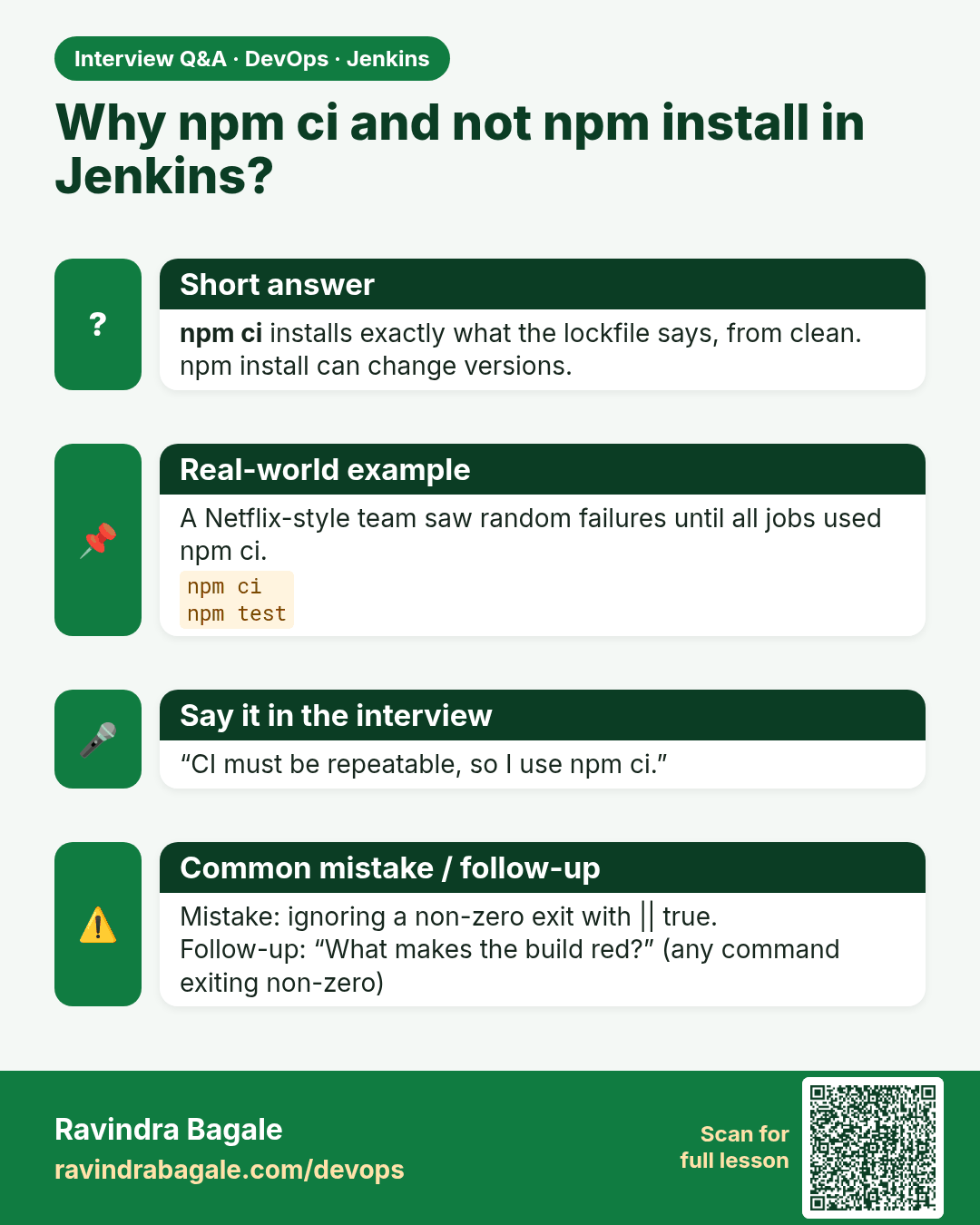

Why npm ci and not npm install in Jenkins? npm ci installs exactly what the lockfile says, from clean. npm install can change versions.
Interview card 11 of 17: Why npm ci and not npm install in Jenkins? · Download PNG · Open card page

Lesson: 20.11 Freestyle build steps — Node.js manual job

A build is red. How do you debug it? Open Console Output, find the first error, check which commit came in, reproduce locally, fix in Git.
Interview card 12 of 17: A build is red. How do you debug it? · Download PNG · Open card page

Lesson: 20.12 Post-build and reading a red build

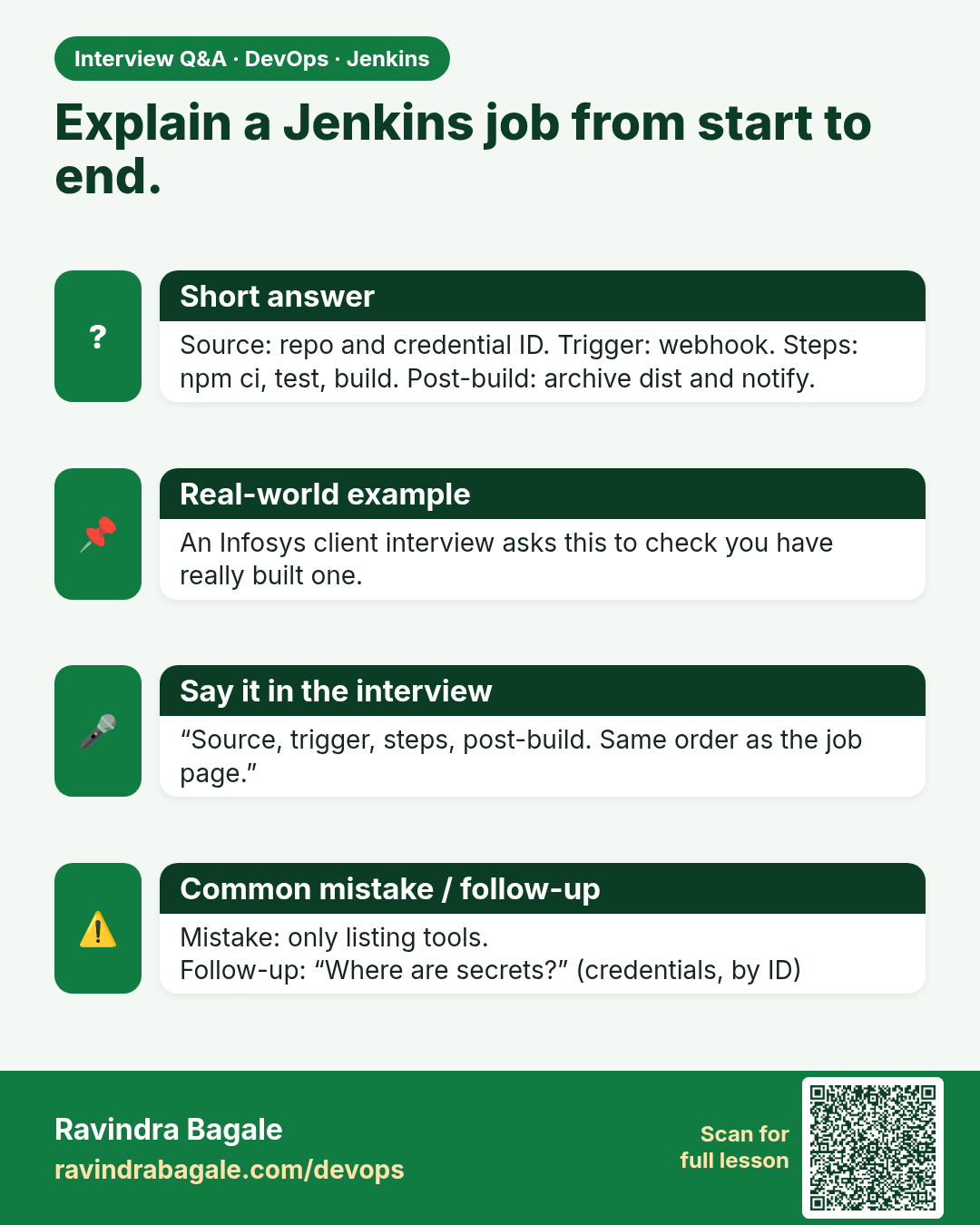

Explain a Jenkins job from start to end. Source: repo and credential ID. Trigger: webhook. Steps: npm ci, test, build. Post-build: archive dist and notify.
Interview card 13 of 17: Explain a Jenkins job from start to end. · Download PNG · Open card page

Lesson: 20.13 Freestyle checklist for interviews

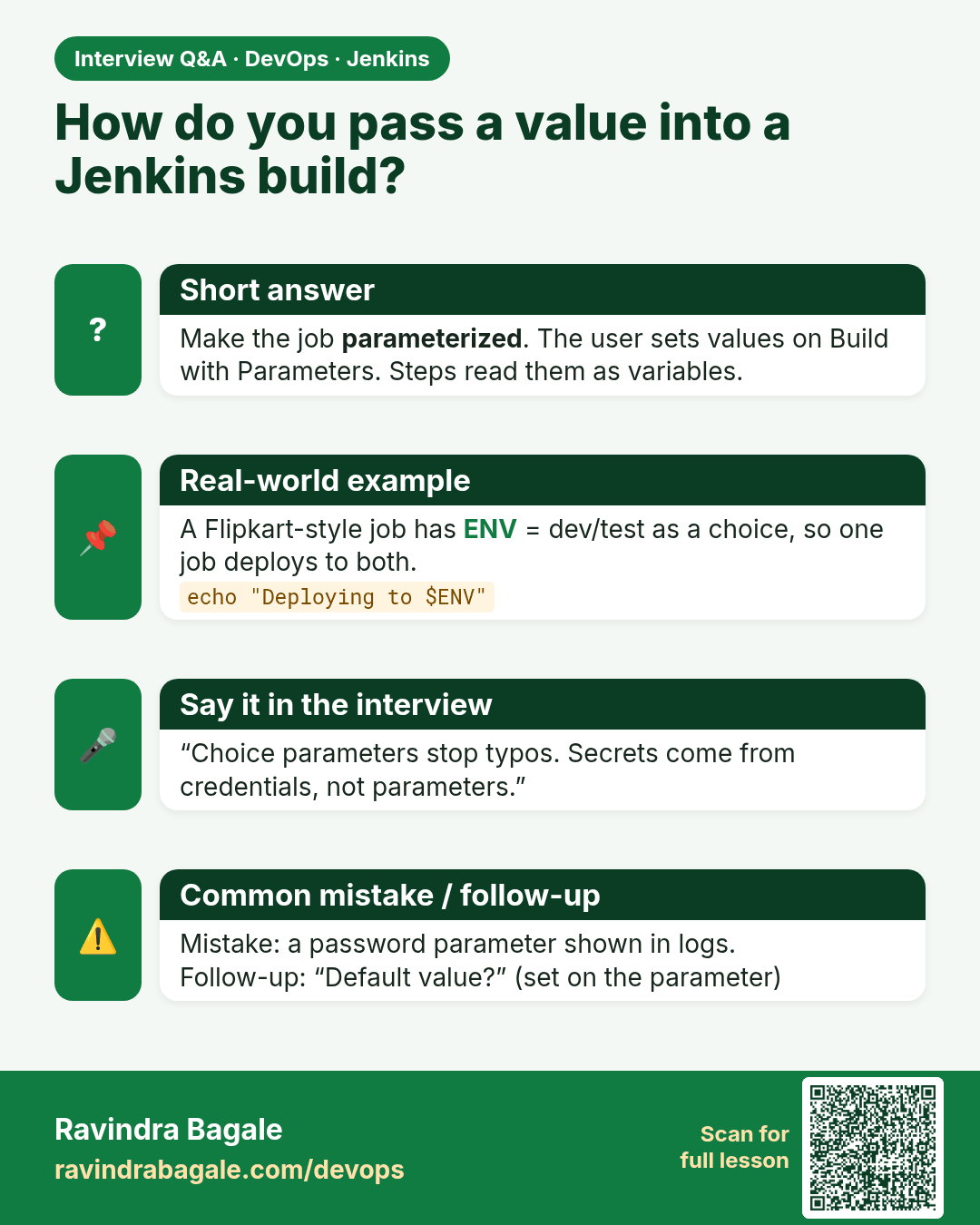

How do you pass a value into a Jenkins build? Make the job parameterized. The user sets values on Build with Parameters. Steps read them as variables.
Interview card 14 of 17: How do you pass a value into a Jenkins build? · Download PNG · Open card page

Lesson: 20.14 Parameters on the Freestyle job

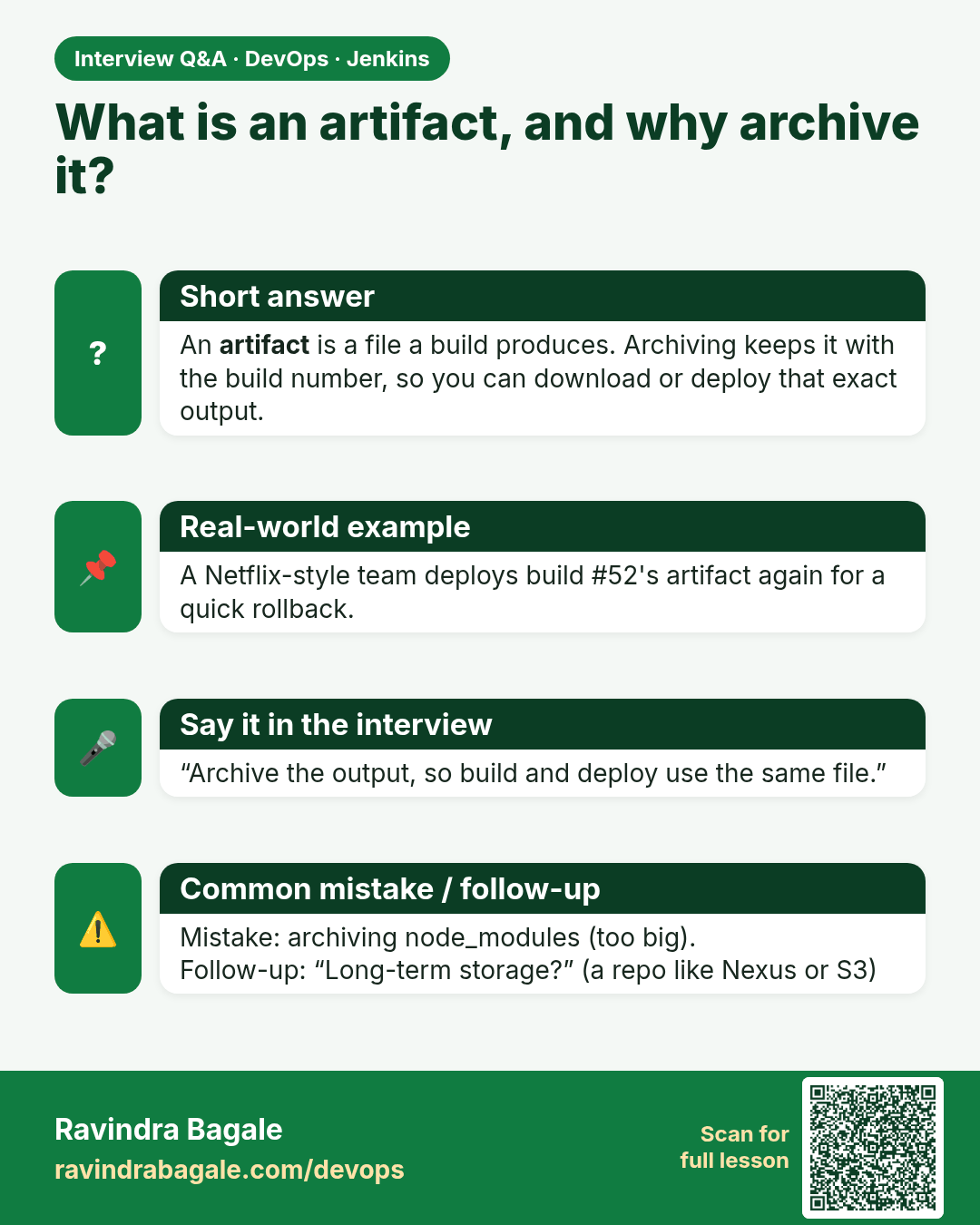

What is an artifact, and why archive it? An artifact is a file a build produces. Archiving keeps it with the build number, so you can download or deploy that exact output.
Interview card 15 of 17: What is an artifact, and why archive it? · Download PNG · Open card page

Lesson: 20.15 Archive and email after the build

What are upstream and downstream jobs? Upstream runs first. When it passes, it triggers the downstream job, like build then deploy.
Interview card 16 of 17: What are upstream and downstream jobs? · Download PNG · Open card page

Lesson: 20.16 Upstream and downstream

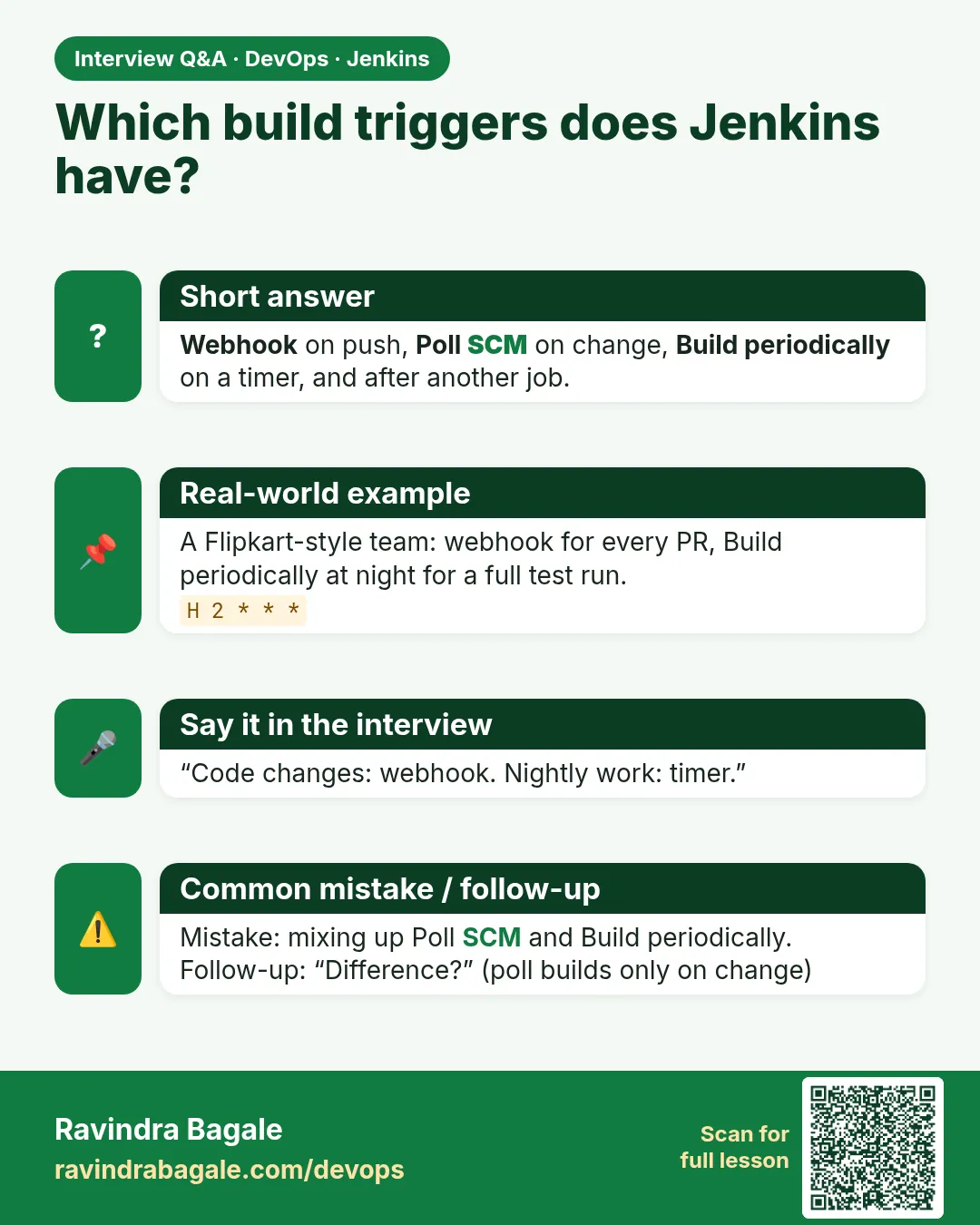

Which build triggers does Jenkins have? Webhook on push, Poll SCM on change, Build periodically on a timer, and after another job.
Interview card 17 of 17: Which build triggers does Jenkins have? · Download PNG · Open card page

Lesson: 20.17 Triggers side by side

Comparison cards

Webhook vs Poll SCM. Two ways to start a build after a push.Webhook: Git calls Jenkins.Poll SCM: Jenkins asks Git on a timer.
Comparison card 1 of 3: Webhook vs Poll SCM · Download PNG · Open card page

Lesson: 20.9 Webhook vs poll SCM (honest lab)

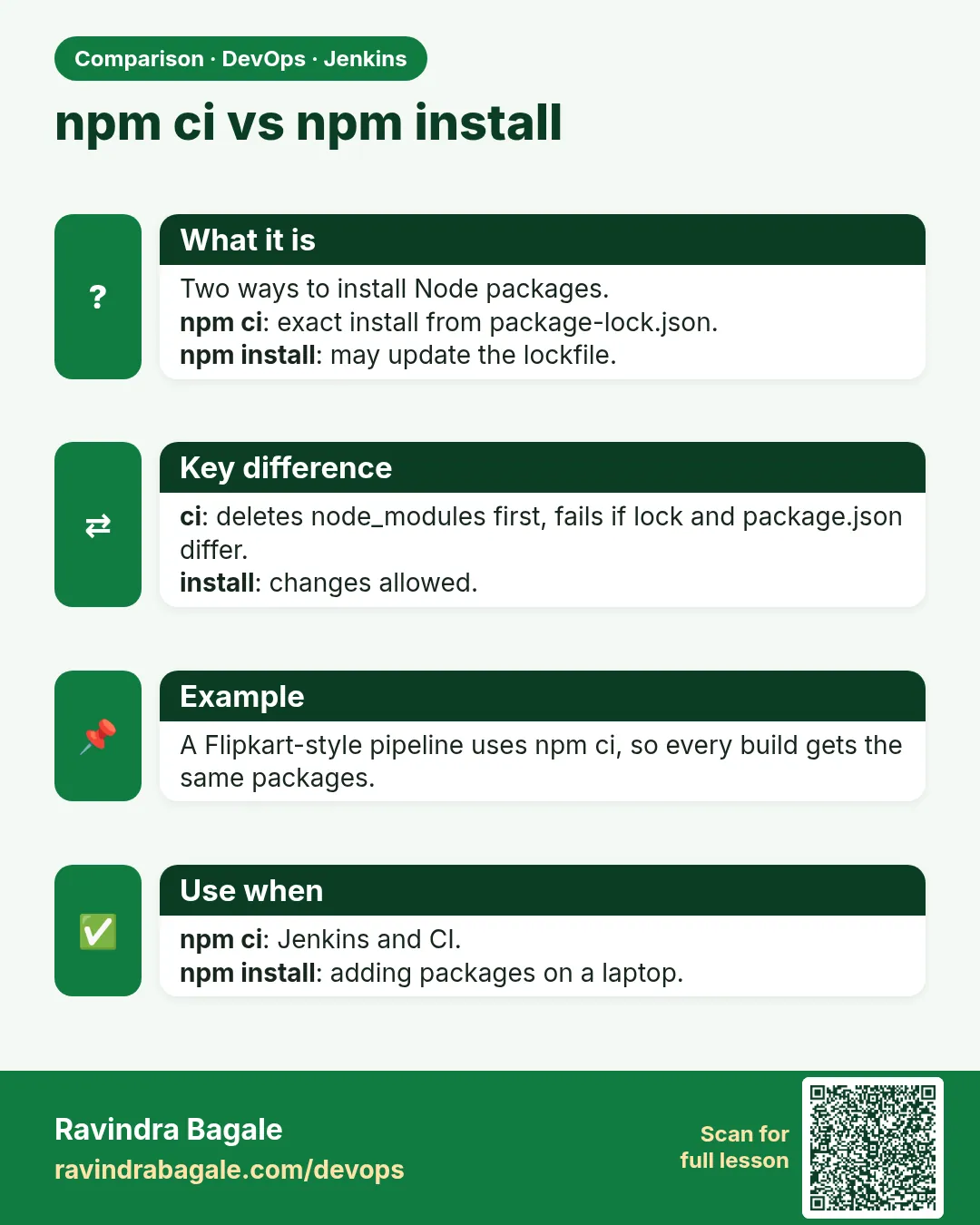

npm ci vs npm install. Two ways to install Node packages.npm ci: exact install from package-lock.json.npm install: may update the lockfile.
Comparison card 2 of 3: npm ci vs npm install · Download PNG · Open card page

Lesson: 20.11 Freestyle build steps — Node.js manual job

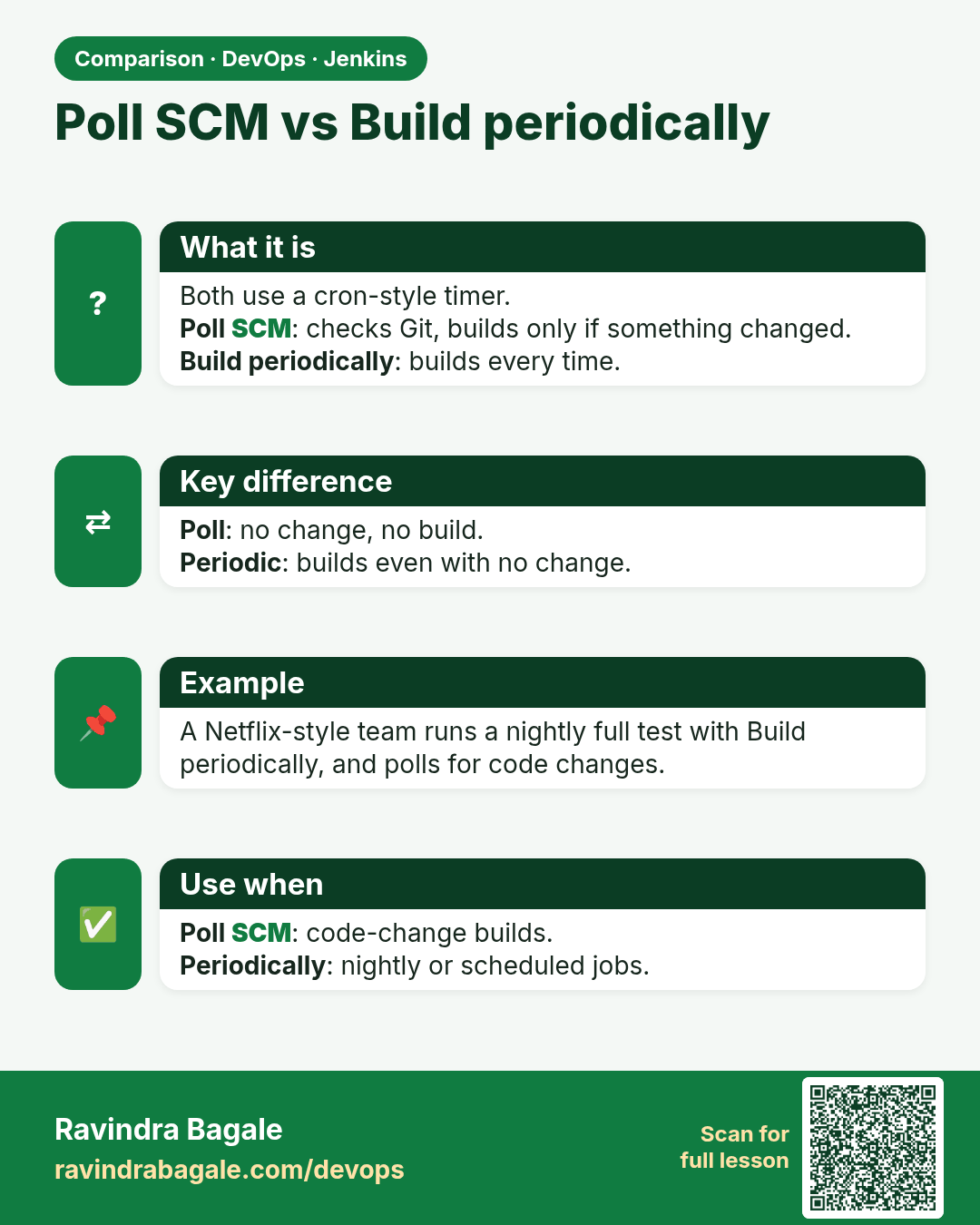

Poll SCM vs Build periodically. Both use a cron-style timer.Poll SCM: checks Git, builds only if something changed.Build periodically: builds every time.
Comparison card 3 of 3: Poll SCM vs Build periodically · Download PNG · Open card page

Lesson: 20.17 Triggers side by side
