Lab: Build a Star Schema – One Sales Fact Table with Date, Product and City Dimension Tables

By Ravindra Bagale · Last updated: 8 October 2026

Suppose we are…

Suppose we are a BI developer at Croma. The first version of our report used one wide table where every order row also carried Region, Category and Brand text. It worked for 24 rows, but with millions of rows it would be slow and hard to change: if "Western Maharashtra" is renamed, millions of rows must change.

A star schema splits this into:

• One fact table (pbi_sales): one row per order, with numbers (Units, Sales, Cost) and keys (OrderDate, City, Product).
• Dimension tables: one row per thing we slice by. pbi_products (Category, Brand), pbi_cities (Region, Manager, Target) and a DateTable (Year, Quarter, Month).

The data is sample data made up for practice.

Goal of this lab

By the end you will have:

• Three loaded CSVs and one DAX DateTable (730 days of 2025 and 2026).
• Three one-to-many, single-direction relationships in Model view.
• A matrix of Category × Year and a table by Region, both adding up to 1,302,000.

What you need (all free)

• Power BI Desktop.
• Download pbi_sales.csv (fact, 24 orders)
• Download pbi_products.csv (4 products)
• Download pbi_cities.csv (4 cities)
• 40 minutes.

The data: before and after

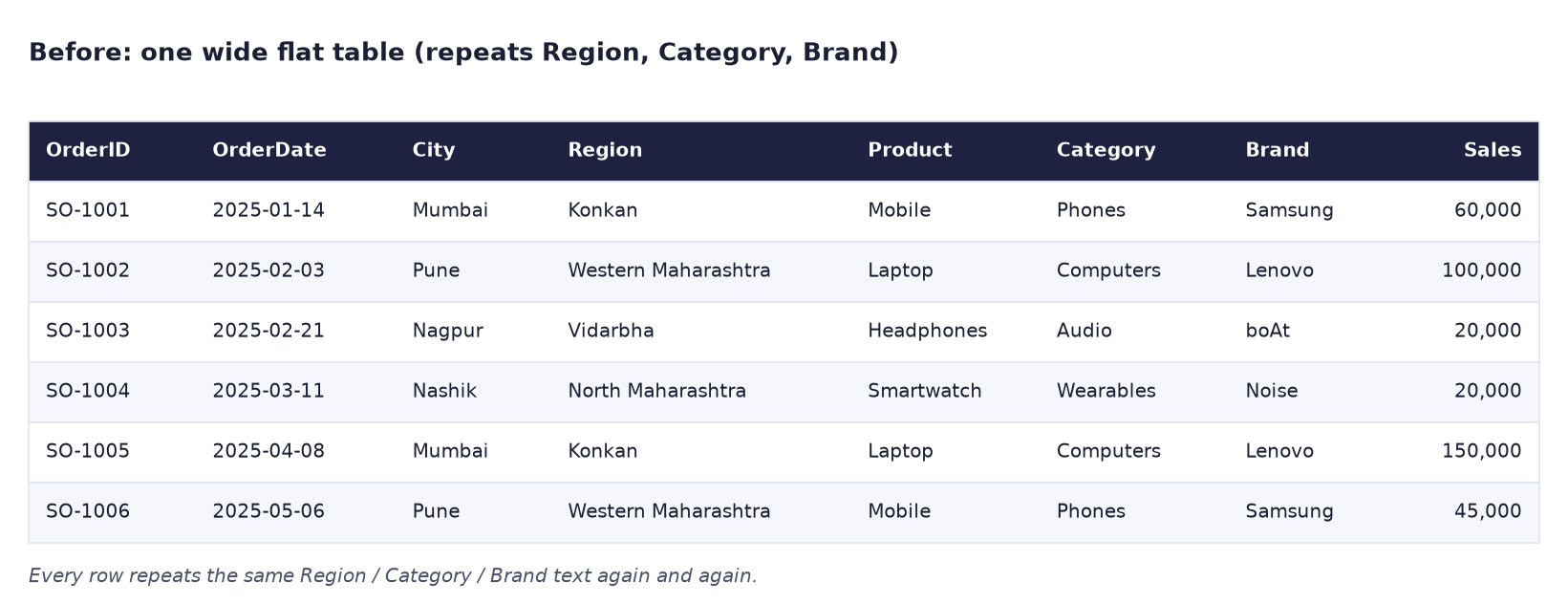

Before. One flat table repeats the same Region, Category and Brand text on every row.

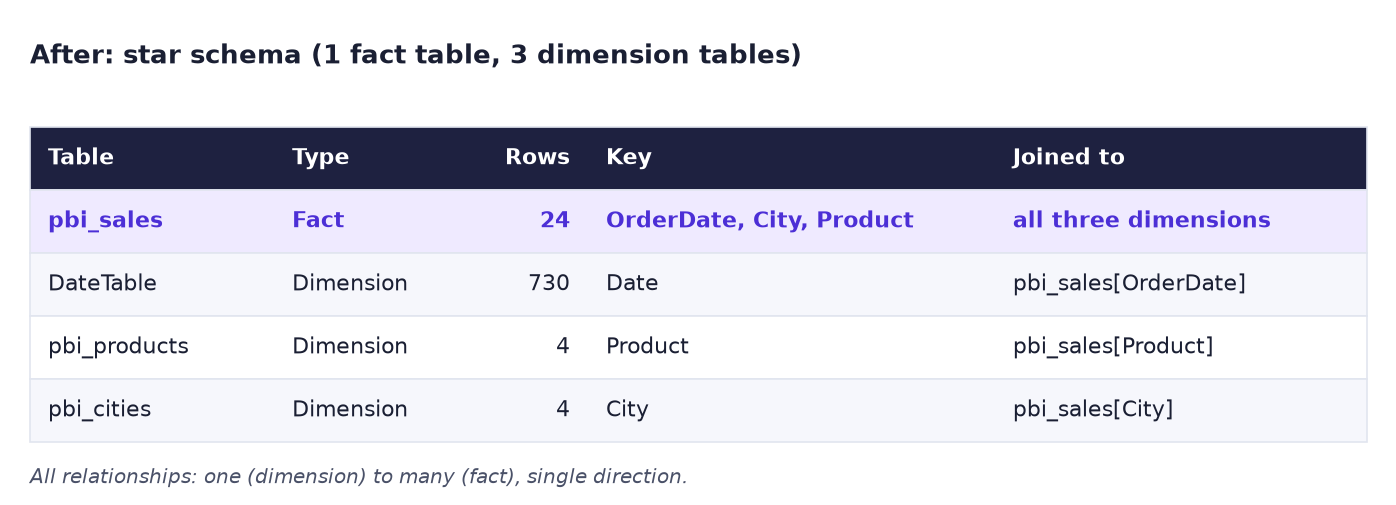

After. One fact table in the middle and three small dimension tables around it.

The formula

The date table is one DAX formula. It makes one row per day and adds the columns we want to slice by:

DateTable =
ADDCOLUMNS (
    CALENDAR ( DATE ( 2025, 1, 1 ), DATE ( 2026, 12, 31 ) ),
    "Year", YEAR ( [Date] ),
    "Quarter", "Qtr " & QUARTER ( [Date] ),
    "Month No", MONTH ( [Date] ),
    "Month", FORMAT ( [Date], "MMMM" )
)

• CALENDAR ( start, end ) returns a one-column table called Date with every day in between: 365 + 365 = 730 rows.
• ADDCOLUMNS adds Year, Quarter, Month No and Month to each day.

And the measure we use everywhere from now on:

Total Sales = SUM ( pbi_sales[Sales] )

A relationship works like a VLOOKUP that is always on: each order row "looks up" its product, its city and its date in the dimension tables. Filters flow from the one side to the many side, that is from the small table to the fact table.

Steps

1. In a blank report, load the three CSVs one by one: Get data → Text/CSV → (file) → Load, for pbi_sales.csv, pbi_products.csv and pbi_cities.csv.

   👁 What you should see: three tables in the Data pane.

2. Click Model view (third icon on the left). Arrange the boxes so that pbi_sales is in the middle.

   👁 What you should see: Power BI may already have drawn lines from pbi_products and pbi_cities to pbi_sales (it auto-detects columns with the same name). If not, drag pbi_products[Product] onto pbi_sales[Product], and pbi_cities[City] onto pbi_sales[City].

3. Go to Report view. Click Modeling → New table, paste the DateTable formula above and press Enter.

   👁 What you should see: DateTable in the Data pane with Date, Year, Quarter, Month No and Month. In Table view it shows 730 rows.

4. In Table view, select DateTable and click Table tools → Mark as date table. Choose the Date column and click OK (or Save).

5. Still in Table view, select the Month column and click Column tools → Sort by column → Month No. This keeps January before February instead of alphabetical order.

6. Go to Model view and drag DateTable[Date] onto pbi_sales[OrderDate].

   👁 What you should see: a new line from DateTable to pbi_sales with 1 on the DateTable side and * on the pbi_sales side.

7. Double-click each of the three lines to check them: Cardinality: Many to one (*:1) (seen from pbi_sales) and Cross filter direction: Single. Click OK or Cancel.

8. In pbi_sales, hold Ctrl and click City, Product and OrderDate. Right-click → Hide in report view. Report builders should use the dimension columns instead.
9. Right-click pbi_sales → New measure: Total Sales = SUM ( pbi_sales[Sales] ).

10. In Report view, add a Matrix: Rows = pbi_products[Category], Columns = DateTable[Year], Values = Total Sales.

    👁 What you should see: Audio 48,000 / 24,000; Computers 450,000 / 300,000; Phones 255,000 / 135,000; Wearables 65,000 / 25,000. Column totals 818,000 (2025) and 484,000 (2026); grand total 1,302,000.

11. Add a Table with pbi_cities[Region] and Total Sales.

    👁 What you should see: Konkan 439,000, Western Maharashtra 346,000, Vidarbha 260,000, North Maharashtra 257,000, Total 1,302,000.

12. Save as Lab-11-star-schema. Later labs (hierarchies, maps, drill-through, RLS) start from this file.

Common mistakes

Self-check checklist

Try-at-home challenge

Using only the model (no new measures), find Pune's sales by Brand. Then explain in one sentence how the filter travels from pbi_cities to pbi_products.

Samjla ka? One fact in the middle, dimensions around it, one-to-many and single direction. Aata pudhe jaauya: add a Year › Quarter › Month hierarchy and group cities into regions.
